Digital Sputnik DS 1 Assembly Manual

DS 1 Assembly
digitalsputnik.com

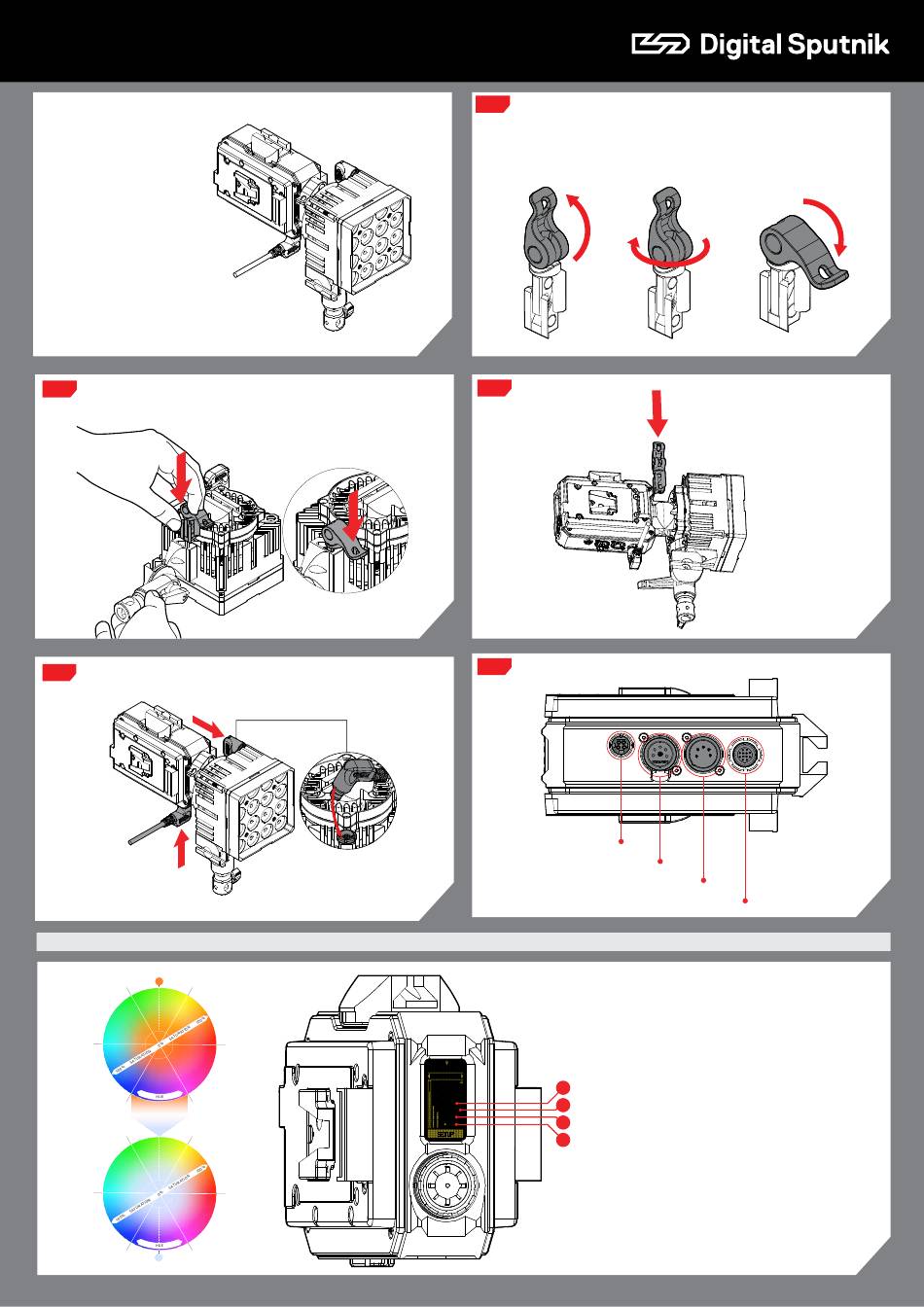

This guide helps You to
assemble one module light
fixture and also explains the
basis of the Controls
FIG 2
SLIDE
FIG 4
CONTROLS
1500 K
GREEN (120°)
YELLOW (60°)
CYAN (180°)
BLUE (240°) MAGENTA (300°)
WHITE POINT CAN BE CHANGED FROM 1500 K TO 10000 K
GREEN (120°)
YELLOW (60°)
CYAN (180°)
BLUE (240°) MAGENTA (300°)
10000 K
INSERTING AND LOCKING
THE LIGHT MODULE LOCK
PUSH LOCK
CONNECTING THE LIGHT MODULE
AND DIMMER WITH CABLE
RED (0°)
RED (0°)
FIG 1
LOCK
OPEN/LOOSE
FIG 3
SLIDE
FIG 5
DC (12-36 V)
FIG 2
All Color DS fixtures are driven by 4 Controls:
1. Intensity (0-100%)
2. Temperature (1500K-10000K)
3. Saturation (-100% - 100%)
If Hue is 120° (default value) then Saturation acts as +/- green
COLOR
ALL
4. Hue (0°-360°)
1
0° Red / 60° Yellow / 120° Green / 180° Cyan / 240° Blue /
2
0%
300° Magenta
56OOK
O% 3
0
SETUP
4
To move around the menu rotate the wheel button.
It's possible to change the value of a parameter by
pressing on the wheel button and then rotating it.
After the value is changed press the wheel button again
to confirm the value. In the SETUP menu it's possible to
change the module and remote settings.
LOCK LOCK
TIGHTEN CLOSED/TIGHT
CONNECTING DIMMER AND
DMX out
DMX in
Ds Light Module
LIGHT MODULE
CONNECTORS
