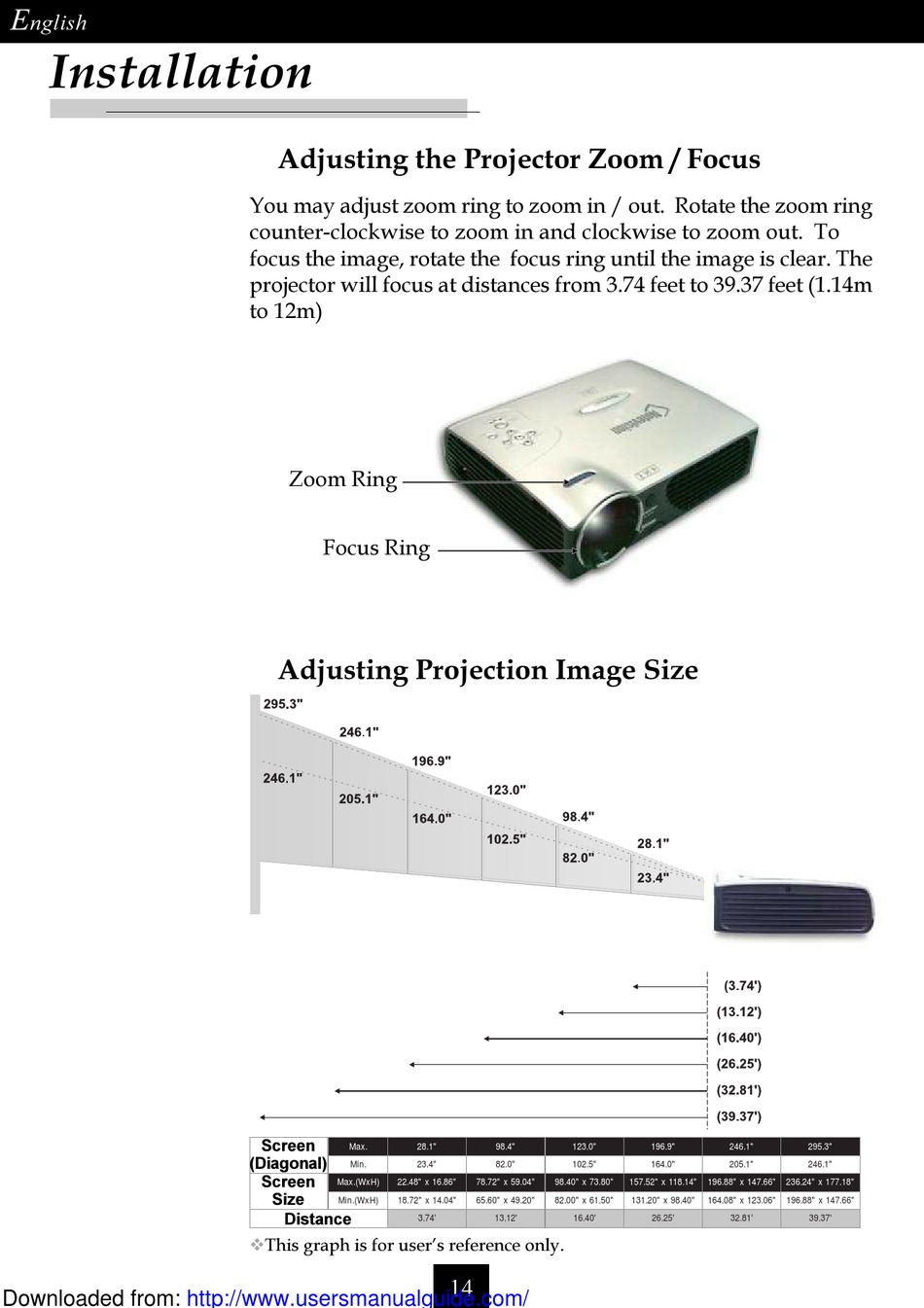

Adjusting the Projector Zoom / Focus
You may adjust zoom ring to zoom in / out. Rotate the zoom ring
counter-clockwise to zoom in and clockwise to zoom out. To
focus the image, rotate the focus ring until the image is clear. The
projector will focus at distances from 3.74 feet to 39.37 feet (1.14m
to 12m)
Zoom Ring
Focus Ring
Adjusting Projection Image Size
Screen
M
a
. x
(Diagonal)
M
. n i
Screen
M
a
( . x
W
Size
M
n i
( .
W
Distance
vThis graph is for user’s reference only.
