Hiddenbed
TM

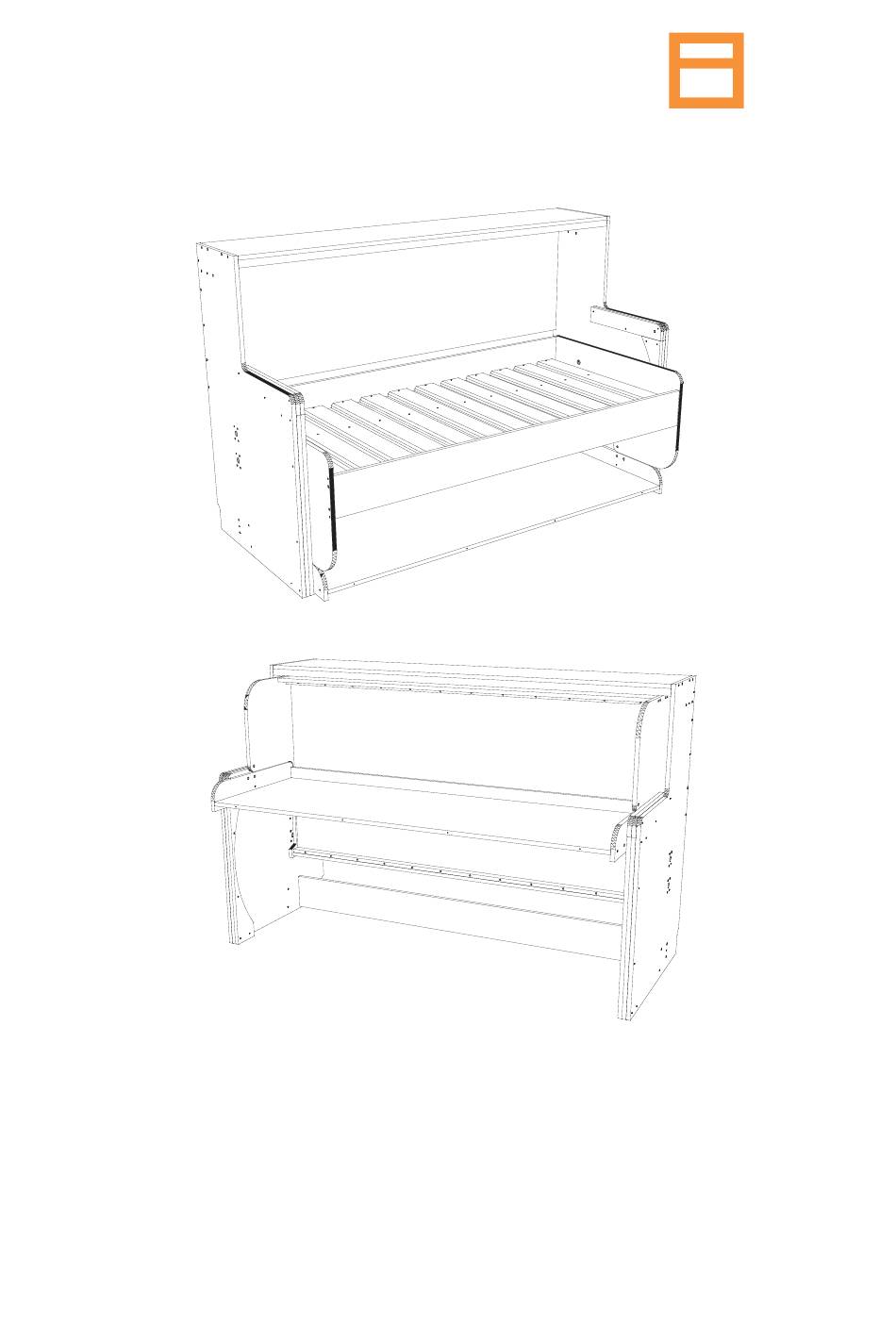

ASSEMBLY INSTRUCTIONS
MODEL SPLENDID
www.hiddenbed.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPLENDID and is the answer not in the manual?

Questions and answers

Related Manuals for Hiddenbed SPLENDID

Summary of Contents for Hiddenbed SPLENDID

  • Page 1 Hiddenbed ASSEMBLY INSTRUCTIONS MODEL SPLENDID www.hiddenbed.com...
  • Page 2 CONGRATULATIONS! YOU ARE A PROUD OWNER OF HIDDENBED The ultimate furniture that Doubles your Space Please read carefully the Assembly Instructions. Should you have any questions please contact our authorized dealer: For further information please check www.hiddenbed.com...
  • Page 3 Follow these simple steps to assemble your Hiddenbed Put them together Assemble the 3 main parts Put the mattress in its place. LOOK, YOUR HIDDENBED IS READY!
  • Page 4 MAIN PARTS &CARPENTRY LIST BODY PARTS COMPONENTS 1a+1b 2a+2b BED PARTS COMPONENTS DESK PARTS COMPONENTS...
  • Page 5 Use the lock placed at the desk side to safe use in bed and desk position. WARNINGS (!)Like a sliding door or a car door or a bike, you have to do certain things to enjoy Hiddenbed Safely and reliably. Pay attention to theses recommendations!
  • Page 6 MECHANISM KIT LOWER MECH ARM GAS SPRING LOWER SUPPORT COTTER PLATE 1100N/1300N SUPPORT BEARER LINK PIVOT 2 Pcs 2 Pcs 2 Pcs 2 Pcs 2 Pcs 2 Pcs 2 Sets ADITIONAL SAFETY DEVICE TRUNNION BUSHING & SCREW LOCK LOCK BUSHING WASHERS 2 Sets 2 Pcs...

  • Page 7: Body Assembly

    BODY ASSEMBLY Arm pin outer Arm pin inner position for more position for less load on table load on table RIGHT SIDE SHOWN Do the same with left side symmetrically Attach the gas spring end to pin (A4), putting Cotter pin the same number of washers (A11) at the both sides of gas blade to reduce lateral play, insert cotter pin (A5) and bend ends.
  • Page 8 Attach bed stop(19) to body side(1) using dowels and screw H12 dowels Attach top stretchers (5) to top pannel (4) using dowels and screws H20. Attach structural tube (6) to top pannel (4) using screws H13.
  • Page 9 Attach body sides (1) to bottom strectcher (2) and top stretchers (3) fixed using dowels and screws H2. DOWELS...

  • Page 10: Desk Assembly

    DESK ASSEMBLY Attach desk back (9) to desk top (7) with screws H2 Screw wood plugs (WP) to inner side of desk sides(8). Attach one of the desk sides(8) to the desk top(7) using dowels and screws H2. Then insert wood plug(WP) into the desk stiffener.
  • Page 11 Attach the other desk side to the desk top using dowels and screws H2 and inserting the wood plug into the desk stiffener. Attach tube cover(18) to desk top(7) using screws H13. Attach the tribearer(A6) to the desk sides(8) using screw H6.

  • Page 12: Bed Assembly

    BED ASSEMBLY Attach front rail (10) and rear rail (11) to bed heads (8) with dowels and screws (H2). Be careful, put cleats inside. Perforations for slats should be pointing bed up. (Down in sketch position!!) Slats and slats cover must be attached to the bed after the bed was attached to the body side.
  • Page 13 Put bed heads bearing on desk sides carefully, aligning holes (see detail in sketch STEP 2) provided for link bushings. In both sides in turn, place place from outside the link pivot set into link holes as shown. Slighty displacing or rising the bed as required to push the link in place.
  • Page 14 Place the bed cover over the slat cleat. Pull all screws (H10) through the bed slats (12) and through bed cover (9) to screw in slat cleat. Attach the concealers to the body side. The bottom part should be attached after the mechanism arm is placed in the tribearer to ease the positioning of the arm.
  • Page 15 Lift the bed slowly, talking care of keeping the desk in horizontal position. Once in upper position, lock the desk by pushing in the Lock at both sides. PUSH IN TO LOCK CAUTION! 1- EXTRA STRENGTH REQUIRED We recommend to sit on the floor and pull strongly 2- TAKE CARE OF YOUR FINGERS Do not put fingers in the hook.

  • Page 16: Proper Use

    It is important to lock the locking device after the transformation and before the use of the desk or the bed. Hiddenbed System is based on a desk/bed balance. Unbalanced system may result on having to apply extra force when transforming from bed to desk and vice versa.

  • Page 17: Safety Precautions

    Attach the Hiddenbed´s body to the wall using the brackets and proper wall anchors. A QUALIFIED PERSON SHOULD FIX THE HIDDENBED TO THE WALL. THE FLOOR (LEVELING AND RESISTANCE) , THE WALL (LEVELING AND RESISTANCE) AND THE FIXING (SCREWS AND ANCHORS ACCORDING TO THE WALL MATERIAL) MUST BE VERIFIED IN ORDER TO GET A SECURE FIXATION.
