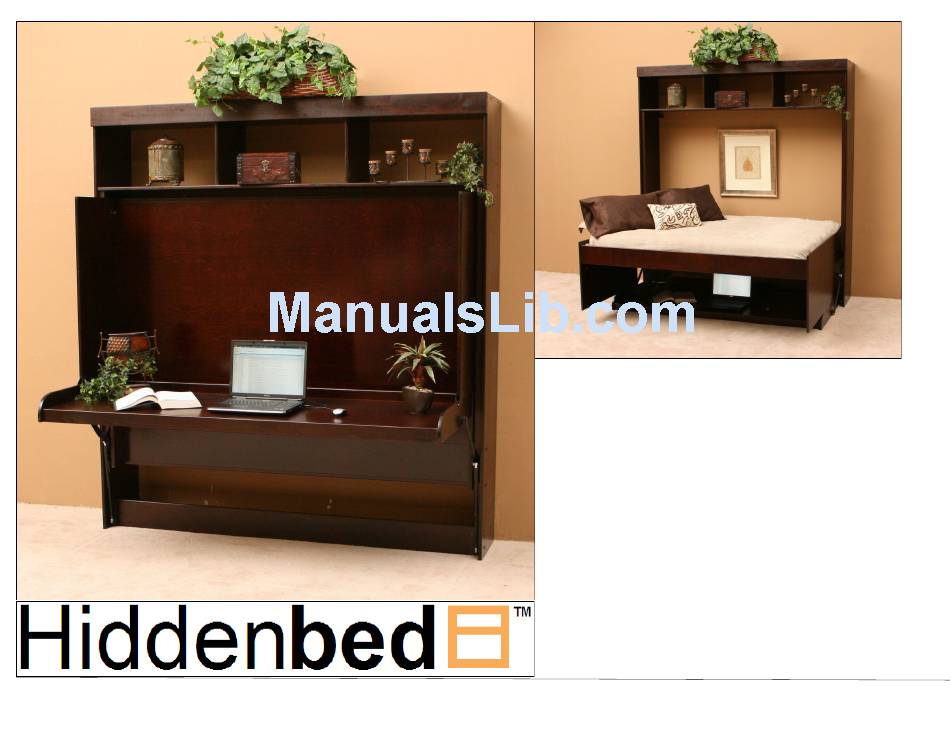

- Page 1 Model AW50 QUEEN Installation Instructions Please keep these instructions for future reference. Hiddenbed must be dis-assembled before moving. WALLBEDS! a product of...
-
Page 2: Cabinet Assembly
CABINET ASSEMBLY Set up lever arm assembly on side panels by cutting ties, rotating arm to the upper position and connecting loose end of piston to bracket at bottom of leg with cotter Attach Hutch Shelf with Lag Bolts pin and key provided. Secure the cotter pin by bending keeping finished edges to front. - Page 3 ADJUST THE CROWN POSITION Assemble vertical partitions between crown and top panel, shelf holes towards sides, with lag bolts. Attach Adjust the crown lower position so that the strong back top panel is level between and straight. The top sides panel alignment will with be determined by the...
- Page 4 PILLOW BOX Headboard Assembly Attach pillow box assembly to the cabinet towards the back using two INSTALLING THE LID- comformat screws on each side between the cabinet sides. Shown Using one comformat screw on each end of the lid with a washer placed between lid and the bed side as a spacer.
- Page 5 MATTRESS TRAY ASSEMBLY Mount Tray Ends to Tray with Lag Bolts. Caution: The tray ends are left and rights, so when installing, be sure each tray end is mounted to the tray with lag bolts so that the thicker lid- ded side of the bushing is facing to- wards the tray, not away.
- Page 6 DESK TRAY ASSEMBLY Place desk tray vertically on mattress tray assembly and attach with triangle hinge plates, sleeves & bolts on both ends. Loosen assembled sleeve & bolts to plate, insert in holes, attach remaining bolts, then tighten all. Attach Black locking assembly to the inside on the bed end panels in holes provided, using screw.
- Page 7 CONNECTING DESK TRAY TO MATTRESS TRAY bearer assembly Attach bearer assembly (bolt, bearer through wood to T-nut, reversed so tangs point away from wood) to each end of the desk. Tighten firmly, but leave enough slack to slightly adjust the position later. DO NOT apply screws to the flange holes now.
- Page 8 ATTACHING DESK/BED TRAY TO THE CABINET Roll the entire assembly over so the desk bottom is on the floor and the mattress bed tray is facing up. Slide the DESK/BED tray into the standing cabinet. Line up the trunion hole in the bed tray with the connecting threaded hole at the upper end on the lever arm bracket mounted to the side...
- Page 9 One lever arm at a time may be released for the top assembly. Move the screw access. Hiddenbed to the desired location and lift and lock the INSERT MATTRESS- bed in the up position.
- Page 10 WARNING: NEVER TRY TO FOLD UP THE DESK SURFACE AS YOU CAN DAMAGE THE BED. USE TIPS This product is designed to hold mat- tresses up to 10” thick. Lift pistons should never be lubricated Movement will be affected by the weight on the work surface.
