SkidWeigh ED2-AT: Quick Reference Calibration & Operation Guide
Hydraulic Forklift Scale with Accumulative Total

SkidWeigh ED2 Calibration Guide

Note: Before beginning the calibration procedure you will need a load with a known weight suited to the
forks or attachments on the lift truck and a paper clip to access the (M) and the (Arrow Up) buttons.
Step 1.: With the lift truck turned on and the forks empty to the floor with no pressure in the hydraulic
system use the paper clip to press and hold the (M) button until 'Mode 0' is shown on the LED display.
Step 2.: Lift the empty forks approximately 2" to 4" off the ground. 'Mode 1' will show on the LED
display. Do not manipulate the tilt, side shift or fourth lever function during the zeroing process.
Step 3.: Referencing your known weight, use the paper clip to toggle the (Arrow Up) button until the
digit on the farthest right of the LED display represents the digit in your known weight. For example if
your known weight is 3062, the digit in 'Mode 1' setting should be 2.
Step 4.: Use the paper clip to press the (M) button to enter 'Mode 2' to input the next digit, second from
the right on the LED display. For example if your know weight is 3062, the digit in 'Mode 2' setting
should be 6. Repeat steps 3 & 4 until all the digits in your known weight have been entered. If your
known weight consists of only 4 digits input 0 for 'Mode 5'.
Step 5.: After completing 'Mode 5' before pressing the (M) button drive into the known weight load.
Once secure to the load backrest or attachment, making sure there is no pressure in the hydraulic
system with the forks to the floor, use the paper clip to press the (M) button until 'Mode 6' is shown on
the LED display.
Step 6.: Lift the load approximately 2" to 4" off the ground using the hydraulic lift lever and accelerator
pedal only, same as in Step 2, when zeroing the empty forks . Do not manipulate the tilt, side shift or
fourth lever function during the weighing process.

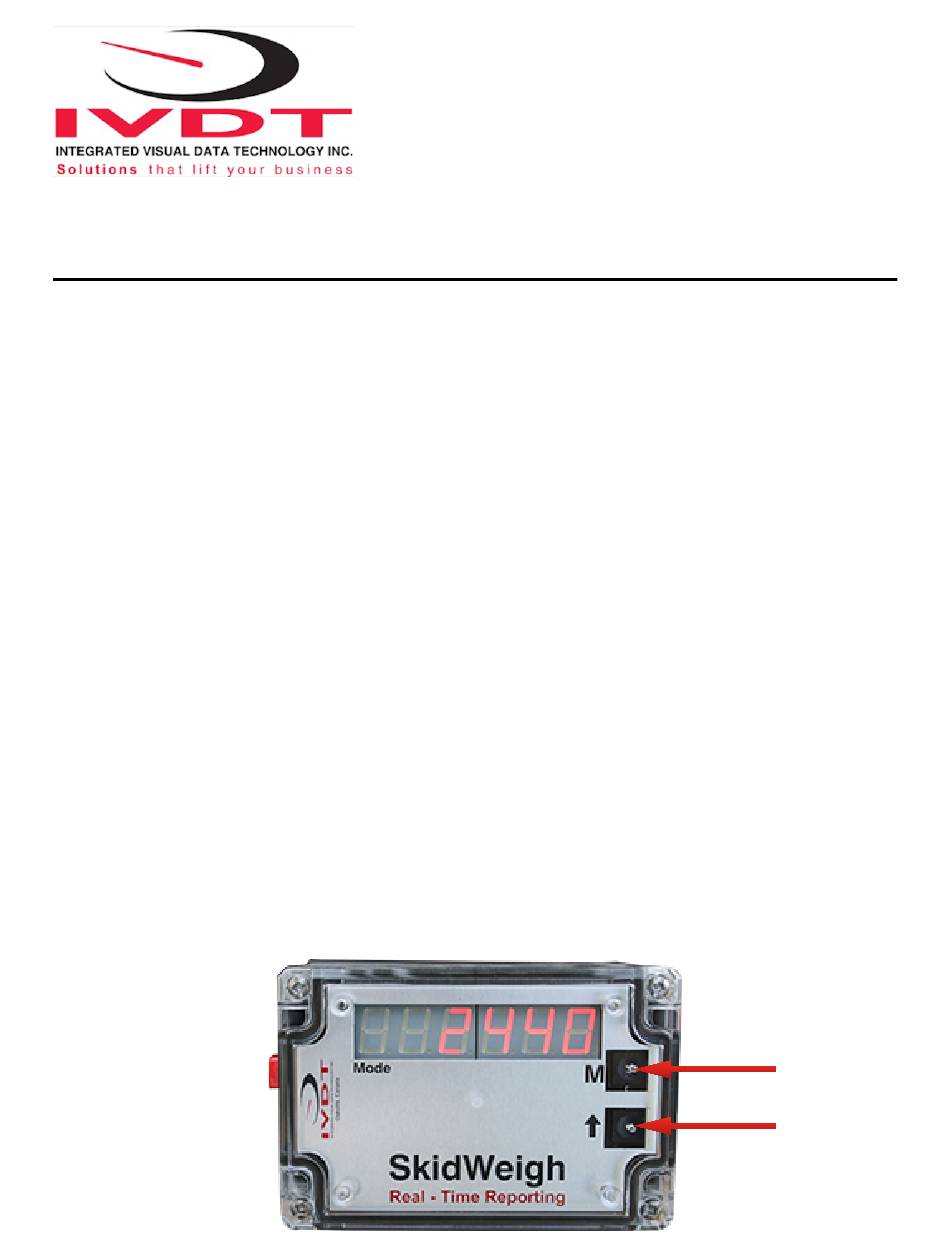

(M) Button
(Arrow Up)
