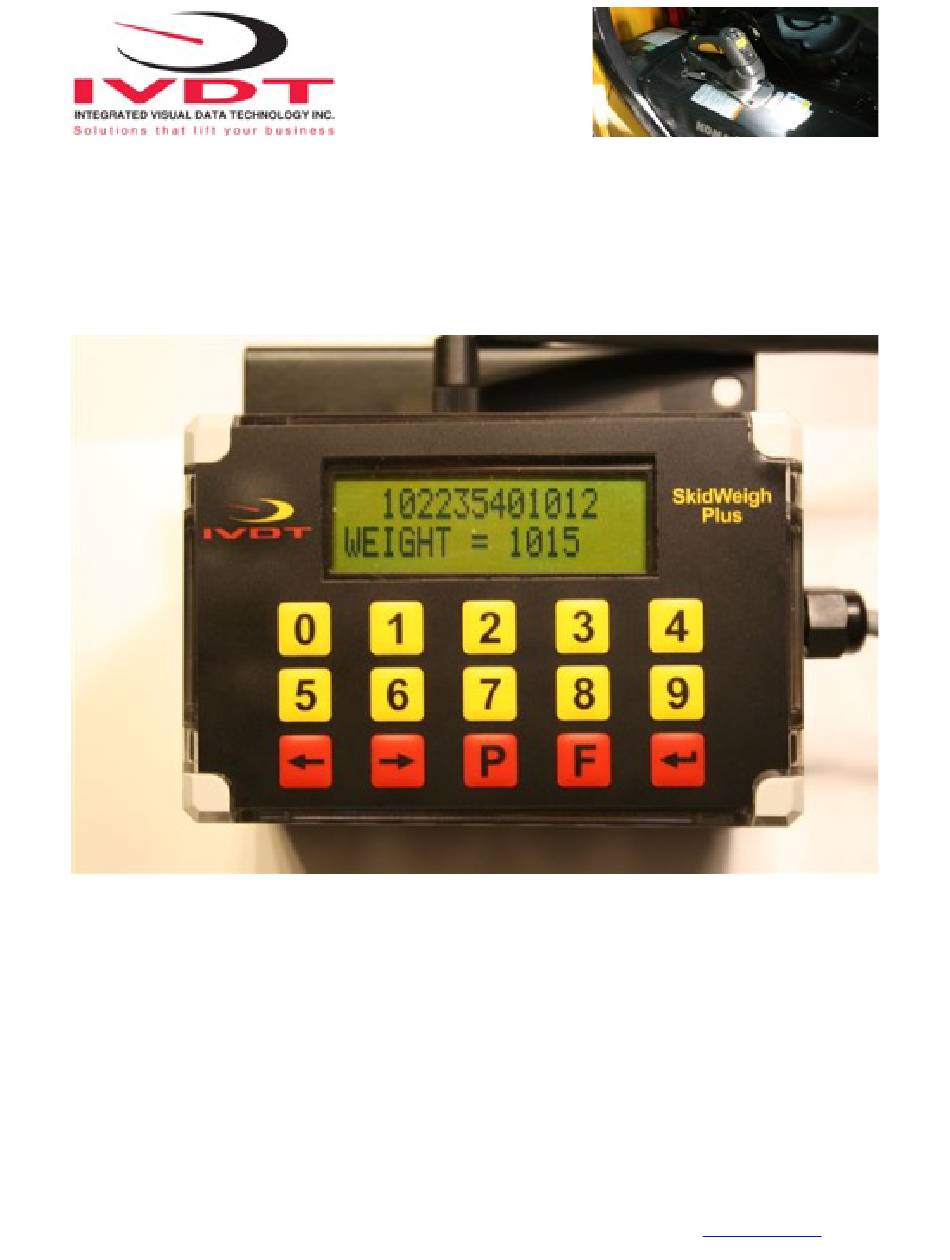

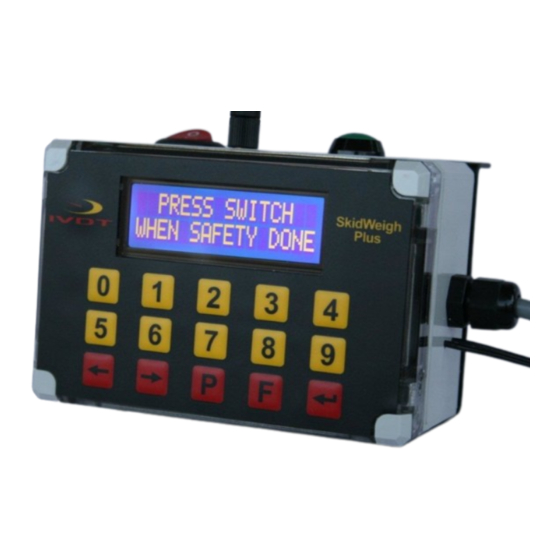

- Page 1 Installation & Calibration ED4 SkidWeigh Plus Series + RF Base Station Lift Truck On-board Check Weighing With Bar Code Reader Version: Custom Software, ED4-Wilson Logistics Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
-
Page 2: Electromagnetic Compatibility
General Installation Guide This ED3 & ED4-AT SkidWeigh Plus installation & calibration guide describes how to install, calibrate, test and use your on-board check weighing unit. Following the instructions in this guide will enable you to get your system operating quickly and easily. -
Page 3: Pressure Transducer Installation
Operational principal The ED3-AT SkidWeigh Plus operational principal is based on the hydraulic pressure transducer mounted in the vehicle lifting hydraulic circuit that will automatically activate the “weighing cycle / specific algorithm ” every time a skid load is lifted just above the ground. The increase in pressure is converted in an electronic signal at the sample rate of 16000 readings which is converted into a load weight reading. -
Page 4: Compact Size
Compact size All of the SkidWeigh systems are compact, housing dimension of only 120 x 80 x 55 mm is ideal for the installations to material handling vehicles of all kinds. Electrical Connections All SkidWeigh systems operate from 12 to 55 V DC. Digital indicator five wires single cable - Orange Wire (+) Ignition switch On position - Brown Wire (-) Battery negative... - Page 5 “Quick test to determine if electrical connections are done right” Note: SkidWeigh weighing calibration function is not done yet at this stage. This procedure is only to test if electrical connections of the system installation into the vehicle is done properly! After you have connected electrical power and pressure transducer cable you can “quickly”...
- Page 6 As of example LCD display might show 48 or any other value depending on the pressure. Keep lifting and lowering forks and that value should change accordingly. If sensor value is not changing check electrical connections to correct the problem with electrical connections of the pressure transducer 3 wires or you must replace pressure transducer.
- Page 7 Weighing calibration The ED3 & ED4 SkidWeigh Plus calibration is automatic and is done by lifting empty and loaded forks (or any other attachment such as paper clamp) just above the ground. MAKE SURE THAT YOU HAVE A KNOWN LOAD WEIGHT AND KEEP IT NEARBY TO COMPLETE THE CALIBRATION.
- Page 8 At this point you must lower the empty forks to the ground. The LCD display will show LCD Display CALIBRATION 1 WEIGHT = ❏ At this point you must pick up a known load weigh and lower the loaded forks to the ground. ( Our example of the known load weight is 2000 kg) LCD Display CALIBRATION 1...
- Page 9 Vehicle ID# To enter or change vehicle ID# into the system the LCD display must be showing date / time. Press and hold F key until LCD display shows ENTER FUNCTION. ↵. Press number 5 and the LCD display will prompt you to enter valid vehicle ID. Maximum 3 digits. Press Enter key Operator Proper Weighing Procedure Note: Small icon next to the time shown on LCD display indicates that system is Bluetooth paired with the scanner.
- Page 10 Note: To initiate a load weighing cycle, loaded forks must be lowered to the ground. Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
- Page 11 Base Station - Power supply and USB port Wilson Logistics: Use Clock & More icon to get into managing data Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
- Page 12 Wilson Logistics Application: Use “SAVED DATA” input only in order to manage data. Wilson Logistics: Managing data options Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
- Page 13 Base Station & Mobile USB Recording (As of March 19, 2015 Ottawa System) Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
- Page 14 USB Data Download From Mobile Unit Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
- Page 15 With LCD Display Showing Time /Date - Press F key - Press number 6 - LCD will show “saving to USB” - Erase SDRAM on mobile unit ? N (Default is N) - Press left or right arrow to change to Y - Press Enter key to confirm ! Integrated Visual Data Technology Inc.
