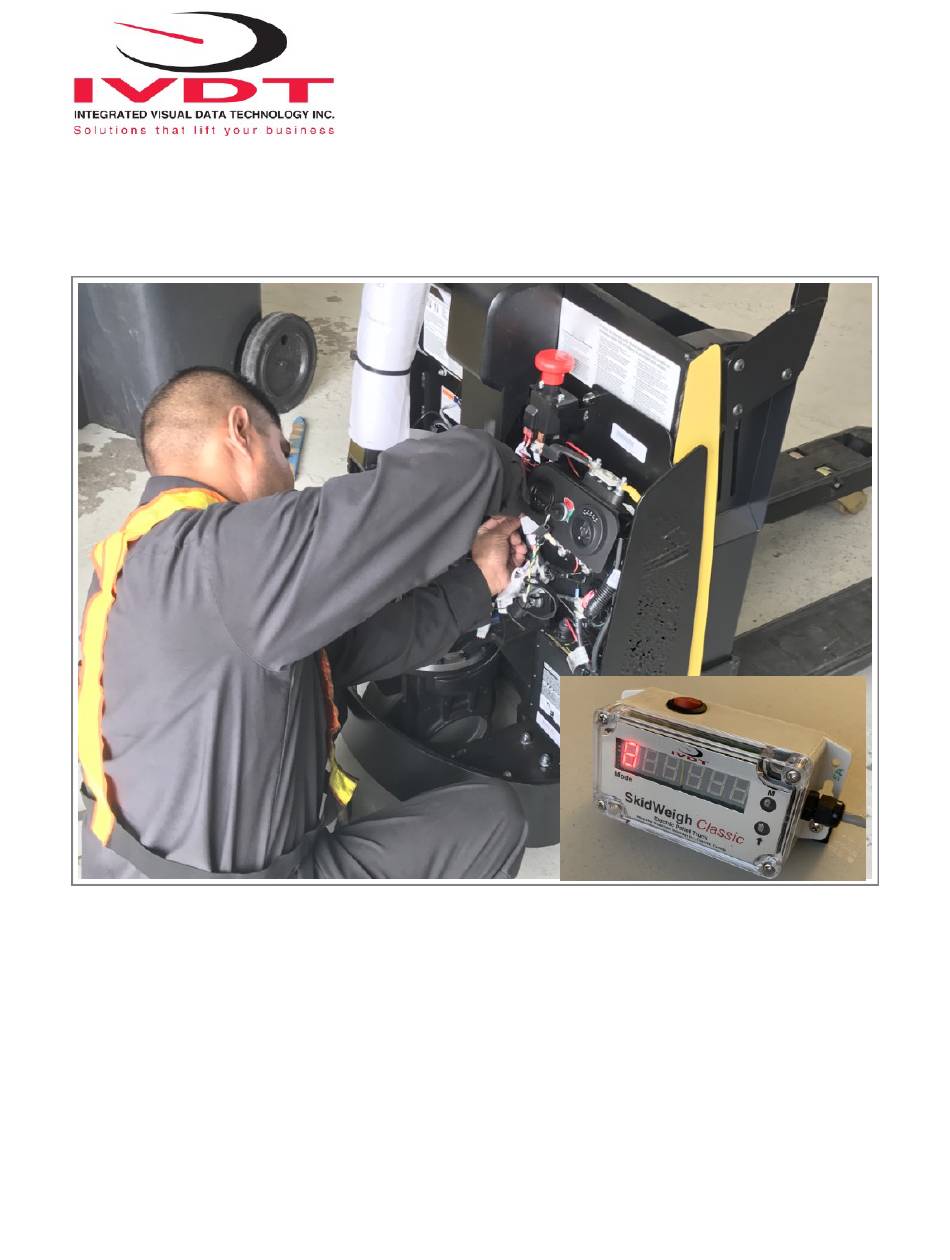

- Page 1 Installation & Calibration Manual Electric Pallet Truck Check Weighing Systems SkidWeigh Classic SC5 and SC5-OEM Series SC5EP Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
-
Page 2: Electromagnetic Compatibility

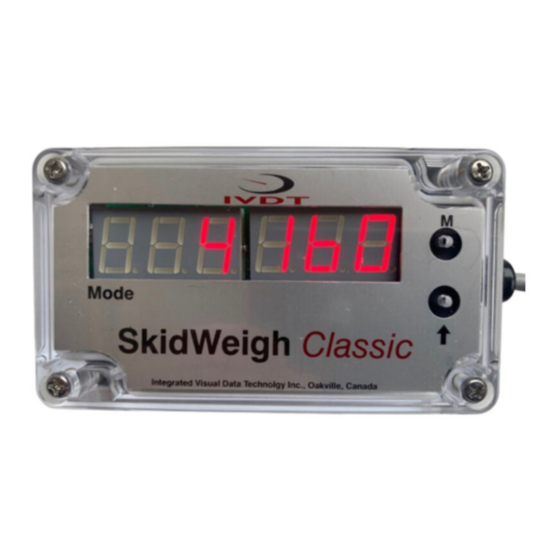

Check that software version displayed on LED is the one applicable for your application. Overview of Components The standard SkidWeigh Classic SC5 Series check weighing system consist of the following components: * Digital indicator with wiring harness, mounting bracket and anti-vibration mount * Hydraulic pressure transducer with 3 wires cable * Installation &... - Page 3 Operational Principal The SkidWeigh Classic systems operation principal is based on the hydraulic pressure transducer mounted in the vehicle lifting hydraulic circuit. The increase in the hydraulic pressure will activate the specific “weighing cycle” algorithm and initiate automatic motion control of the hydraulic lift motor. The microprocessor will take a readout of the predetermined valid pressure transducer input at a sample rate of 16000 readings per measurement session and will convert it to the load weight that will be shown on LED display.
-
Page 4: Electrical Connections
Electrical Connections All SkidWeigh systems operate from 12 to 55 VDC. Orange Wire (+) Key switch On position Brown Wire (-) Battery negative Red Wire, connect to RED wire of the pressure transducer cable Black Wire, connect to BLACK wire of the pressure transducer cable White Wire, connect to WHITE wire of the pressure transducer cable Two Black Wires (two separate wires) are used for lift motor pump solenoid interface (SC5 system) Electric Pallet Truck Lift Motor Pump Solenoid Interface... - Page 5 Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 6 Note: Standard SC5 Series electric pallet truck weighing systems have indicators supplied with two separate black wires for the lift pump motor solenoid interface control. Lift Accurate Technology Two black wires or (Green and Yellow) from main harness are connected internally to dry contact relay, normally closed contact.
- Page 7 Important: If you want the system to show load weight in pounds, use the known load calibration weight in pounds and enter that value accordingly. The same would apply if you want the system to show load weight in kilograms. Use the known load weight in kilograms and enter that value into the system accordingly.
- Page 8 Calibration of Loaded Forks * Have known calibration load weight near by (Kg or pounds depending on your needs) * Position the forks into the skid with your known load weight. * In our example the known load weight is 4000. * Start entering into the system known load weight (Use paper clip).
- Page 9 Operator Usage Guide The starting point to initiate a load weighing procedure are * Indicator power switch must be turned ON. * Loaded forks must be lowered to ground. * LED display must show Mode 8 digit System Power Switch System ready to be used * With loaded forks on the ground and LED Display will show Mode 8.
