IVDT ED3-AT SkidWeigh Plus Operator's Manual

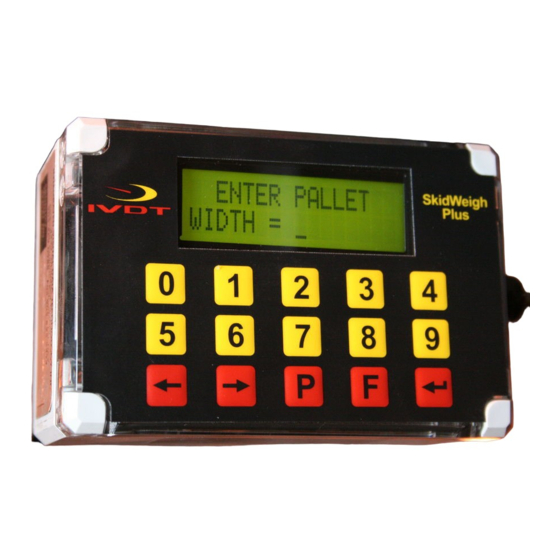

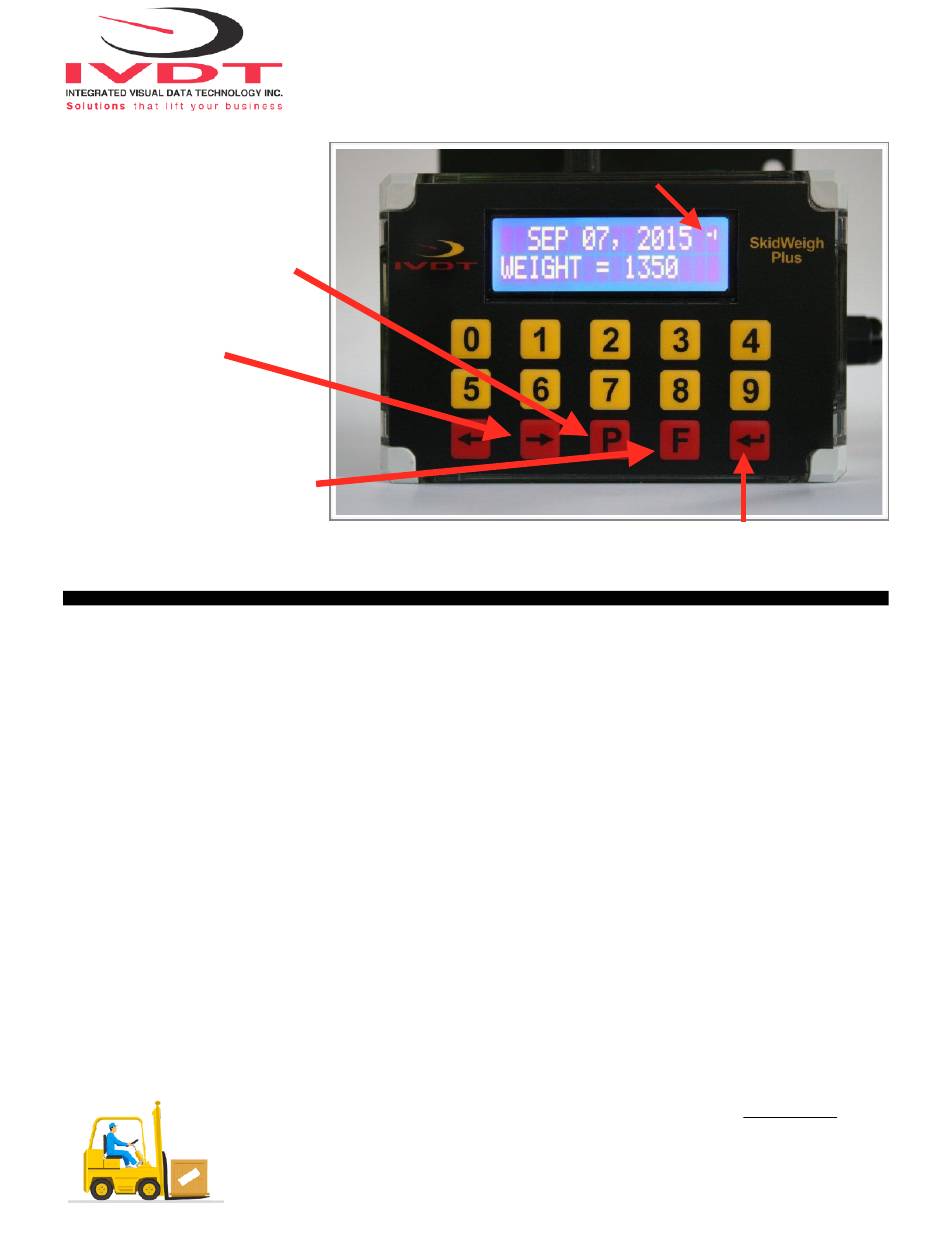

"P" Key
- Printing tickets
(system with
onboard mobile printer)
- Save data to USB port
- Waybill ID# input
- Decimal input
(used with
parts count by weight)
Scroll Keys
"F0" Key
Operator Function Key
- Bluetooth printer / scanner
pairing functions
- TARE Function
- Parts count by weight
- Pounds or kilograms display

Start Up

* Turn on ignition switch
* The LCD display will show software version, serial number and will indicate Date / Time.
(Standard ED3 / ED4-AT SkidWeigh Plus version without operator access control)
* System with Optional
System will prompt operator to input valid operator ID# or to scan operator RFID card
* Complete OSHA safety check function, if applicable
* LCD display will show Date / Time and vehicle will be operational

1. Proper Weighing Procedure

- Lower loaded forks to ground
- LCD Display must show Date / Time
- Activate lift control lever same as during normal usage and lift load approx. 2" (5 cm) off the ground
- Do not manipulate the tilt, side shifter or move vehicle during the weighing cycle
- Within few seconds load weight will be indicated on LCD Display.
-

2. Accumulative Load Weight Measuring Cycle

- With LCD Display showing first load weight, press
- The LCD Display will show first load weight. Keep lifting loads and press
- With each additional load lifted system will show TOTAL accumulative load weight.
- On last load weight lifted press "Enter key" ↵ and press "P" key to complete cycle.
Operator
Access Control:
Note: By pressing "P" key the accumulative load weight cycle will be reset.
Load weight information will be automatically saved to USB port, printed ticket
provided if the Bluetooth onboard printer is utilized. Weighing data will be send
to the base station.
Operator Usage Guide
ED3 / ED4-AT SkidWeigh Plus
I
mpact Monitoring Icon (Optional)
to start accumulating loads.
"Enter key" ↵
(Weighing Scale)
"Enter key" ↵
(Without Waybill ID# input)
"Enter key" ↵.
