CONTROLLER AND RECEIVER
LR-4TWN and R3C
4 zones RF controller and receiver for tunable white LED strip

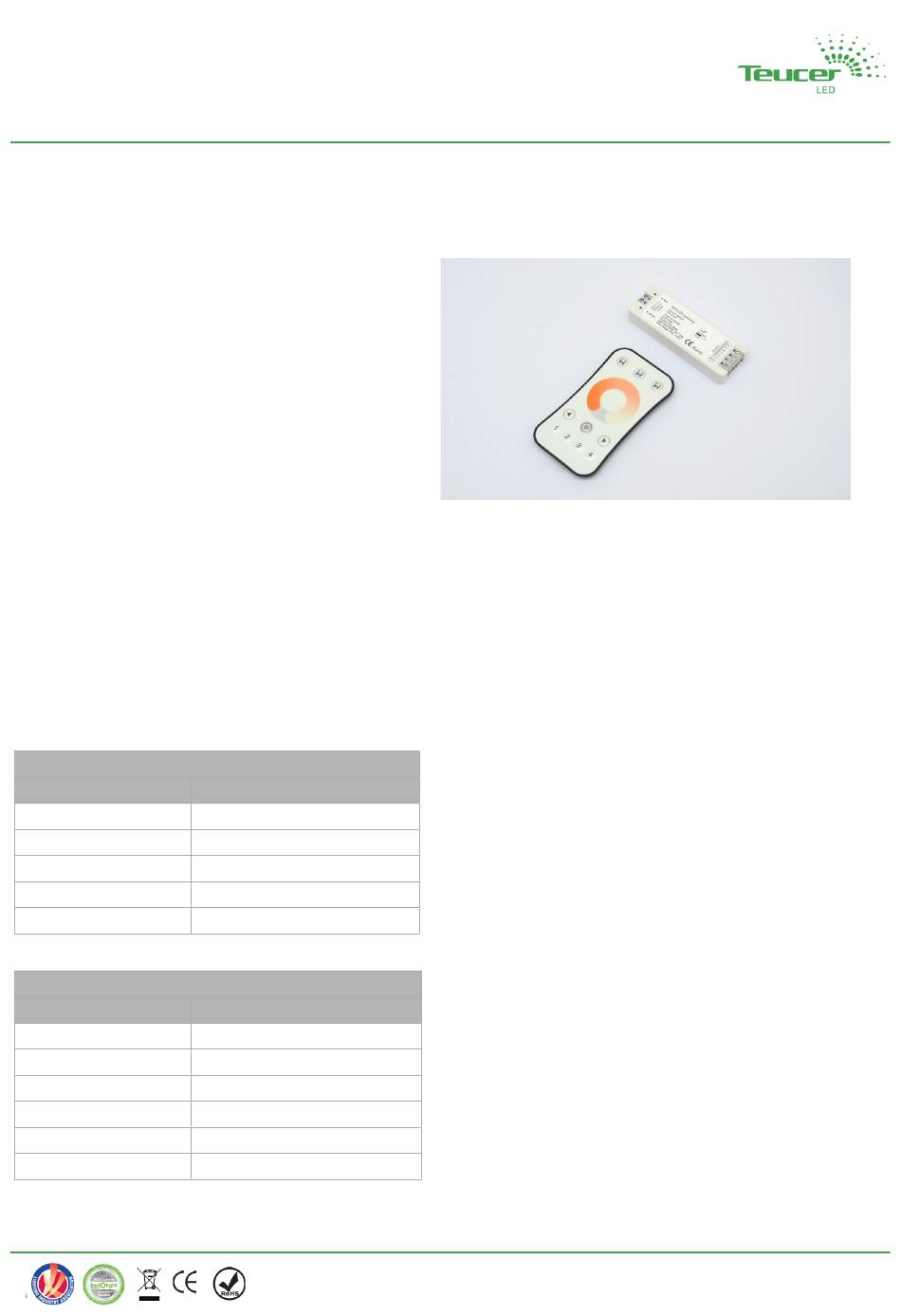

Product Description
The LR-4TWN remote enables control of up to 4 zones of
tunable white LED strips. Featuring a touch colour tempera-
ture wheel, the remote enables the user to adjust the colour
temperature from warm white to cool white and daylight
seamlessly.
Features
Control single zone, two, three or four zones.
2.4GHz wireless technology, enabling remote distance
of up to 30m.
Operates with an LED indicator light for ease of use.
Each remote can control one or more receivers.
Control each zone separately or simultaneously.
PWM dimming enables flicker-less dimming.
Dimming range: 0-100%
Can be used as a 4 channel or 4 output dimming re-
mote.
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Power
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
LR-4TWN
RF Remote
3VDC
2.4GHz
58.5x107x9mm (WxLxH)
battery CR2032
R3C
RF receiver
12-36VDC
3x4A
144-288W
Constant voltage
33x97x18mm (WxLxH)
Product Image
Recommendation
RF technology allows for greater flexibility when it comes to
controlling simple or complex lighting installations without
the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in a
ceiling , reducing the RF signal strength and therefore the
communication range.
In order to overcome these RF Signal restrictions we sug-
gest the following when synchronising our RF controllers
and receivers:
Keep the distance within 10 meters from the control-
ler to the receiver. The remote can operate up to 30
meters if signal is uninterrupted by obstacles.
When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
If your installation requires several RF receivers, ensure
the "master" receiver is positioned in the middle.
Brighter for longer
www.teucerled.co.uk
