CONTROLLER AND RECEIVER
WP-2TW and LRR-WTC
2 zone RF & WIFI controller and receiver for single colour LED strip
Product Description
Teucer`s 2 zone touch panel allows users to control 2
separate zones of lighting from a single wall unit. Using a RF
signal to control the LED lighting, removes the need to have
additional wiring between the wall panel and the receiver,
which allows greater flexibility during installation by
reducing installation time and cabling costs.
Features
•
Smartphone / tablet compatible via Easy Lighting app
•
Wireless RF range of 8-15 meters (depending on signal
obstacles within the installation area)
•
Control 2 zones independently
•
Touch sensitive glass
•
5%-100% smooth dimming
•
Backlit buttons for night time use
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Power
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
WP-2TW
RF wall panel, WIFI transmitter
12-24VDC
868MHz
86x86x29mm (WxLxH)
10W driver LD-IP10/24
LRR-WTC
RF receiver
12-36VDC
4X5A
4X(60-180)W
Constant voltage
46x178x22mm (WxLxH)
Recommendation
RF technology allows for greater flexibility when it
comes to controlling simple or complex lighting instal-
lations without the need of additional cabling.
There are some limitations where installations have
the receivers enclosed in electrical boxes or hidden
away in a ceiling , reducing the RF signal strength and
therefore the communication range.
In order to overcome these RF Signal restrictions we
suggest the following when synchronising our RF con-
trollers and receivers:
•
Keep the distance within 10 meters from the con-
troller to the receiver
•
When expanding your lighting, always try and use
a signal repeater (PR-RGB), where possible.
•
If your installation requires several RF receivers,
ensure the "master" receiver is positioned in the
middle.
Brighter for longer
www.teucerled.co.uk
Advertisement
Table of Contents
Related Manuals for TEUCER WP-2TW
Summary of Contents for TEUCER WP-2TW

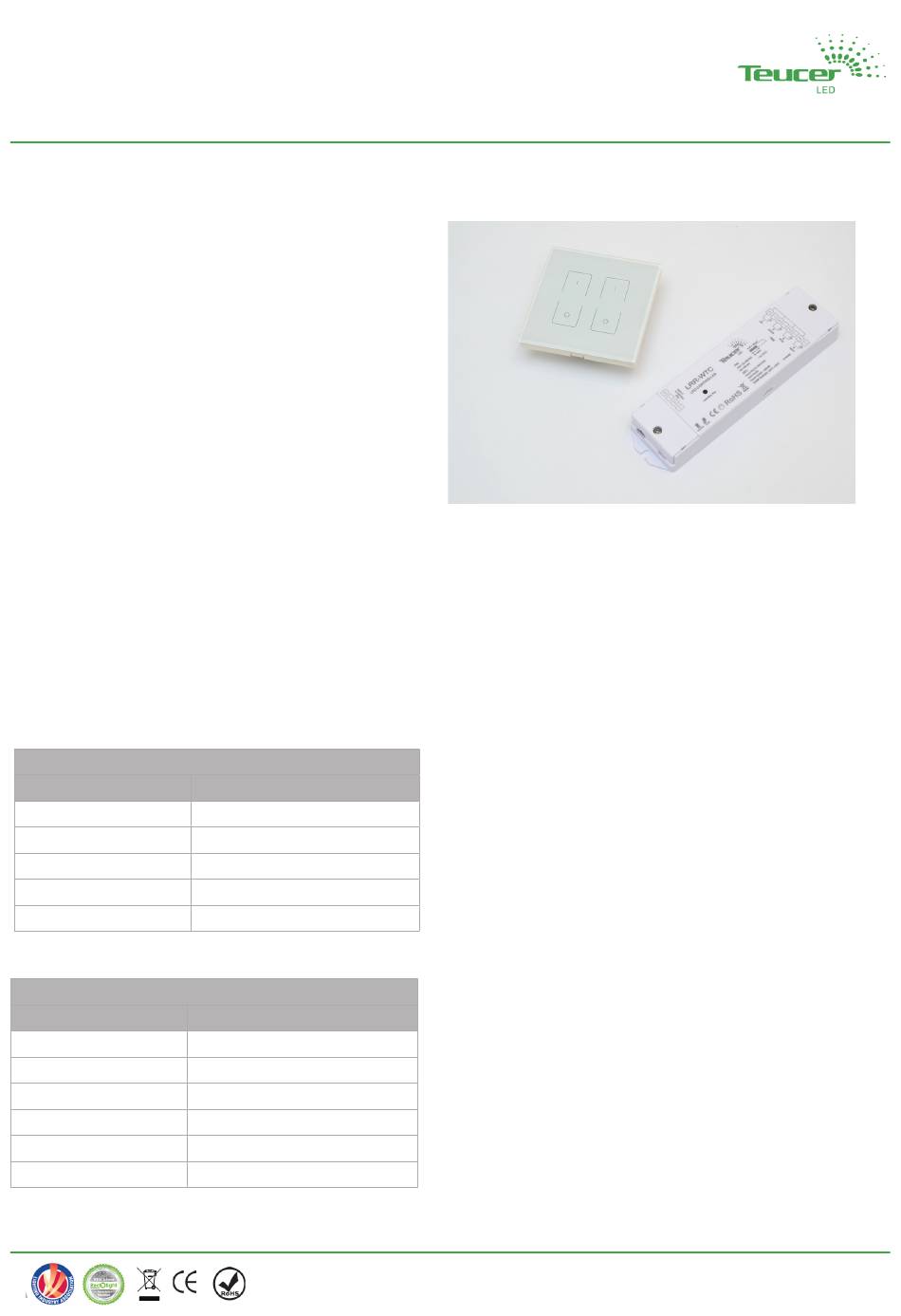

- Page 1 2 zone RF & WIFI controller and receiver for single colour LED strip Product Description Teucer`s 2 zone touch panel allows users to control 2 separate zones of lighting from a single wall unit. Using a RF signal to control the LED lighting, removes the need to have...
- Page 2 CONTROLLER AND RECEIVER Brighter for longer WP-2TW and LRR-WTC 2 zone RF & WIFI controller and receiver for single colour LED strip Controller layout Zone 1 Zone 2 ON and dim up bu�on 12-24VDC GND Vin OFF and dim down bu�on...
- Page 3 CONTROLLER AND RECEIVER Brighter for longer WP-2TW and LRR-WTC 2 zone RF & WIFI controller and receiver for single colour LED strip Synchronising the controller to receiver 1) Ensure the wall panel is connected to a power source 2) Set the receiver LRR-WTC as a MASTER OR SLAVE.
- Page 4 Teucer, as well as subsequent • Always ensure products are mounted in areas with return of the faulty unit. Teucer does not accept adequate ventilation to avoid overheating. responsibility for any installation costs associated with •...
