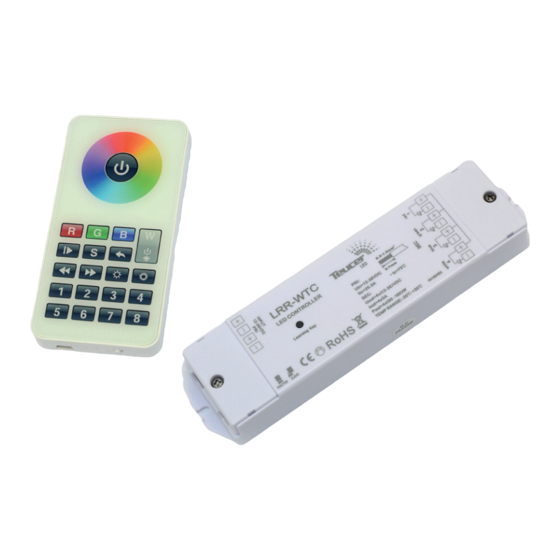

TEUCER LR-8RGBW Manual

CONTROLLER AND RECEIVER
LR-8RGBW and LRR-WTC
8 zone RF & WIFI controller and receiver for RGBW LED strip
Product Description
Teucer`s RGBW controller enables control of up to 8 zones.
As well as dimming this product this product can be used in
conjunction with the LR-WTC receiver and paired with the
LR-WIFI trans and the Easy lighting app therefore allowing
any Android or Apple smartphone/ tablet to simultaneous
control the lighting wirelessly whilst maintaining synchro-
nous operations.
Features
• Control up to 8 zones independently or simultaneously
• Adjust colour and brightness
• Smartphone / tablet compatible via Easy Lighting app
• Wireless RF range of 8-15 meters (depending on signal
obstacles within the installation area)
• Save light functions and preferences to each zone
• 5%-100% smooth dimming
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Power
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
LR-8RGBW
RF remote controller
5VDC
434MHz / 868MHz / 915Mhz
115.4x58.8x12mm (WxLxH)
3.7V (Lithium Battery), USB charge
LRR-WTC
RF receiver
12-36VDC
4X5A
4X(60-180)W
Constant voltage
46x178x22mm (WxLxH)
Recommendation
RF technology allows for greater flexibility when it comes to
controlling simple or complex lighting installations without
the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in a
ceiling, reducing the RF signal strength and therefore the
communication range.
In order to overcome these RF Signal restrictions we sug-
gest the following when synchronising our RF controllers
and receivers:
• Keep the distance within 10 meters from the controller
to the receiver
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
• If your installation requires several RF receivers, ensure
the "master" receiver is positioned in the middle.
