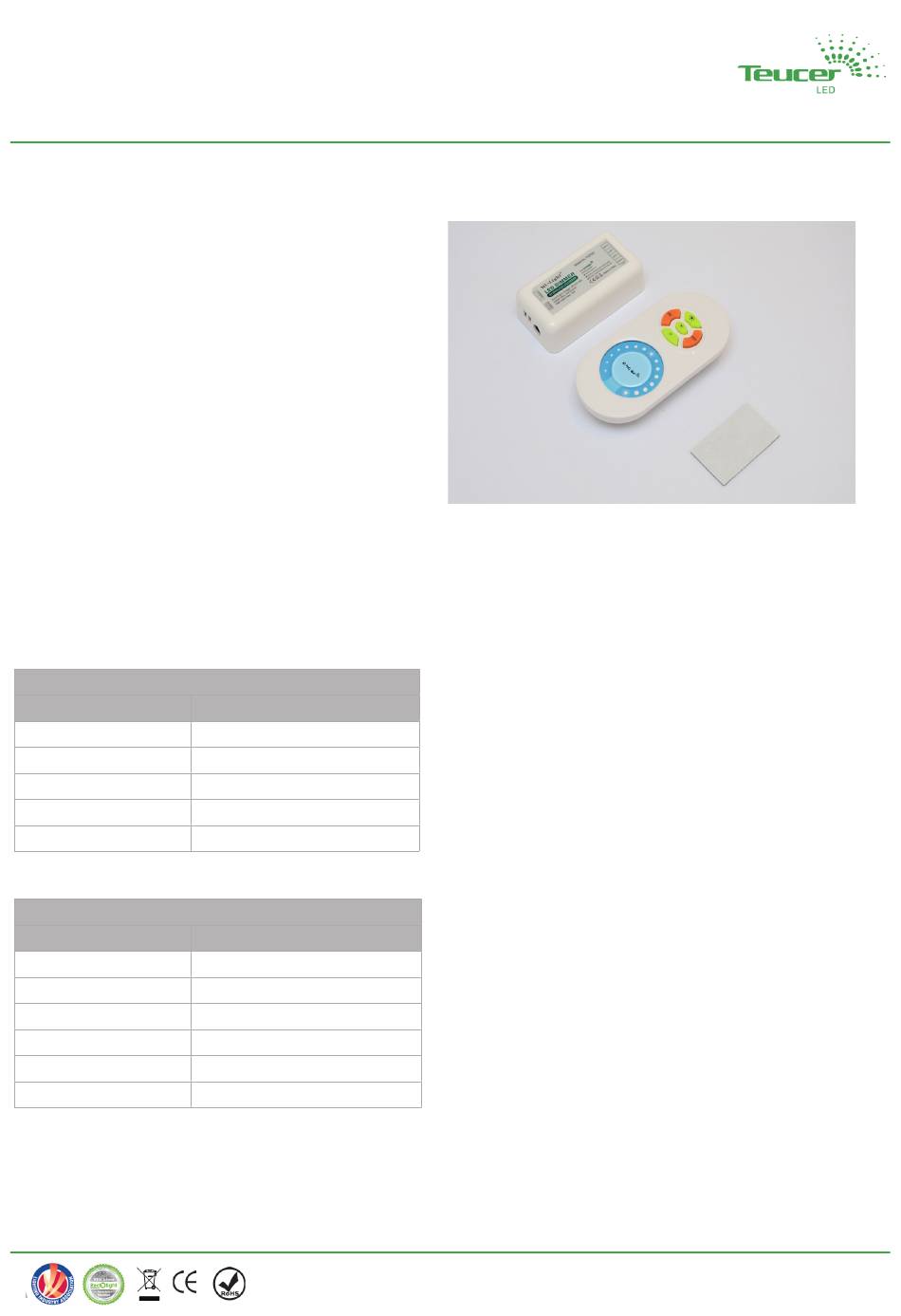

CONTROLLER AND RECEIVER
LR-W and LRR-W
1 zone RF controller and receiver for single colour LED strip
Product Description

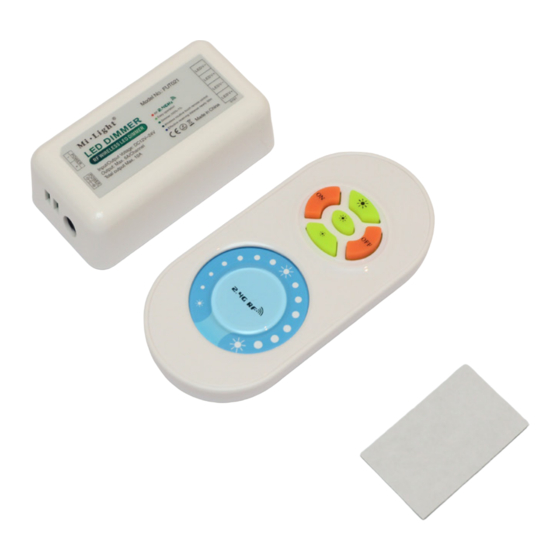

This controller is used to control and dim single colour LED
strip. It enables the user to access 3 pre-set lighting levels
from the touch of a button or adjust your lighting with
smooth dimming (5%-100%) via the touch sensitive wheel.
Features
•
5%-100% smooth dimming capacity
•
Touch sensitive brightness wheel
•
Wireless RF (Radio Frequency) range of 8-15m (de-
pending on signal obstacles within the installation area)
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Power
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
LR-W
RF remote controller
3.6VDC
2.46GHz
56x113x22mm (WxLxH)
Batteries 2xAAA
LRR-W
RF receiver
12-24VDC
2x6A
2x(72-144)W
Constant voltage
45x85x23mm (WxLxH)
Recommendation
RF technology allows for greater flexibility when it
comes to controlling simple or complex lighting instal-
lations without the need of additional cabling.
There are some limitations where installations have
the receivers enclosed in electrical boxes or hidden
away in a ceiling, reducing the RF signal strength and
therefore the communication range.
In order to overcome these RF Signal restrictions we
suggest the following when synchronising our RF con-
trollers and receivers:
•
Keep the distance within 10 meters from the con-
troller to the receiver
•
When expanding your lighting, always try and use
a signal repeater (PR-RGB), where possible
•
It is not recommended to use more than 4 receiv-
ers with a single zone controller.
•
This controller / receiver does not have a master/
slave function, meaning if you connect several
receivers to the same controller, the LED strip will
become unsynchronised when put into a colour
changing programme (play mode), however it will
not affect the performance in the static mode.
Brighter for longer
www.teucerled.co.uk
