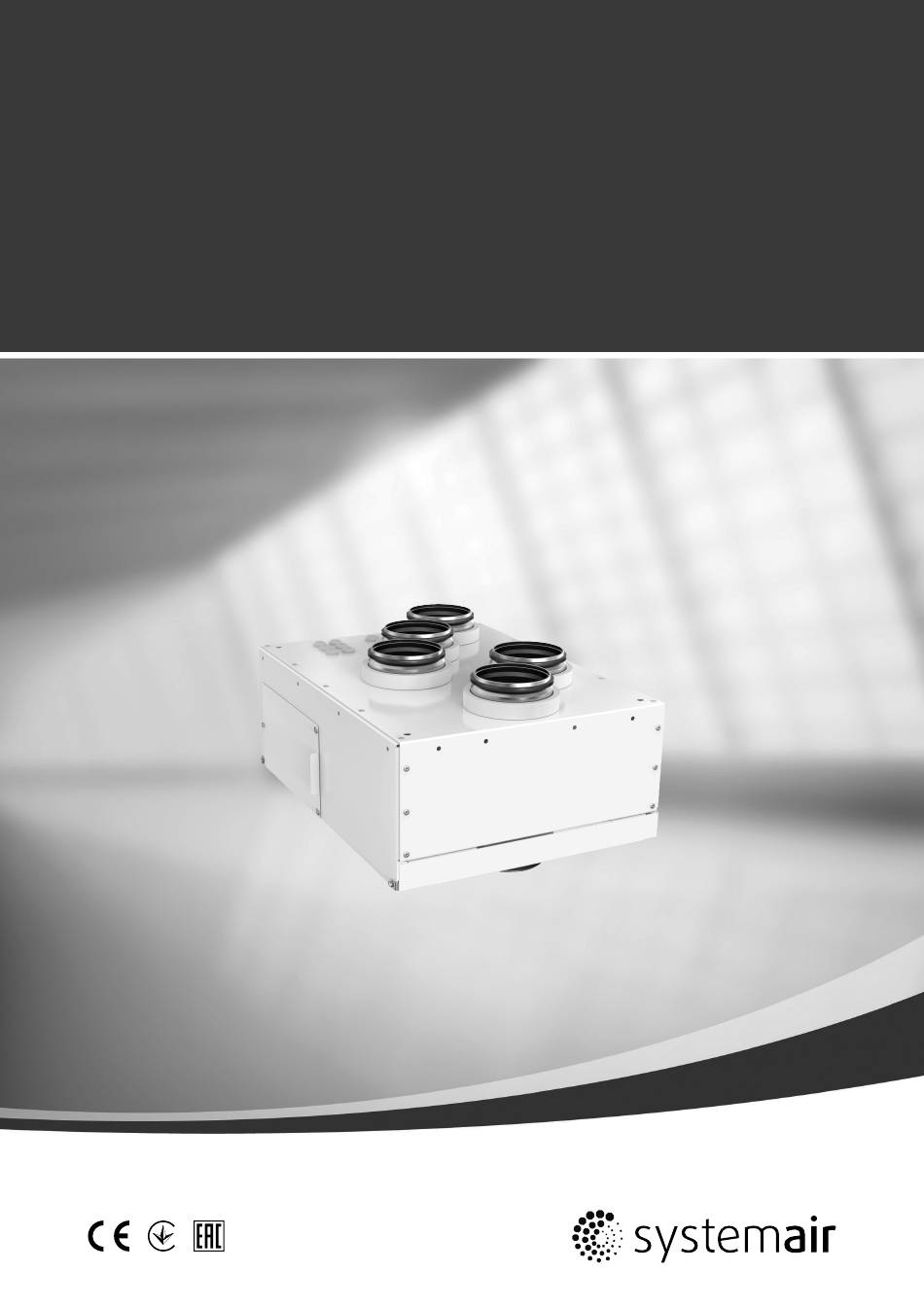

- Page 1 SAVE VTR 250/B ceiling mounting kit Installation instructions Document in original language | 211891 · A001...
- Page 2 211891 | A001...
-
Page 3: Table Of Contents
Contents Warnings............1 Included screws and washers......1 Dimensions (mm)..........1 Installation options ..........2 Fitting with battens.........2 Fitting to concrete with threaded rods (accessory, art. no. 134014) .....3 Fitting with anti-vibration mount (accessory, art. no. 134009) .....4 Mounting the unit..........5 211891 | A001... -
Page 5: Warnings
Warnings | Warnings Warning • Consider the unit weight when mounting! Important • Beware of sharp edges during mounting and maintenance. Use protective gloves. • This product must only be operated by a person which has suitable knowledge or education within this field or carried out with the supervision of a suitably qualified person. -
Page 6: Installation Options
| Installation options Installation options Fitting with battens 2x Batten (minimum 45 x 45 mm) Battens (E) should be tightened to the ceiling mounting kit from inside. Battens can be attached from the front and the rear or from both sides with added self- tapping screws (A) and washers (B). -
Page 7: Fitting To Concrete With Threaded Rods (Accessory, Art. No. 134014)
Installation options | Fitting to concrete with threaded rods (accessory, art. no. 134014) 4x Drop-in anchor M10 (12 mm x 32 mm) 4x Threaded rod M10 (1 m) 8x Hex flange nut M10 Use a 12 mm drill to make 4 holes in the ceiling with a depth of 40 mm. -
Page 8: Fitting With Anti-Vibration Mount (Accessory, Art. No. 134009)
| Installation options Fitting with anti-vibration mount (accessory, art. no. 134009) 2x Anti-vibration bracket 8x Hex bolt M6 x 12 8x M6 washer 8x Hex nut M6 Anti-vibration brackets (1) should be tightened to the ceiling mounting kit from the front and the rear or from both sides with added hex bolts (2) then tightened with washers (3) and hex nuts (4) as shown in the illustration. -
Page 9: Mounting The Unit
Mounting the unit | Mounting the unit Important If cooker hood option is not used, cover the cooker hood duct with an outside fitting end cap. Remove screw (1) and washer (2) then pull a lock mechanism to detach side bracket. - Page 10 | Mounting the unit Warning Consider the weight of the unit when mounting! Before lifting and hanging the unit make sure that all accessories are installed and cables are lead through the holes on top of ceiling mount kit for easy connection to the connection box which is located on top of the unit.
- Page 11 211891 | A001...
- Page 12 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
