  • Page 1 SAVE VTR 275/B Installation instructions Document in original language | 281769 · v01...
  • Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service. 281769 | v01...
  • Page 3: Table Of Contents

    Contents Overview ............1 General Description ........1 Warranty ..........1 Type label..........1 Important Safety Information ......1 Intended Use.........1 Admonitions .........2 Technical Data ..........2 Dimensions and Weight ......3 Connections Left and Right models.....4 Installation recommendation regarding condensation ........5 3.3.1 Condensation inside of the unit .........5 3.3.2 Condensation outside of the...
  • Page 5: Overview

    For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit.
  • Page 6: Admonitions

    | Technical Data • Keep all the warning signs on the device and in a legible condition. • The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. •...
  • Page 7: Dimensions And Weight

    Technical Data | Dimensions and Weight 168** 219** 1182 125x5 Fig. 2 Dimensions of left hand unit 281769 | v01...
  • Page 8: Connections Left And Right Models

    | Technical Data 168** 219** 1182 125x5 125x5 Fig. 3 Dimensions of right hand unit ** Drainage. The unit weight is 49 kg. Connections Left and Right models 281769 | v01...
  • Page 9: Installation Recommendation Regarding Condensation

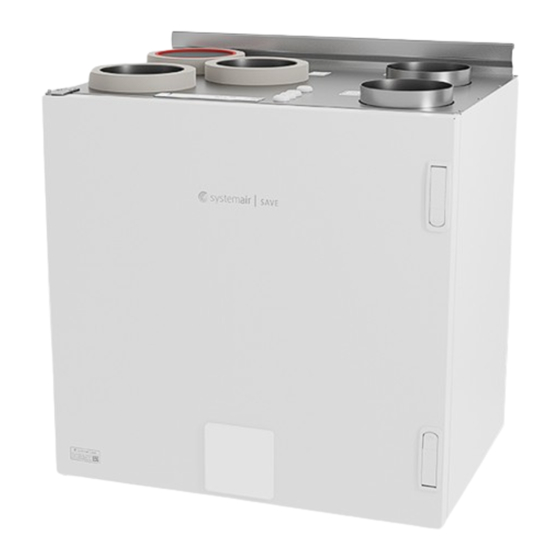

    Transport and storage The SAVE VTR 275/B should be stored and transported in such a way that it is protected against physical damage. It should be covered so dust, rain and snow cannot enter and damage the unit and its components.
  • Page 10: Delivery/Unloading

    To ensure a proper and fail-free operation, it is important that the unit is installed according to these instructions. Location and Space Requirements The SAVE VTR 275/B should preferably be installed in a separate room (e.g. storeroom, laundry room or similar.). The SAVE VTR 275/B should preferably be installed in a separate room (e.g.
  • Page 11: Wall Preparation For Mounting Bracket

    Access to Power supply The SAVE VTR 275/B is supplied with approximately 1 – 1,5 m cable and plug for 230V, single phase earthed connection. Make sure a power outlet is reachable by the plug.
  • Page 12 | Installation C — concrete/bricks, W — wood block, G — gypsum, M — mineral wool X* — adaptable height according to needs. Make sure the mounting bracket is completely level. 281769 | v01...
  • Page 13: Ventilation Duct Connection And Insulation

    Please follow instructions included with the accessory or consult “Service and Accessories Installation” manual which can be found in our online catalogue. Electrical connections Main circuit board layout The SAVE VTR 275/B is equipped with built-in regulation and internal wiring. 281769 | v01...
  • Page 14: External Connections (Connection Board)

    | Electrical connections Fig. 5 Main circuit board connections Position Description Connection to the external connection box Terminals for a heater Terminals for a TRIAC Terminals for the mains power supply Terminals for power supply of extract air fan Terminals for power supply of supply air fan Terminals for internal relative humidity/temperature sensor Analog input 1 —...
  • Page 15: Before Starting The System

    Before Starting the System | Fig. 6 External connection box and board Position Description Connection to the main circuit board Connection for external control panel (HMI) or Internet access module (IAM) Modbus RS485 connection AI6–7 Freely configurable Analog input. None/Input type selection in HMI. DO1–4 Freely configurable digital output.
  • Page 16: Concluding Routines

    | Concluding Routines Note: If the SAVE LIGHT control panel is used, the start-up wizard is skipped and the factory settings are used. Select language, set the time and choose airflow control type. Select revolutions per minute as the type of airflow con- trol only if these values are included with the device.
  • Page 17: Disposal And Recycling

    Disposal and recycling | Disposal and recycling This product is compliant with the European WEEE Directive and related national waste legislation. When disposing the unit, follow your local rules and regulations. This product packing materials are recyclable and can be reused. Do not dispose in household waste.
  • Page 18: Eu Declaration Of Conformity

    Degrees of protection provided by enclosures (IP Code). The manufacturer hereby confirms that EN 62233 SAVE VTR 275/B Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard comply with all applicable requirements in the following to human exposure.
  • Page 19 281769 | v01...
