Prorack K421 Assembly And Fitting Instructions

K421 ASSEMBLY AND FITTING
INSTRUCTIONS
Kit Contains
1 x Instructions

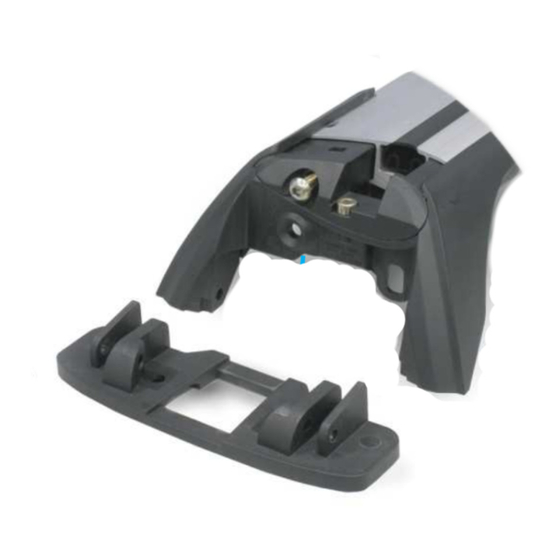

4 x Feet Assemblies
4 x Coach Bolts
4 x M6 x 12 mm Capscrews
8 x M5 x 12 mm Capscrews
Items you will require that are not included:
1 x Tape measure
1 x Step Ladder for higher vehicles
Contact your Prorack dealer if any parts are missing or damaged
Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar
Press Here
1.1
•
Remove crossbar and this kit parts from the
packaging.
•
Follow step 1-3 of crossbar assembly instructions.
•
Remove clamp block by pressing it backwards.
4 x Clamps + Bumpon Tape
4 x Red Plastic Knobs
Remove parts from box & check
Important Note:
1. Fitting Feet Assemblies to Legs
Page 1 of 4

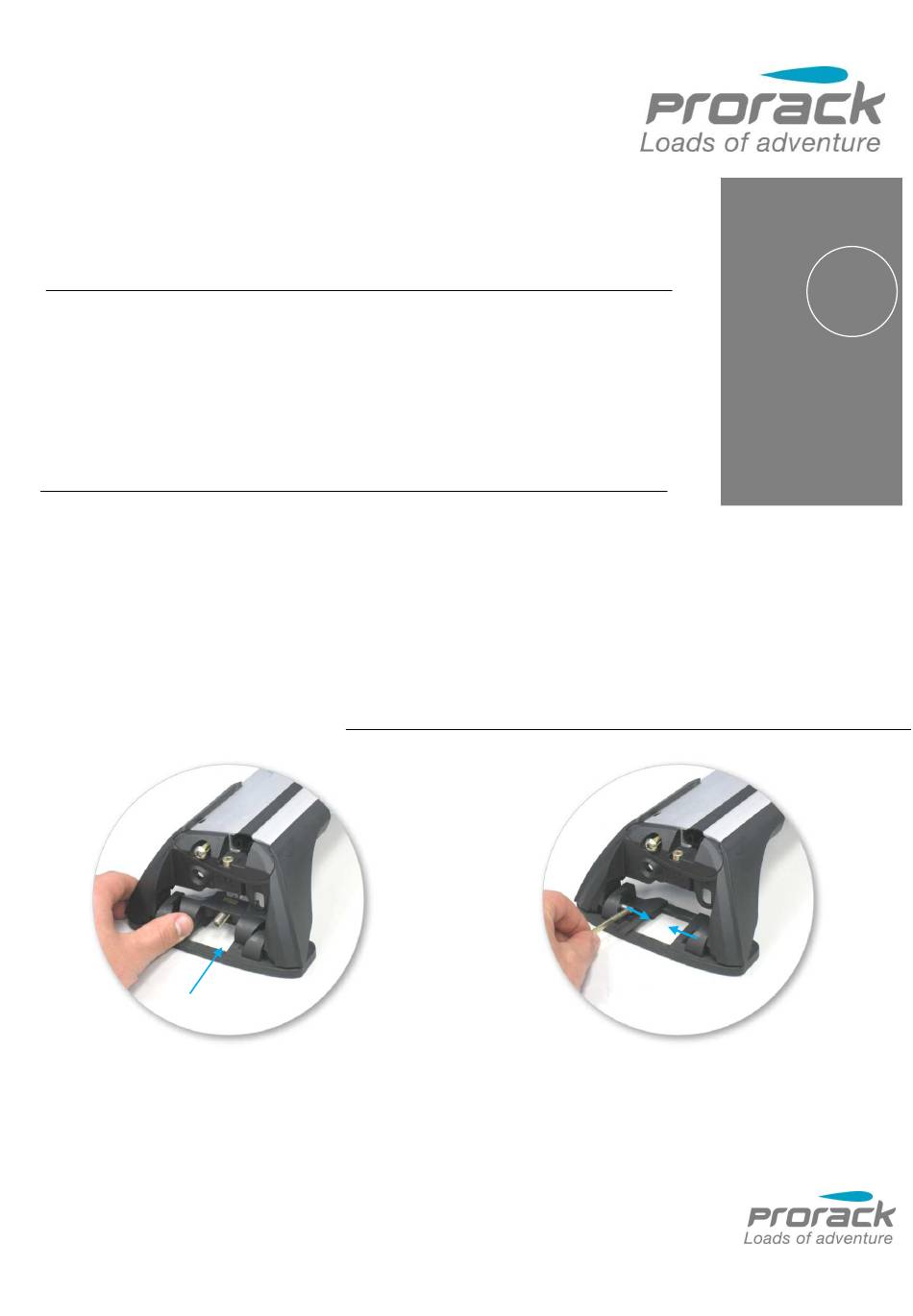

Remove both pins
1.2
•
Remove both pins from each leg.
spanner/screwdriver located inside one of the left
hand covers to assist)
Maximum
75 75 75 75
Whispbar
Load
Rating
kg kg
kg kg
When Fitted and loaded
correctly
(use
