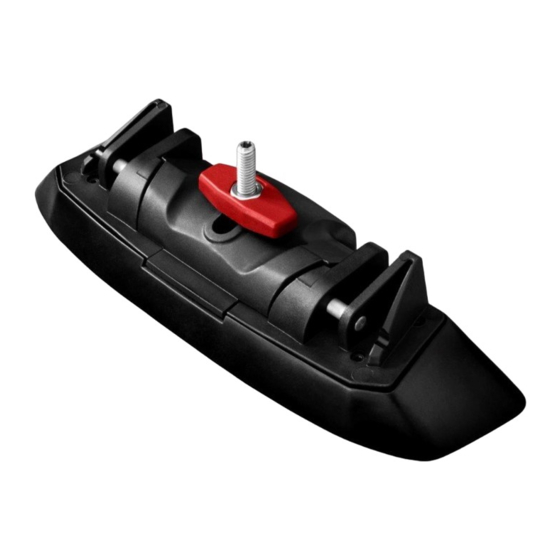

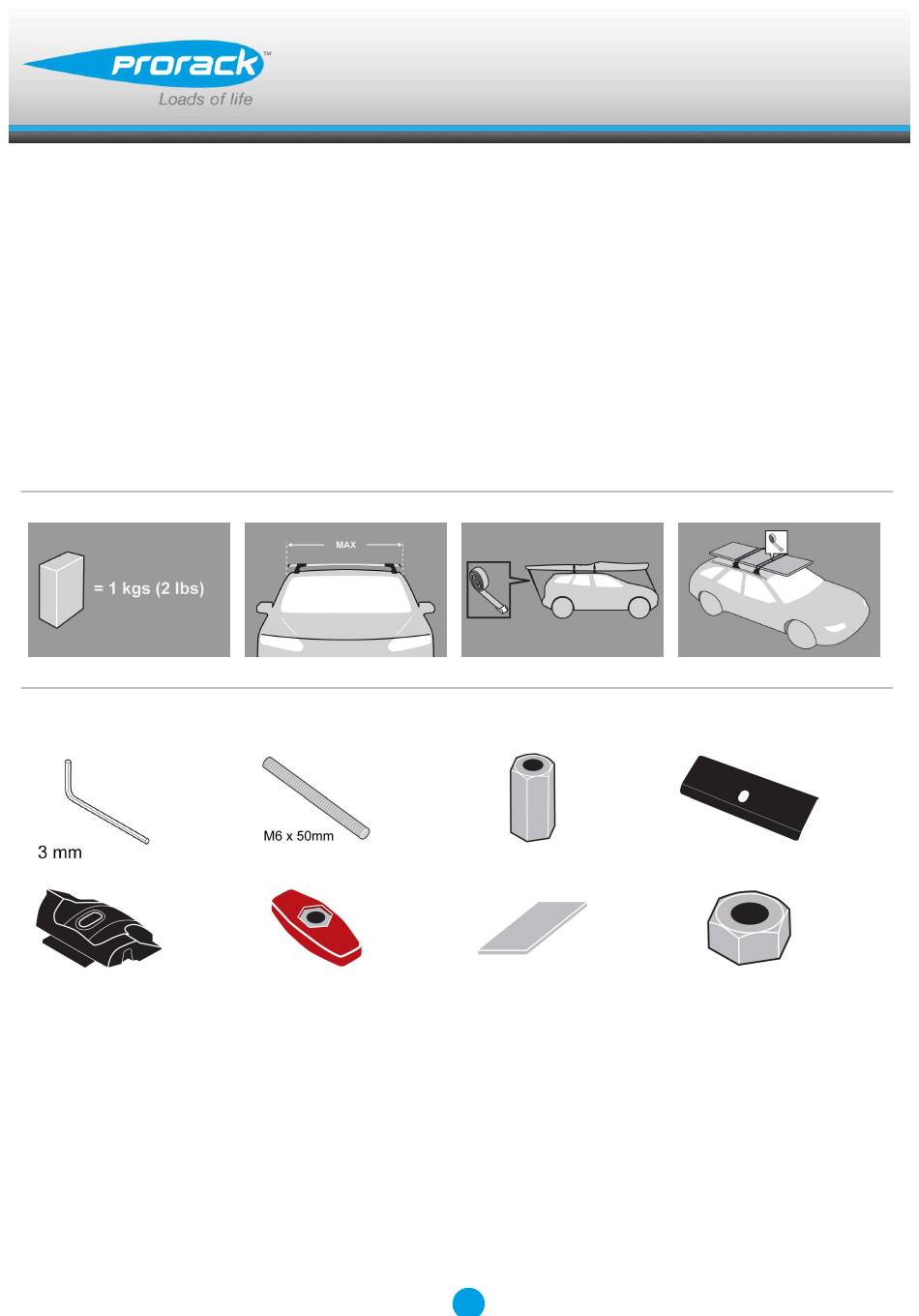

- Page 1 K448 Fitting Kit Fitting Instructions for Basic Carrier x 16 Revision No: 6D...
- Page 2 Fitting Kit K448 MAX kgs (lbs) Honda CR-V , 5dr SUV 07-11 75 kgs (165 lbs) 75 kgs (165 lbs) CR-V , 5dr SUV 07-11 75 kgs (165 lbs) 75 kgs (165 lbs) CR-V , 5dr SUV 07-12 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K448 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K448 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 5 Fitting Kit K448 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K448 Make sure the pad fits into the holes underneath the foot. Repeat for all legs. Fitment Open or remove fixed-point covers. The fixed point studs have a thick layer of paint. Remove paint by using the M8 nut supplied.
- Page 7 Fitting Kit K448 Repeat for all four positions. Fit the adaptor to each stud. Select four grubscrews and assemble them into the adaptor using 3 mm (1/8") Hex Key. Do not over tighten. Repeat for all four positions.
- Page 8 Fitting Kit K448 Apply protective strip as shown. Trim if required. Fit the four coverplates as shown. Place crossbar foot over grubscrews.
- Page 9 Fitting Kit K448 Tighten the red plastic knob. The side with the nut showing should be facing up. Ensure the red plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K448 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K448 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K448 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K448 CR-V, 5dr SUV 07-11 (EU) 100mm 770mm 852mm 804mm 3 15/16ths" 30 5/16ths" 33 9/16ths" 31 5/8ths" CR-V, 5dr SUV 07-11 (US) 100mm 770mm 852mm 804mm 3 15/16ths" 30 5/16ths" 33 9/16ths" 31 5/8ths" CR-V, 5dr SUV 07-12 (NZ)
-
