  • Page 1 Hydraulikholzspalter Operation manual Carefully read entire manual before operating the firewood maschine! Hydraulic log splitter HS 90-2Z - Set-up & installation - Use - Maintenance - Accessories Südharzer Maschinenbau GmbH 99734 Nordhausen, Helmestraße 94 Service Tel. 0 36 31 / 62 97 104 • Fax 0 36 31 / 62 97 E-Mail: info@bgu-maschinen.de...
  • Page 2 Südharzer Maschinenbau GmbH Helmestr. 94 99734 Nordhausen Tel: 0 36 31 / 62 97-0 Fax: 0 36 31 / 62 97 111 E-Mail. info@bgu-maschinen.de Internet: www.bgu-maschinen.de CE – Statement of Compliance with the CEE Machines Directive No. 98/37/CEE and and EMV 89/336/CEE We hereby declare that the equipment described in this manual responds in full to the actual version brought on the market.

  • Page 3: Table Of Contents

    Hydraulikholzspalter Content Page Introduction ---------------------------------------------------------------------------------- 4 1.1 Delivery and transport claims --------------------------------------------------------------------------------- 4 Product overviwe --------------------------------------------------------------------------- 5 Safety signs and decals ------------------------------------------------------------------ 6 Safety ----------------------------------------------------------------------------------------- 8 4.1 Mandatory application field ------------------------------------------------------------------------------------ 8 Operation -------------------------------------------------------------------------------------- 9 5.1 Assembling the hand-guards --------------------------------------------------------------------------------- 9 5.2 Hydraulic specifications ---------------------------------------------------------------------------------------- 9 5.3 Initial check-ups -------------------------------------------------------------------------------------------------- 9 5.4 Start-up procedure --------------------------------------------------------------------------------------------- 9...

  • Page 4: Introduction

    We are confident that our equipment will be up to all your expectations and assure you a long lasting quality and performance. This model "HS 90-2Z" is a PTO, tractor powered splitter with mechanical 2-hands control. 1.1 Delivery and transport claims Upon delivery of the machine please check for visual machine damages such as damaged packing or scrat- ched buckled parts.

  • Page 5: Product Overviwe

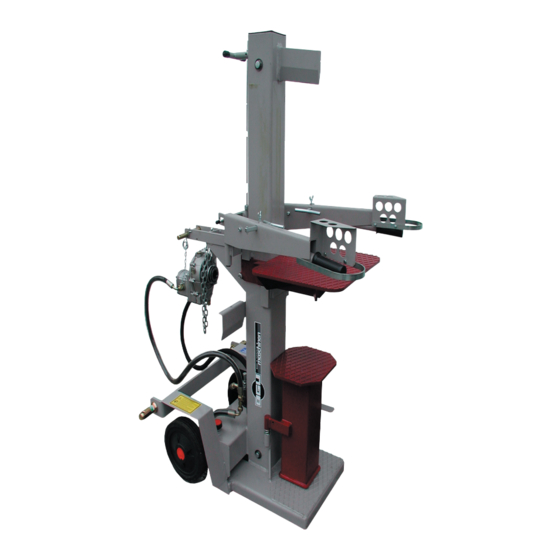

    Hydraulikholzspalter 2. Product overview Splitting wedge W e d g e 2-hands control lever riser Hand guard Top hitch point S h o r t - l o g s Arbor-mounted gears Construction stand Floor standing table Lower hitch pins Caster wheels Tank Seite 5...

  • Page 6: Safety Signs And Decals

    Hydraulikholzspalter 3. Safety signs and decals Seite 6...
  • Page 7 Hydraulikholzspalter Seite 7...

  • Page 8: Safety

    Hydraulikholzspalter 4. Safety Strictly perform installation, set-up, maintenance, cleaning and transportation with the motor switched off and the tool firmly secured against accidental operation. Immediately disconnect power off the machine in case of any eventual fault or trouble. The user shall strictly comply with these operation, set-up, maintenance, repair and troubleshooting instructions in order to assure safe operation and no damages to the equipment.

  • Page 9: Operation

    Hydraulikholzspalter BEWARE: this unit has a log capacity of min 70 mm and max 450 mm diameter. 5. Operation 5.1 Hand-guard assembly Uncrate the machine and assemble the special U-guards on the control handles before first use and installation. These hand-guards are delivered loose in the crate by the manufacturer for packing reasons.

  • Page 10: Operating Safety

    Hydraulikholzspalter Should any trouble or unusual behaviour be detected, do not start splitting wood until these have been fixed. 5.5 WARNING The location you choose for your machine should be flat, dry, and solid. Check around log splitter for hazards. Make sure that the area is free of slippery surfaces and objects to trip over.

  • Page 11: Operating Instructions

    Hydraulikholzspalter In order to adjust the clamps position, first release the wing-nut on the control handle and then fit the clamp on each side as desired. Once adjusted to the desired position, lock the clamps into position by tightening the wing-nut again. 5.9 Operation Start the motor and switch the splitter on.

  • Page 12: Connection And Disconnection To Pto Drive

    Hydraulikholzspalter 6. Connection and disconnection to PTO drive Make sure to perform accurate connection of your drive shaft both on the splitter and the power input side. This PTO-driven splitter is equipped with a three-point linkage to fit on the one available on your tractor. The drive shaft is going to act as linkage and driving element between the tractor and the splitter and should be therefore duly mounted and secured by the special pins available on the machine.

  • Page 13: Handling And Transportation

    Hydraulikholzspalter 7. Transportation 7.1 Handling the splitter on its own caster-wheels arrangement Make sure that power is fully switched off and that the arbor-mounted gears have been disconnected before transporting the machine. This machine is conceived for very ergonomic easy handling thanks to the special wheel arrangement in the rear bottom part of the machine.

  • Page 14: Ways Wedge, Splay Wedge And Wedge Extension

    Hydraulikholzspalter 8. 4-ways wedge, splay-wedge and wedge extension On request, the log splitter can be factory equipped with a 4-ways wedge, a splay wedge and/or a wedge extension. The 4-ways wedge is designed for splitting each log in 4 sticks in one cycle.

  • Page 15: Repairs And Maintenance

    Hydraulikholzspalter 9. Repairs and maintenance Make sure that the machine is fully disconnected and all moving parts are secured before performing any maintenance/repair work on the machine. In the event of any malfunctioning, switch the machine off before trouble-shooting. 9.1 Regular maintenance Make maintenance a regular part of daily operation.

  • Page 16: Technical Data

    Hydraulikholzspalter 10.Technical data Log length capacity on foot plate [mm] 1350 Log length on short-logs table [mm] 550 Log length on floor-type table [mm] 900 Ram stroke [mm] Minum log diameter [mm] Max log diameter [mm] Splitting power * Max. operating pressure [bar] Max.

  • Page 17: Other Area Of Possible Danger

    12. Warranty All BGU machines are covered with warranty terms in accordance with the law. Customers should promptly notify the manufacturer eventual material or production claims on their detection. While asking for warranty service, customer should show copy of their purchase invoice or receipt.

  • Page 18: Troubleshooting

    Hydraulikholzspalter 13. Troubleshooting Type of malfunction Possible origins of the problem Solutions The wedge doesn't rise - The driveshaft turns in the wrong direction - Check and adjust - Oil level is too low - Fill new oil in The wedge doesn't lower - Same as above - Same as above Wedge moves slowly or...

  • Page 19: Spare Parts List

    Hydraulikholzspalter Seite 19...
