  • Page 1 MODELS - Use - Maintenance USP 13 - 6, USP 16 - 2, USP 22-2 - Accessories We manufactu- re in Germany Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Zentrale: 49(0)3631/6297-0 ∙ -111 +  Internet: www.bgu-maschinen.de e-mail: info@bgu-maschinen.de...

  • Page 2: Table Of Contents

    CONTENT INTRODUCTION 1.1 About the manual 1.2 Delivery and transport claims PRODUCT OVERVIEW (model usp 13 HZE-6) WARNING LABELS AND SAFETY DECALS SAFETY 4.1 Mandatory application field 5. ABOUT THE MACHINE 6. OPERATING INSTRUCTIONS 6.1 Adjusting the ram stroke length 6.2 Two-speeds operating mode 6.3 Function of the safety bracket 6.4 Setting the machine ready to work...
  • Page 3 14. attachments 14.1 Radio-controlled winch FSW 750 D (Optional Art. Nr. 96010) 14.2 Tow bar with steering wheel (Optional Art. Nr. 94757) 14.3 Hydraulic log lifter (Optional Art. Nr. 94721) 14.4 Intermediate table (Optional) 14.5 Snap-in 4-ways wedge (Optional rt. Nr. 94716) 14.6 Mechanical log lifter (Optional Art.

  • Page 4: Introduction

    INTRODUCTION Dear customer, thank you very much for your trust and preference in choosing our equipment and joining the number of our best customers in the world. We are confident that our equipment will be up to all your expectati- ons and assure you a long lasting quality and performance.
  • Page 5 Also have the truck driver sign al copies of the delivery bill. Should your shipper or the truck driver refuse to accept your claim, fully reject delivery and make sure to inform us (the manufacturer) immediately. No claims shall be taken into account by the shipper or by the insurance company, if a reservation note is not made on the delivery bill.

  • Page 6: Product Overview (Model Usp 13 Hze-6)

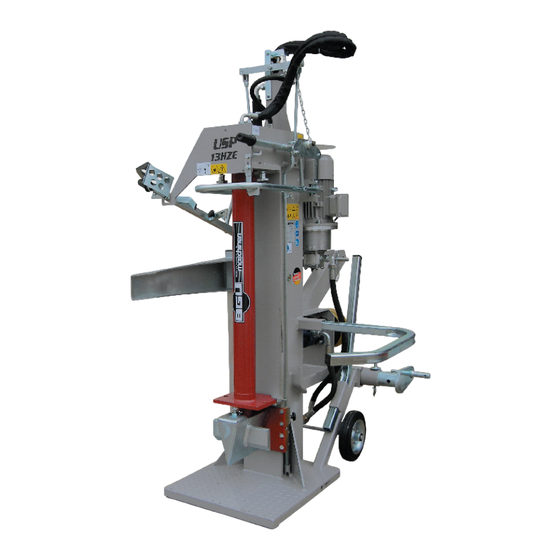

    PRODUCT OVERVIEW (MODEL USP 13 HZE-6) Control lever, right hand side Control lever, left hand side Piston rod Safety U-clamp Control rod Splitting wedge Upper hitch pin Vertical beam Log fender Oil tank Lower hitch pin Wheel Floor plate...

  • Page 7: Warning Labels And Safety Decals

    WARNING LABELS AND SAFETY DECALS 1. Machine safety label „Before setting-up, servicing, maintaining and clea- ning the machine, disengage power and stop the engine. Lock the tool and secure it against acciden- tal start.“ This safety label reminds users of a pinched hands danger. 2.
  • Page 8 10. Production label „Product identification“ This label shows the company details of the manufacturer and the main machine technical data. 11. Identification label “BGU-maschinen” manufacturer’s logo 12. Personal safety label „Wear suitable protective cloths and boots“ 13. Personal safety label “WARNING! Always wear safety gloves”...

  • Page 9: Safety

    SAFETY Strictly perform installation, set-up, maintenance, cleaning and transportation with the motor switched off and the machi- ne firmly secured against accidental operation. Immediately disconnect power off the machine in case of any eventual fault or trouble. Users shall strictly comply with these operation, set-up, maintenance, repair and trouble-shooting instructions in order to assure safe ope- ration and no damages to the equipment.

  • Page 10: Mandatory Application Field

    4.1 Mandatory application field The log splitter is strictly designed for one-man operation. Never al- low more than one person approach and work on the machine at the same time. This splitter is conceived for splitting short and long logs for firewood preparation only.

  • Page 11: About The Machine

    5. ABOUT THE MACHINE The log splitter is equipped with two-hands safety control. This professional upright log splitter has own inbuilt hydraulic system with pump and and oil reservoire into the vertical beam. The machine comes from the factory with a first oil fill. A special level gauge on one side of the beam provides for convenient oil level checkup.

  • Page 12: Operating Instructions

    6. OPERATING INSTRUCTIONS Locate your splitter only on firm, level ground. Site must be free of slippery surfaces and tripping obstacles. The location you choose should be flat, dry, and free from any interference. Slippery foundation floors should be duly treated. For increa- sed stability and safety, make sure to always load chunks on their flat sawcut face.

  • Page 13: Two-Speeds Operating Mode

    6.2 Two-speeds operating mode Press the control handle completely down to drive the ram down at its fast-speed. If no throuhg-splitting is required, the ram must be ope- rated at its slow speed (=more power). In order to do so, slightly re- lease one of the two levers (preferably the right-hand one).

  • Page 14: Setting The Machine Ready To Work

    6.4 Setting the machine ready to work To convert the machine from transport to splitting asset : 1. Engage the safety U-clamp → Hook up the clamp to its catch (Pos.7, Fig. 7) 2. Remove (unscrew) both pommel grips (Pos. 8, Fig.8) 3.

  • Page 15: Working With The Intermediate Table

    6.6 Working with the intermediate table With hinged intermediate table (accessory) the lower switching jack ust solved and in the middle hole of the control rod be attached. Then unhook the safety bar, now can be cleaved. After the operation, the cylinder is moved upwards, the Abschaltbuchse the control rod back into the lower hole of the Attached control rod and then removed the table.

  • Page 16: Transportation

    7. TRANSPORTATION This machine is conceived for very ergonomic, easy handling thanks to the special wheel arrangement in the rear bottom part of the ma- chine. For long distance transportation, the machine can be conveni- ently handled on the three-point linkage of your tractor. To perform handling by rolling on its own wheels, first plug the pull- rod (9) in the upper 3-point hitch and firmly secure it by means of the pin.

  • Page 18: Start-Up

    8. START-UP Before first use, make sure that the log splitter is in good conditions and that there are no visual damages. Should any trouble or unusu- al behaviour be detected, do not start splitting wood until these ha- ve been fixed. First stop the machine, remove the cause of the trou- ble and if required let skilled personnel perform a chekup before you start working again.

  • Page 19: Tractor Drive (Pto)

    8.3 Tractor drive (PTO) Before uncoupling the processor, make sure to stop the tractor engine in order to avoid damaging the tractor power drive.c 8.4 Direct connection to tractor hydraulics Connect pressure to the coupling hose with a red mark and return flow to the coupling hose with a green mark.

  • Page 20: Repairs And Maintenance

    REPAIRS AND MAINTENANCE Make sure that the machine is fully disconnected and all moving parts are secured before performing any main- tenance/repair work on the machine. In the event of any malfunctioning, switch the machine off before trou- ble-shooting. 9.1 Ordinary maintenance Make maintenance a regular part of daily operation.
  • Page 21 When operating the splitter after a long storage time, it is possible that the ram performs slow, jerky travel. If so, the suction filter may be dirty. Change the hydraulic oil and clean it before starting again. Oil or grease the wedge slinding pads after every 10 operation hours. Replace the oil filter in the hydraulic system after the first 150 opera- tion hours and then every time when a new oil fill is done.

  • Page 22: Dismounting/Disposing Of An Obsolete Machine

    10. DISMOUNTING/DISPOSING OF AN OBSOLETE MACHINE When the splitter is fully obsolete and cannot be of any longer use, it should be duly dismounted ahead of discarding. Certain components need deactivation and dismantling in order to assure that no further use is made by other parties and that no worn out parts are recycled- for other applications.

  • Page 23: Technical Data

    11. TECHNICAL DATA TECHNICAL DATA Unit of mea- USP 13 USP 13 USP 13 USP13 surement HZ-6 HE-6 HZE-6 Splitting power * Motor power P1 Motor speed 2845 2845 Max. operating pressure Max. log capacity 1100 1100 1100 1100 Height of the pressure plate (table) Ram speed 1 Depen- 9 or 25...
  • Page 24 TECHNICAL DATA Unit of mea- USP 16 USP 16 USP 22 surement HZ-2 HZE-62 HZ-2 Splitting power * Tractor power requirements KW/PS 20/27 20/27 20/27 Motor power P1 Motor speed 2845 Max. operating pressure Max. log capacity 1100 1100 1100 Height of the pressure plate (table) Ram speed 1 s/mm...

  • Page 25: Wiring Diagram

    12. WIRING DIAGRAM BEWARE: only let expert skilled staff do electric repair/mainte- nance works! As for all electric tools and equipment we strongly recommend use a portable residual current device(PRCD), unless you already have a residual current device (RCD) in your house assuring safety and protection up to max 0.03A nominal fault current.

  • Page 26: Other Areas Of Possible Danger

    13. OTHER AREAS OF POSSIBLE DANGER 13.1 Mechanical dangers The special two-hand control mechanism minimises risks and dangers related to moving parts on the machine. An additional safety is provided on the ma- chine in order to prevent working with only one handle while the other one is being engaged (held down) by some mechanical tool or system.

  • Page 27: Attachments

    14. ATTACHMENTS 14.1 Radio-controlled winch FSW 750 D (Optional Art. Nr. 96010) A 12 V power outlet is required for operating an hydraulic forestry winch model FSW 750 D. The winch is supplied with integrated sender and belt clip. The winch has a pull-force of 750 kg and a 30 m long rope. Oil is sup- plied from the splitter through the special pressure outlet.

  • Page 28: Intermediate Table (Optional)

    14.4 Intermediate table (Optional) • Only for short-logs splitting (max. 70 cm long chunks) • Easy to install and hookup Fig. 19 14.5 Snap-in 4-ways wedge (Optional rt. Nr. 94716) • 4-ways wedge, easy fitting on the existing standard wedge of your splitter to perform cutting of a log into 4 pieces.

  • Page 29: Legal Warranty

    15. LEGAL WARRANTY All our machines are covered with legal warranty. Customers should promptly notify eventual material, production or workmanship claims on their detection. While asking for warranty service, customers should show copy of their purchase invoice or receipt. The warranty does not cover for faults due to natural wear, temperature or weather agents as well as misuse, faulty installation or improper lubrication.

  • Page 30: Ersatzteilliste

    17. ERSATZTEILLISTE...

  • Page 31: Ec-Statement Of Compliance

    18. EC-STATEMENT OF COMPLIANCE to EC Machines Directive No. 2006/42/EG and EMV 108/2004 CEE We hereby declare that the equipment described in this manual responds in full to the actual version brought on the market. We, the manufacturer further declare that this equipment was duly designed and manufactured in accordance with the actual European Safety and Health Standards settled by the relevant EEC directives as well as the latest electromagnetic standards issued by the European Council of 3.5.89 and later enforcedby all member states.
  • Page 32 Form: 2129.15.07.2011 - Rev. A Form: 2130.15.07.2011 - Rev. A Südharzer Maschinenbau GmbH Form: 2135.15.07.2011 - Rev. A Helmestraße 94 ∙ 99734 Nordhausen/Harz Form: 2136.15.07.2011 - Rev. A Service-Tel. 03631/6297-104 ∙ Fax 03631/6297-111 Internet: www.bgu-maschinen.de Form: 2137.15.07.2011 - Rev. A e-mail: service@bgu-maschinen.de...
