USER'S MANUAL
Carefully read these instructions before starting
and using your log splitter!

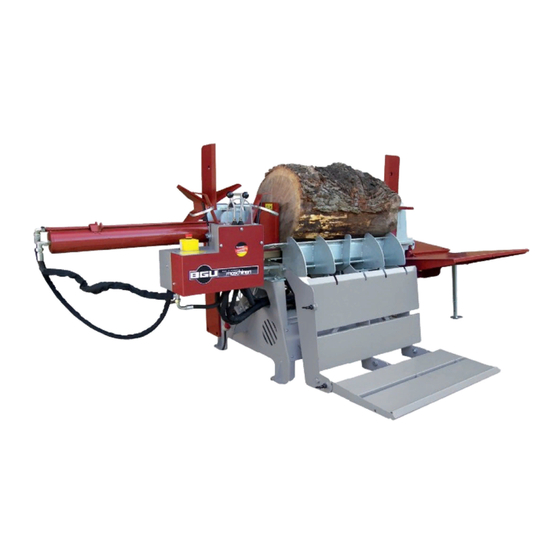

HYDRAULIC LOG SPLITTERSPALTPROFI
SP 20 HZH/2 - HEH/2 - HZEH/2
Südharzer Maschinenbau GmbH
Helmestraße 94 ∙ 99734 Nordhausen/Harz
Zentrale:
Internet: www.bgu-maschinen.de
e-mail: info@bgu-maschinen.de
03631/6297-0 7-111
Advertisement
Table of Contents
Related Manuals for BGU SP 20 HZH/2
Summary of Contents for BGU SP 20 HZH/2
- Page 1 USER‘S MANUAL Carefully read these instructions before starting and using your log splitter! HYDRAULIC LOG SPLITTERSPALTPROFI Set-up & installation SP 20 HZH/2 - HEH/2 - HZEH/2 Maintenance Accessories We manufactu- re in Germany Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Zentrale: 03631/6297-0 7-111...
-
Page 2: Table Of Contents
CONTENTS CONTENTS 1.1 About the manual 1.2 Delivery and transport claims Product overview Safety rules 4.1 Mandatory application field 5.1 Electrical specifications (SP 20 HEH/2 and SP 20 HZEH/2) 5.2 Hydraulic specifications 5.3 Attaching the machine to a tractor (SP 20 HEH/2 and SP 20 HZEH/2) 5.4 Getting started 5.5 Safe operating practices 5.6 Operation and start-up rules... -
Page 3: Contents
CONTENTS Dear customer,thank you very much for your trust and preference in buying this log splitter! Our log splitter is available in the following two versions: SP 20 HZH/ 2 SP 20 HZH/ 2 with electric motor SP 20 HZEH/2 power combination with electric motor and PTO 1.1 About the manual Please take time to read this manual and learn to how operate and... - Page 4 Also have the truck driver sign al copies of the delivery bill. Should your shipper or the truck driver refuse to accept your claim, fully reject delivery of the machine and make sure to inform us (the manufacturer) immediately. No claims will be taken into account by the shipper or by the insurance company, if a reservation note is not made on the delivery bill.
-
Page 5: Product Overview
PRODUCT OVERVIEW Splitter wedge Splitter wedge Push-block Splitter carriage Splitte Hydraulic cy- Hydraulic cy- Wood collection Wood collection linder table Stand Timber lift - Part 2 Timber lift Part 1 Timber lift Part... - Page 6 4. Machine safety label „Pinched hands danger“ Wear suitable protective gloves! Pinched hands danger in the wedge hazard area. 5. Manufacturer logo„BGU-Maschinen - Logo“ 6. Production label „Production label „Product iden tifi cation““ This label shows the company details of the manufacturer and the main machine technical data.
- Page 7 9. Personal protection pictogram “Wear ear plugs and goggles!” 10. Personal protection sign „Mind these instructions! 11. Machine safety label „CAUTION: mind for driveshaft revolutions!“ 12. Label „guidances all 10 company hours to smear „...
-
Page 8: Safety Rules
SAFETY RULES Strictly perform installation, set-up, maintenance, cleaning and transportation with the motor switched off and all moving parts firmly secured against accidental operation. The user shall strictly comply with these operation, set-up, mainte- nance, repair and trouble-shooting instructions in order to assure safe operation and avoid damages to the equipment. -
Page 9: Mandatory Application Field
Make sure that all access ways are properly maintained so that wood can be safely delivered, loaded and shipped. 4.1 Mandatory application field Log splitters are one-man operation machines. No second operator or bystanders are allowed on the machine while working. The machine is strictly designed to split firewood along the wood fibres. -
Page 10: Use
5.1 Electrical specifications (SP 20 HEH/2 and SP 20 HZEH/2) Connect the 400V motor using a 25 m long power cable in a mini- mum section of 1.5 mm2. Make sure to connect the neutral return wire of the conductor cord or the machine won‘t start! A switch-plug combination outlet provides power supply to the machine. -
Page 11: Attaching The Machine To A Tractor (Sp 20 Heh/2 And Sp 20 Hzeh/2)
5.3 Attaching the machine to a tractor (SP 20 HEH/2 and SP 20 HZEH/2) The machine is equipped with a three-point linkage to fit on the one Lu=pay length available on your tractor. The drive shaft is going to act as linkage and driving element between the tractor and the splitter and should be Shortest length = fully wrapped therefore duly mounted and secured by the special pins available on... -
Page 12: Operation And Start-Up Rules
5.6 Operation and start-up rules Connect your log splitter to the tractor using a PTO shaft (see para- graph 5.3) or connect the electric motor to your home power supply network. Before starting to work with your log splitter, release the locking bolt (1) used to secure the log lift in its transport asset. -
Page 13: Transporting The Machine
TRANSPORTING THE MACHINE As for any electric tool make sure to disconnect the electrically operated splitter from the power network before handling, mo- ving or transporting it away. The machine can be transported over long distance by means of a trac- tor. -
Page 14: Gap Cross
• Manually muscle the ram (7) into transport position (see Fig. 6 and 7) Fig. 6 • Secure the ram using the star-knob (5) and install the stop plate (6) (see Figure 8) Fig. 7 Fig. 8 GAP CROSS • Our Spalter are equipped serially with the 4-th gap cross. •... -
Page 15: Repairs And Maintenance
REPAIRS AND MAINTENANCE Make sure that the machine is fully disconnected and all moving parts are secured before performing any maintenance/cleaning work on the machine. In the event of any malfunctioning, switch the machine off be- fore trouble-shooting. 8.1 Ordinary maintenance Make maintenance a regular part of daily operation. -
Page 16: Consumables
To perform an oil change the following steps should be followed: Make sure that the splitter in fully disconnected from its po- wer source! • Remove the drain plug located on the bottom tank side and place a sealed oil collection container underneath it (oil disposal contai ners should be of at least 60 l capacity) •... -
Page 17: Disabling And Scrapping
DISABLING AND SCRAPPING When the splitter is fully obsolete and cannot be of any longer use, it should be duly dismounted ahead of discarding. Certain components need deactivation and dismantling in order to assure that no further use is made by other parties and that no worn out parts are recycled for other applications. -
Page 18: Technical Specifications
10. TECHNICAL SPECIFICATIONS Technical data SP 20 Unit of HZH/-2 HEH-2 HZEH/-2 measure- ment Splitting force Min. log capacity Max log capacity 1100 1100 1100 Max operating pressure 250/160 250/160 250/160 Tractor power requirements KW/PS 30/45 30/45 Tank capacity Max number of driveshaft Domestic overload safety 1 x 32 fuses 1 x 32 fuses... -
Page 19: Wiring Diagram
11. WIRING DIAGRAM BEWARE: only let expert skilled staff do electric repair/mainte- nance works! As for all electric tools and equipment we strongly recommend use a por- table residual current device (PRCD), unless you already have in your house a residual current device (RCD) set for max tripping current of 0.03 Amp assuring safety and protection. -
Page 20: Other Areas Of Possible Danger
12. OTHER AREAS OF POSSIBLE DANGER 12.1 Mechanical dangers Possible dangers related to machine moving parts (wedge) are mi- nimized by means of the two-hands operating system. The machine won’t start, if any of the control levers is permanently held down in its operating position. -
Page 21: Legal Warranty
13. LEGAL WARRANTY All BGU machines are covered with warranty terms in accordance with the law. Customers should promptly notify the manufacturer eventual material or production claims on their detection. While asking for war- ranty service, customer should show copy of their purchase invoice or receipt. -
Page 22: Spare Parts List
15. SPARE PARTS LIST 30,78 40,59,67,59,74 29,78 43,60,52 26,2x68 46,2x54,70 34,2x54,70 47,65,55 32,2x53,69 33,2x54,70 43,60,52 48,64,54 37,62,56,72 49,2x56,72 35,61,66,61,71 42,69 44,2x54,70 45,2x54,70 42,69 Ventilhebel von Steuerventil 53183 (USP) verwenden! 45,13,54,70... - Page 23 25,2x68 36,2x55,71 1,2x59,74 51,62 Maßstab Oberfläche Werkstückkanten DIN Gewicht:- DIN ISO Allgemeintoleranz ISO 2768 - mK Tolerierung DIN 7167 1302 REVISIONSVERLAUF Südharzer Maschinenbau REV. BEZEICHNUNG DATUM GENEHMIGT Nordhausen 27/10 16.08.2010 O.
- Page 24 Pos. N u m b e r Code no. Description Size & Dimen- of pcs. sions 24697 Stand 24698 Collection table, complete assembly 24700 Push-block, complete assembly 24750 Carriage, complete assembly 24702 Control unit, complete assembly 24761 Timber lift, part A 24766 Timber lift, part B.
- Page 25 Pos. N u m b e r Code no. Description Size & Dimensions of pcs 51445 Hex screw M8x25 51456 Hex screw M8x75 51463 Hex screw M10x30 51470 Hex screw M10x70 51480 Hex screw M12x40 51490 Hex screw M16x40 53338 Hex screw M16x65 56047...
- Page 26 Pos. Number Code no. Description Size & Dimensions of pieces 51707 Spring washer 51194 Crinkle washer 51199 Crinkle washer 51672 Lock washer 20x1,2 51606 Hex nut 51607 Hex nut 51608 Hex nut 51609 Hex nut 51611 Hex nut 53984 Hex nut 51639 Split pin 4x22...
-
Page 27: Ec Statement Of Compliance
EEC directives as well as the latest electromagnetic standards issued by the European Council of 3.5.89 and later enforced by all member states. This statement of compliance does not apply to customer modifications of the equipment without Spaltprofi Machine type: SP 20 HZH/2 Models: SP 20 HEH/2 SP 20 HZEH/2 Production No.: see product identification label... - Page 28 Subject to changes without notice Südharzer Maschinenbau GmbH Form: 2042.09.03.2017 - Rev. D Helmestraße 94 ∙ 99734 Nordhausen/Harz Form: 2046.09.03.2017 - Rev. D Service-Tel. 03631/6297-104 ∙ Fax 03631/6297-111 Internet: www.bgu-maschinen.de Form: 2047.09.03.2017 - Rev. D e-mail: info@bgu-maschinen.de...
