A.J.Antunes MT-12 Owner's Information

Mfg. Numbers 9200131, 134, 136, 137, 138, 140, 144, & 150
Place this manual in the Toaster section
of your Equipment Manual.
Manufactured exclusively for
McDONALD'S ®
BY
A.J. ANTUNES & CO.
180 KEHOE BLVD.
CAROL STREAM, ILLINOIS 60188, U.S.A.
PHONE: 1-630-784-1000
TOLL FREE: 1-877-392-7854 (USA Only)
FAX: 1-630-784-1650
www.ajantunes.com
Owner Information .....................................................2
General ......................................................................2
Warranty Information .................................................2
Service/Technical Assistance ....................................2
Important safety information .....................................3
Specifications .............................................................5
Electrical Ratings .......................................................5
Electrical Cord & Plug Configurations .......................5
Dimensions ................................................................6
Installation ...................................................................7
Unpacking ..................................................................7
Location .....................................................................7
Keep these instructions for future reference. If the unit changes ownership,
The Antunes Food Service Equipment Division of A.J. Antunes & Co. provides the following limited warranty to the original purchaser of all McDonald's Equipment.
All components are warranted against defects in the material and workmanship for a period of two (2) years from date of original installation.
If any part becomes defective during period of this Warranty, Antunes Food Service will pay negotiated straight time labor costs to an Authorized Service Agent to
replace the part, plus travel expenses up to 50 miles/80 km, 1 hour each way (100 miles/160 km, 2 hours round trip).
WARRANTY EXCLUSIONS
• The cost of Installation.
• Equipment that has been damaged due to shipment. Purchaser should
make damage claim directly upon carrier.
• Alteration, misuse, abuse.
• Improper storage or handling.
• Improper maintenance.
• Failure to follow proper Installation instructions, including electrical connec-
tion.
• Improper or unauthorized repairs.
• Scheduled Maintenance procedures as outlined in your MRC Card.
Antunes Food Service reserves the right to make changes in design or add improvements on any products. The right is always reserved to modify Equipment
because of factors beyond our control and government regulation. Changes to Equipment do not constitute a warranty charge.
This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular pur-
pose, each of which is expressly disclaimed. The remedies described above are exclusive, and in no event shall A.J. Antunes & Co. or any of its Divisions be liable
for special consequential or incidental damages for the breach or delay in the performance of this warranty.
This manual is for the exclusive use of licensees and employees of McDonald's Systems, Inc. © McDonald's Corporation All Rights Reserved
P/N 1010610 Rev. Q 10/15
Original Instructions - McDonald's

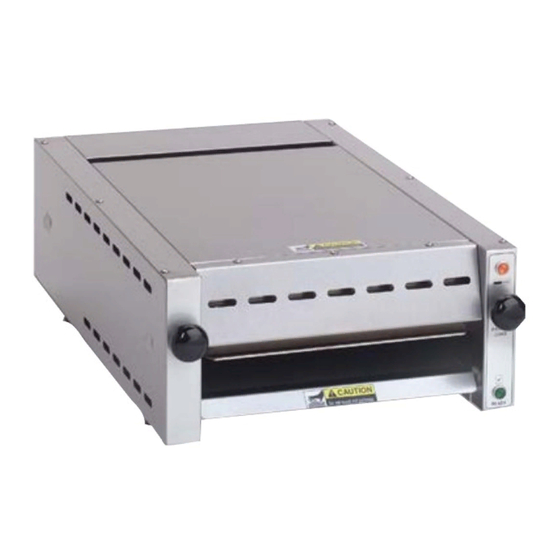

MUFFIN TOASTER
MODEL MT-12
A.J. Antunes & Co.
ITS
Scan with mobile device or enter URL
Testing & Certification
for product and service information.
geprufte
Sicherheit
http://tiny.cc/ajaMT12

TABLE OF CONTENTS

IMPORTANT
be sure this manual accompanies the equipment.
LIMITED WARRANTY
MT-12
Operation .....................................................................8
Hi-Limit Reset Button ..............................................10
Maintenance ..............................................................10
Maintenance Schedule ............................................10
Function of Diagnostic LEDs ...................................12
Troubleshooting .......................................................13
Replacement parts ...................................................16
Wiring Diagrams .......................................................19
NOTES .......................................................................20
• This Warranty does not cover Consumable items.
• Water pressure problems or contamination problems such as foreign material
in water lines or inside solenoid valves due to an incoming water source.
• Overtime or Holiday charges.
• Mileage over 50 miles/80 km (100 miles/160 km round-trip), or travel time
over two (2) hours.
• Freight, foreign, excise, municipal or other sales or use taxes.
• Consequential damages such as loss of profit, loss of time, the cost of repair-
ing or replacing other property which is damaged, or any other incidental
damage of any kind.
1
