1.4 Display Connection

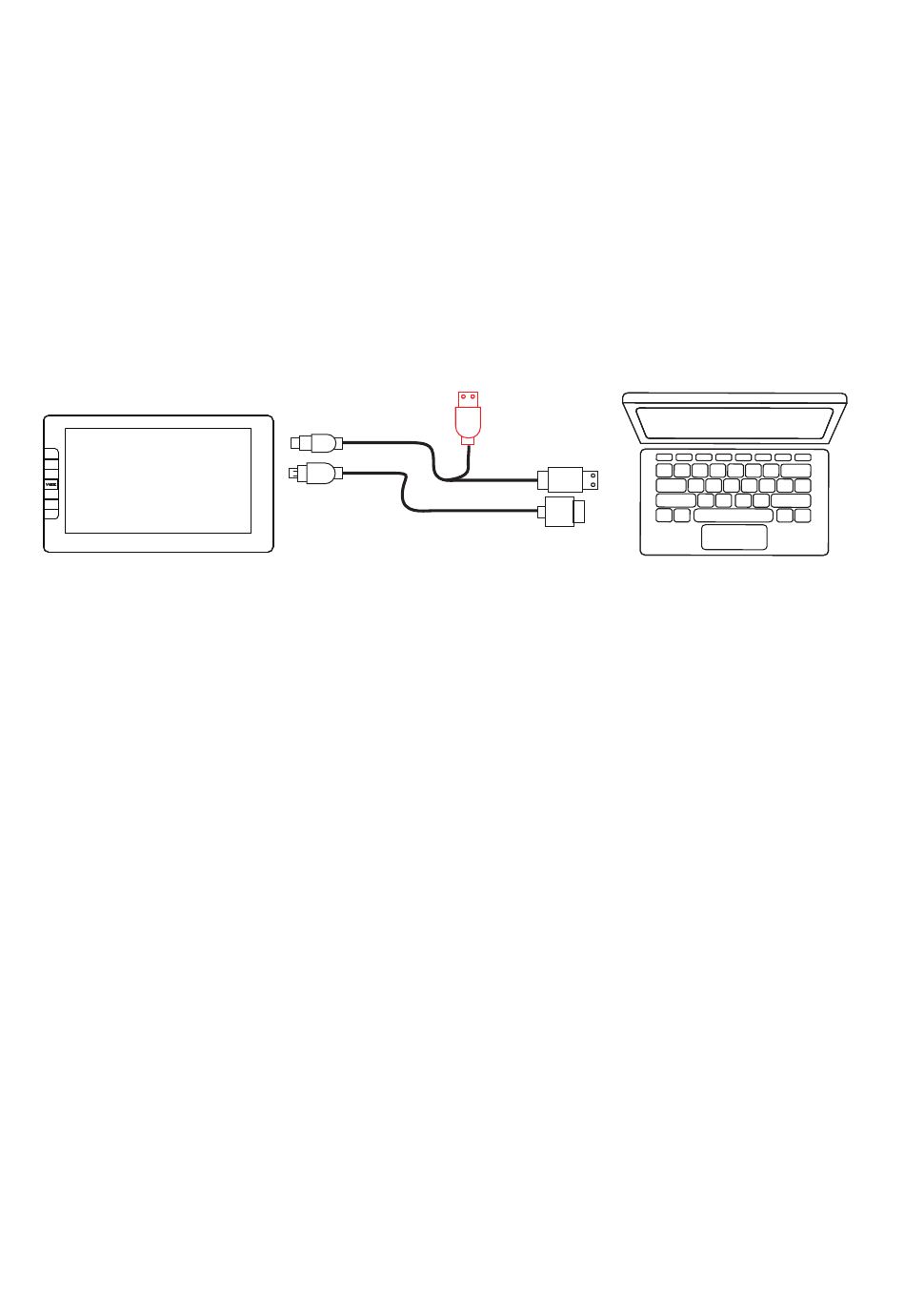

Connect the pen display to your computer with the USB cable and HDMI cable.
1. Plug Micro-HDMI connector into VK1200, then connect Type-A HDMI connector
into computer.
2. Plug the Type-C USB connector into VK1200, then connect the black Type-A
USB connector into computer.
Note:
1. Generally the device can be powered on when the black USB-A connector is
connected to your computer. A flashing screen of the device may indicate a low
battery, in which case, you are suggested to connect the red colored USB-A cable
to another USB interface on your computer or the power adaptor. The power
adaptor is not included in the package. Power adaptor of your mobile phone is also
compatible.
2. If connected properly, after pressing the power button on the VK1200, the VK1200
display will be turned on successfully.
Red Type-A
USB Cable
Type-C USB
Connector
Micro-HDMI
Connector
5
Black Type-A
USB Connector
Type-A HDMI
Connector
