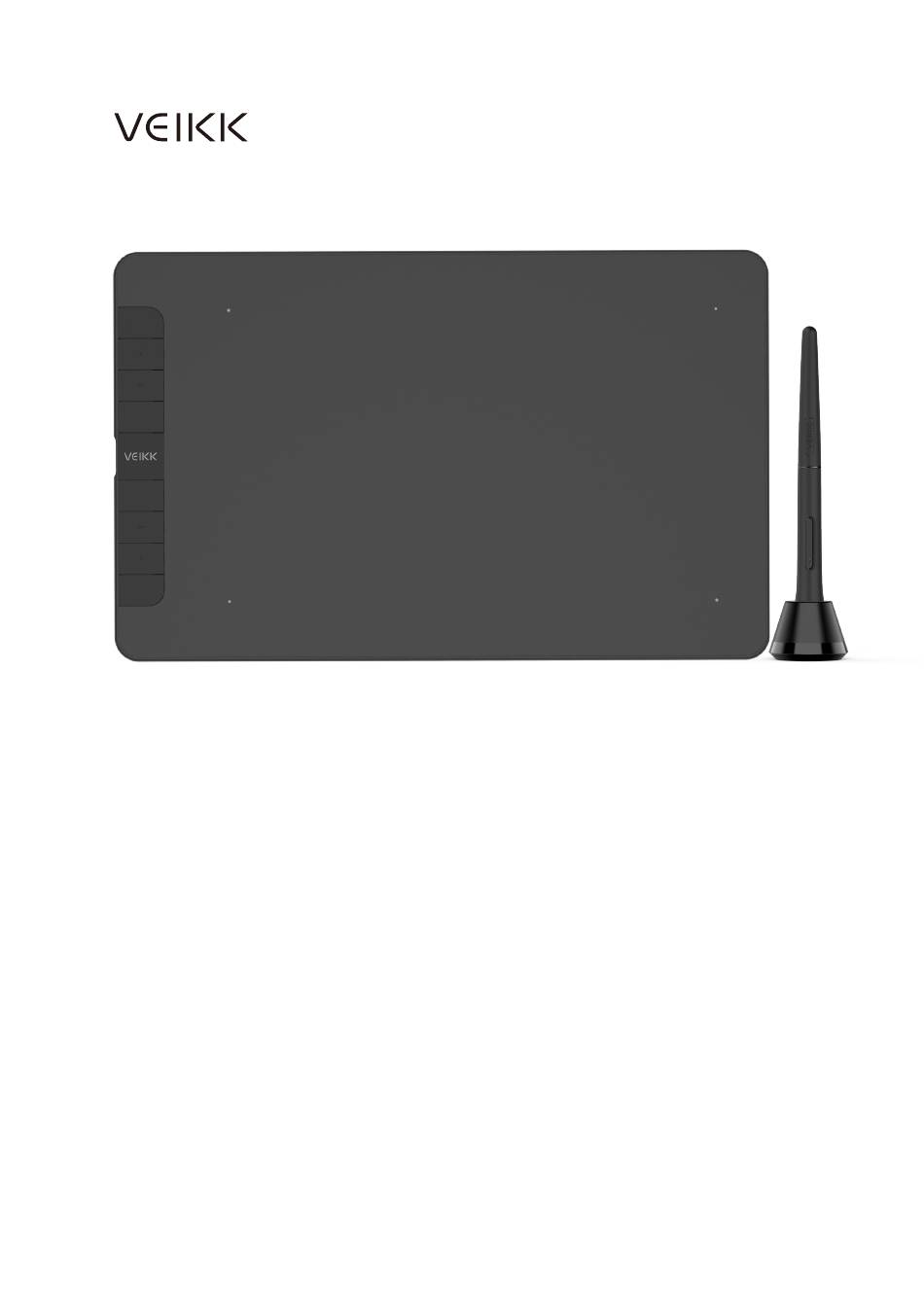

- Page 1 8 Shortcut Keys perfect your creating process User Manual BATTERY-FREE PEN TABLET VK1060 Graphic Pen Tablet www.veikk.com...
- Page 2 Safety Precautions Do not use this product in a control system that requires a high degree of safety and reliability. In such a system, this product may negatively affect other electronic devices and malfunction due to the effect of those devices. Turn the power off in the areas where electronic devices are prohibited. On board an aircraft or in any other location where electronic devices are prohibited, please unplug the USB connector from the tablet to turn it off. Keep out of reach of children to avoid danger. Make sure that a child does not put the pen or pen tip in his/her mouth. The pen tip or side switch cover could be detached and be accidentally swallowed. Do not place this product on an unstable surface.
- Page 3 Do not place heavy objects on top of this product. Do not step on or place heavy objects on this product as this could damage it. Avoid high or low-temperature locations for storage. Do not store this product in a location where the temperature drops below 5℃ or goes above 40℃ and in locations subject to excessive temperature fluctuations to avoid damage to the product. Do not disassemble.
- Page 4 Do not place metal objects on this product during operation. Placing metal objects on this product during operation could cause it to malfunction or damage it. Do not strike the pen against hard objects. Striking the pen against hard object could damage it. Do not handle the pen with soiled hands. The pen is a high-precision instrument. Handling it with soiled hands or using it in locations exposed to dust or strong odors may cause the entry of foreign matter which will result in breakdown. Limitation of Liability VEIKK shall in no event be liable for damages resulting from fires or earthquakes, those caused by third parties and those arising from user misuse, abuse or neglect. VEIKK shall in no event be liable for incidental damages-including but not limited to loss of business income, interruption of business activities, corruption or loss of data that arise out of the use or failure to use this product. VEIKK shall in no event be liable for damages resulting from uses not documented in this manual. VEIKK shall in no event be liable for damages from malfunction caused by connection to other devices or use of third party software.
-
Page 5: Table Of Contents
Catalog 1.Product Overview..............1 2.Packing List................2 3.Installing Driver................ 2 4.Tablet Connection..............3 5.Replacing the Nibs..............4 6.Specifications................4 7.Driver Settings................5... -
Page 6: Product Overview

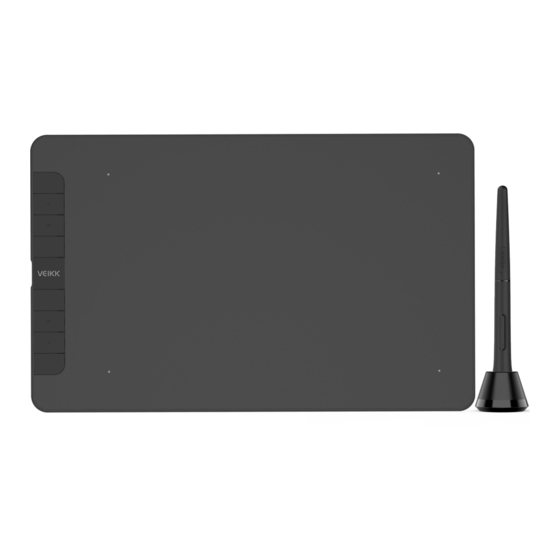

1.Product Overview LED Indicator Shortcut Keys Active Area VEIKK Logo Pen Nib Button 1 Button 2 Note: The passive pen requires neither battery nor charging. -
Page 7: Packing List
3. Please download the driver from www.veikk.com. 4. Click Set up.exe and follow onscreen instructions. 5. Restart your computer after installation. For Chrome OS computer and the Android mobile phone: No need to install VEIKK driver on the Chrome OS computer and the Android mobile phone. -
Page 8: Tablet Connection
4.Tablet Connection For Mac OS, Windows and Linux OS computer: 1. Connect the tablet to your computer with USB cable. 2. Open the driver interface. If the product model shows at the upper left corner, this indicates that the tablet has been connected successfully. You can start using your tablet. For Chrome OS computer: Connect the tablet to your Chrome OS computer with the USB cable, then you can start using your tablet. -
Page 9: Replacing The Nibs
5.Replacing the Nibs When the pen nib is heavily worn, please replace the nib with the nib removal. 6.Specifications 8 Shortcut Keys... -
Page 10: Driver Settings
7.Driver Settings Windows: 7.1 Pen: 7.1.1 Pen Function Settings You may customize the functions of pen buttons. Use the “Pen” option to program custom keystrokes. 7.1.2 Current Pen Pressure Current Pen Pressure shows the current pressure level being exerted on your tablet and can be used to test pen pressure. - Page 11 7.1.3 Click Sensitivity You can adjust pen pressure to “Output” or “Input” sensitivity on here. 7.2 Mapping Define the tablet area that will be mapped to the screen area.
- Page 12 7.2.1 Screen Mapping All Area: the entire active area of the tablet. This is the default setting. Part Area: Click Part...
- Page 13 Then go to the next page, select one of the following three ways to define the screen range. Monitor1: If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to. If your monitors are in mirror mode(All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.
- Page 14 7.2.2 Working Area All Area: the entire active area of the tablet.This is the default setting.
- Page 15 Part Area: Click Part Then go to the next page, select one of the following three ways to define the pen tablet partial.
- Page 16 7.2.3 Enable Windows Ink Function This capability can be toggled on and off here. Enabling this will allow support for Windows Ink and applications that run using Windows Ink. 7.3 Function Customize the keys functions for different applications 7.3.1 Application List：You can add or remove software by “+”or “-”...
- Page 17 “+”: Click “+” to add softwares, you have two ways to select an application. 1、Choose from the dropdown(need to open the software firstly) 2、Choose from the browser...
- Page 18 “-”: Click “-” to remove the softwares you added before. 7.3.2 Hotkey Redefine Hotkey: Click on the title of the button. A dropdown menu will appear with a list of tool options. Choose the one you want to use.
- Page 19 Mac: Note:Driver settings in Mac system are the same in Windows system. Users who use Mac system can take reference to Windows system.
- Page 20 Any question, please contact us Beijing Veikk E-commerce Co., Ltd. Email : service@veikk.com Skype : veikk service Website : www.veikk.com...
