Summary of Contents for Veikk VK1200

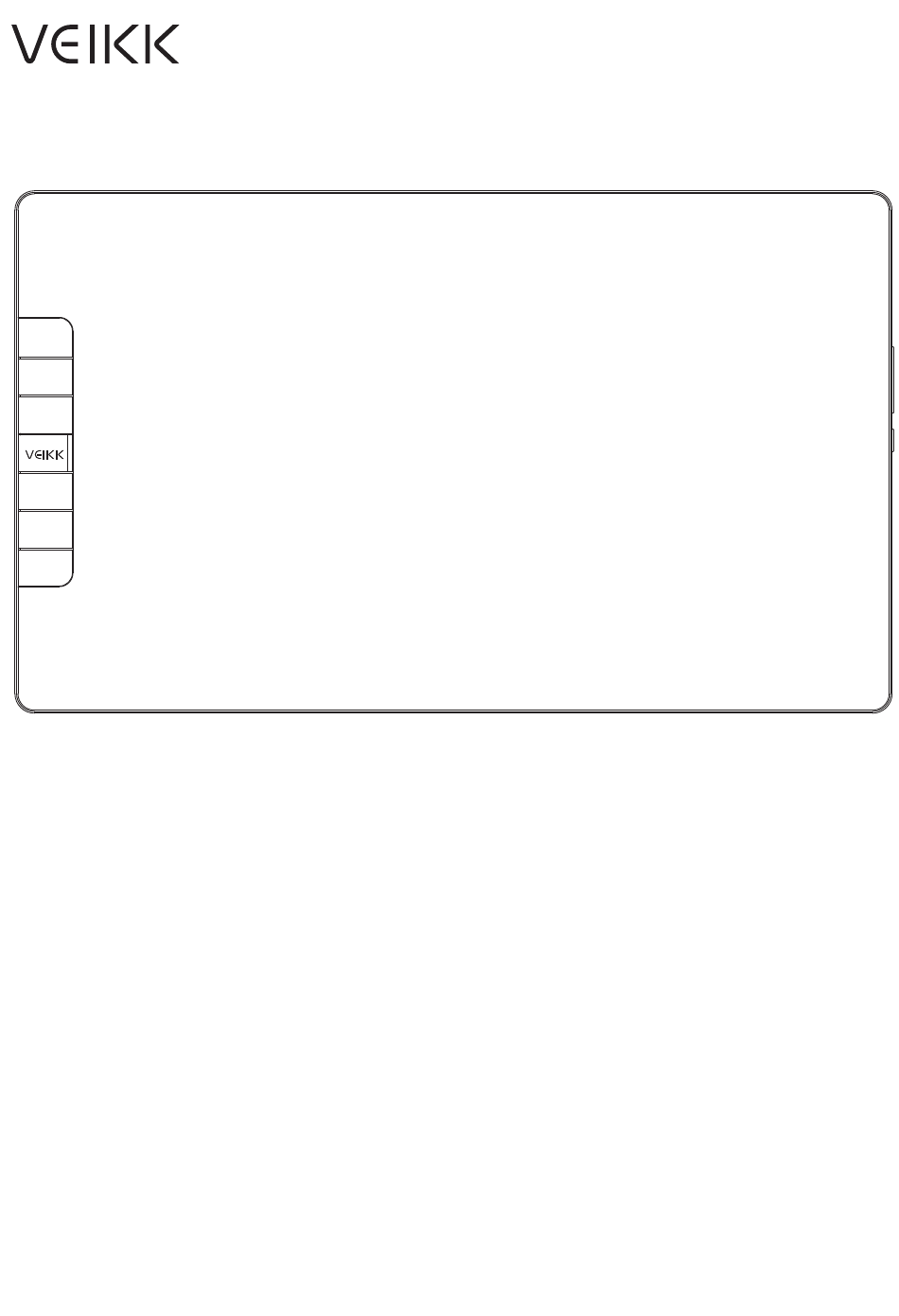

- Page 1 User Manual VK1200 PEN DISPLAY Mac OS 10.12 or later Windows 10/8/7/ (32/64 bits) www.veikk.com...
- Page 2 Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the display, please unplug the USB cable and wipe with a soft damp cloth, don’t use any kind of detergents. 3. Please don’t place the display near water sources such as bathtub, washbasin, sinks, washing machine, damp basement, swimming pool, etc.
- Page 3 11. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.
-
Page 4: Table Of Contents
Catalog 1 Product Overview ................1 1.1 About VK1200 ................1 1.2 Product and Accessories............... 1 1.2.1 Product overview ..............1 1.2.2 Pen ..................2 1.2.3 Other accessories ..............3 1.3 Specifications ................4 1.3.1 Display.................. 4 1.3.2 Tablet ................... 4 1.4 Display Connection ............... -
Page 5: Product Overview

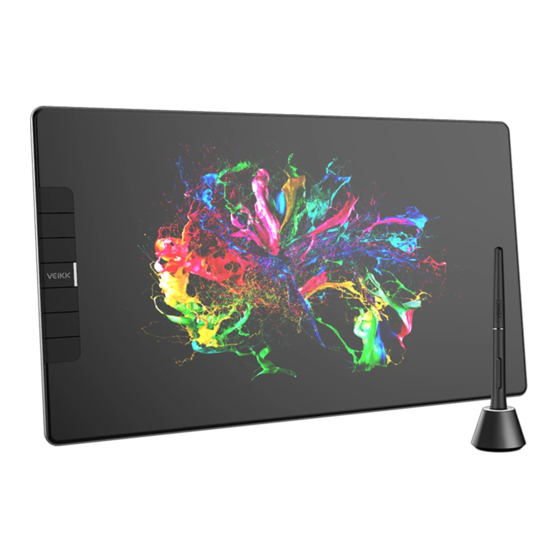

To give you a better understanding and using of your VK1200 display, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Mac systems. -
Page 6: Pen
Working Area Brightness down ② ⑧ Shortcut Keys Power button and Status indicator light ③ a. Blue: The VK1200 is connected to your VEIKK Logo ④ computer and powered on. USB Port ⑤ b. No Light: The VK1200 is powered off. -
Page 7: Other Accessories
1.2.3 Other accessories Pen x1 Pen Pocket x1 Pen Holder x1 (Includes 8 pen nibs) HDMI Cable x1 USB Cable x1 Nib Remover x1 VK1200 Driver Download Quick Start Reminder x1 Guide x1... -
Page 8: Specifications
1.3 Specifications 1.3.1 Display Item Specification Technology Full-Laminated Display Active Area 11.6 inch(256.32 x144.18mm) Resolution 1920X1080 Contrast Ratio 700:1 Brightness 230 cd/m2 Response Time 25ms Visual Angle 178°（H）-178°（V） Support Color 16.7M ≥20000 hours Display LED Life Interface Micro HDMI 1.3.2 Tablet Item Specification Technology... -
Page 9: Display Connection
USB interface on your computer or the power adaptor. The power adaptor is not included in the package. Power adaptor of your mobile phone is also compatible. 2. If connected properly, after pressing the power button on the VK1200, the VK1200 display will be turned on successfully. -
Page 10: Driver Installation
2.1 System Requirement Windows 10/8/7/(32/64 bits) Mac OS 10.12 or later 2.2 Driver Installation 1. Before installing VEIKK driver, please uninstall all tablet drivers from your computer completely. 2. Disable all antivirus program or firewall，keep all drawing softwares closed. 3. Connect VK1200 to your computer. - Page 11 6. Once the driver is completely installed, you will see an icon appearing on the system tray (lower right corner) and the desktop (Windows) and system Preference (Mac). 7. After a successful installation, the digital pen should be able to control the cursor, and activated for configuration on the pressure test area.
-
Page 12: Monitor Mapping
How to Change to Extended Display. Extended Display means you work with a larger Windows desktop area spanning your computer monitor and VK1200 Display. Applications can be moved from one display to the other, and will allow you to work in different... - Page 13 Windows: 1. Right-click your desktop and select “Display Setting”. 2. In Multiple Displays dropdown, change to [Extend these Displays].
- Page 14 1. Please open “System Preferences---“Displays”---“Arrangement”, don’t choose the “Mirror Displays”. 2. If your computer is equipped with more than one monitor, your VK1200 pen display will map to the monitors based on how they are configured in the DISPLAY PROPERTIES control panel.
-
Page 15: Driver Setting
4 Driver setting 4.1 Pen 4.1.1 Pen Function Settings You may customize the functions of your pen’s buttons here. Use the “Function Key” option to program custom keystrokes. -
Page 16: Current Pen Pressure
4.1.2 Current Pen Pressure Current Pen Pressure shows the current pressure level being exerted on your tablet and can be used to test pen pressure. 4.1.3 Click Sensitivity You can adjust pen pressure to “Output” or “Input” sensitivity on here. -
Page 17: Mapping
4.2 Mapping Define the display area that will be mapped to the computer screen area. 4.2.1 Monitor Setting Here you can adjust the monitor color temperature and parameter. -
Page 18: Rotate
It can freely rotate the pen display, and satisfy left hand users . Note: a. When you set the rotate function, you must also rotate your VK1200. b. Before setting the rotate function, you have to set your computer to "Extend... -
Page 19: Screen Mapping
4.2.3 Screen Mapping If working in Extended Display, choose which monitor the VK1200 pen display to track with.To learn which monitor is Monitor 1 and which is Monitor 2, Please go to Start > Settings > Display and click Identify. -
Page 20: Enable Windows Ink Function
Note: Before calibrate, you have to set your computer to "Extend These Display" firstly. 4.2.5 Enable Windows Ink Function Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Adobe Photoshop, AI and so on. -
Page 21: Functions
4.3 Functions 4.3.1 Shortcut Keys Setting Note: a.The VK1200’s shortcut keys are designed to work with US English. Keys may not function correctly with the other keyboard languages. b.By Default, the VK1200 express keys are mapped to standard Photoshop keyboard shortcuts. Keys can be customized to function efficiently in other software. - Page 22 2. Set the keys features by computer keyboard input Choose “keyboard”. Delete the default features and input the features you prefer by your computer keyboard.
- Page 23 Input special characters from your computer keyboard. You can set each shortcut key for different software a.Click the“+”button go to select program tab.
- Page 24 b.You can choose Default or use Browse to select your choice of software. c.Return the shortcut key setting tab, click the tablet icon, and then customize the shortcut keys.
-
Page 25: About Us
4.4 About Us Click to get the latest version: If you want to install the latest driver, click “Click to get the latest version”, if there is no response, that means the driver you installed is the newest. If you find newest driver in the list, you just need to update. - Page 26 Diagnostic Tools: Check for missing key files. Mac: Note:Driver settings in Mac system are the same as in Windows system. Users who use Mac system can refer to Windows system.
-
Page 27: Faq
(2) Disable any all antivirus program or firewall, and keep all drawing softwares closed. (3) Please connect HDMI cable and USB cable to the computer and VEIKK pen display.If your computer video port is not HDMI port, you can use a transfer tool, like VGA to HDMI or DVI to HDMI. - Page 28 4. How to install driver in Mac OS Catalina (10.15)? (1) Please plug the VEIKK tablet into your computer with HDMI and USB cable. (2) Download VEIKK driver from our offical web and install it. (3) After installation,the system preferences dialog box will pop up automatically.
- Page 29 7. The pen can not control the cursor. (1) Make sure USB and HDMI cable are connected correctly. (2) Make sure the VK1200 display has been turned on. (3) Change a USB Port or a computer to have a try.
