RM-WAP-16_RM-WAP-8_om_7multi_A0.book 3 ページ 2021年2月5日 金曜日 午後3時28分
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the
product, or data that is lost or destroyed.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious
injury or even death from electrical shock, short-circuiting, damages, fire or other
hazards. These precautions include, but are not limited to, the following:
Fire warning
• Do not place any burning items or open flames near the product, since they may cause a fire.
Wireless unit
• Do not use this product near medical devices or inside medical facilities. Radio waves from
this product may affect electro-medical devices.
• Do not use this product within 15 cm (6 in) of persons with a heart pacemaker implant or a
defibrillator implant. Radio waves from this product may affect electro-medical devices, such
as a heart pacemaker implant or defibrillator implant.
Location
• Install in the manner instructed in the manual. Falling may result in injury or damage.
• Confirm that the finished installation is safe and secure. Also, carry out safety inspections
periodically. Failure to observe this may cause devices to fall and result in injury.
RM-WAP-16 RM-WAP-8 Owner's Manual
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMWAP8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamaha RMWAP8

  • Page 1 PLEASE READ CAREFULLY BEFORE PROCEEDING Please keep this manual in a safe place for future reference. Yamaha cannot be held responsible for damage caused by improper use or modifications to the product, or data that is lost or destroyed. WARNING...
  • Page 2 - Some object, or water has been dropped into the product. - Cracks or other visible damage appear on the product. Then have the product inspected or repaired by qualified Yamaha service personnel. Do not open • This product contains no user-serviceable parts. Do not attempt to disassemble the internal parts or modify them in any way.
  • Page 3 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 5 ページ 2021年2月5日 金曜日 午後3時28分 NOTICE To avoid the possibility of malfunction/damage to the product, damage to data, or damage to other property, follow the notices below. Handling and maintenance • Use the product at a distance of at least 20 cm away from the human body. This product complies with international electromagnetic exposure limits set forth for a normal environment.
  • Page 4 • The company names and product names in this manual are the trademarks or registered trademarks of their respective companies. • Yamaha continuously makes improvements and updates to the software included in this product. You can download the latest software from the Yamaha website.
  • Page 5 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 7 ページ 2021年2月5日 金曜日 午後3時28分 About transfer/disposal • If you transfer the product to a third party, pass this manual and accessories along with it. • Before you transfer ownership or dispose of this product, initialize the product settings to default. If you transfer ownership or dispose of this product without initializing the settings, your personal data may be stolen by a third party.

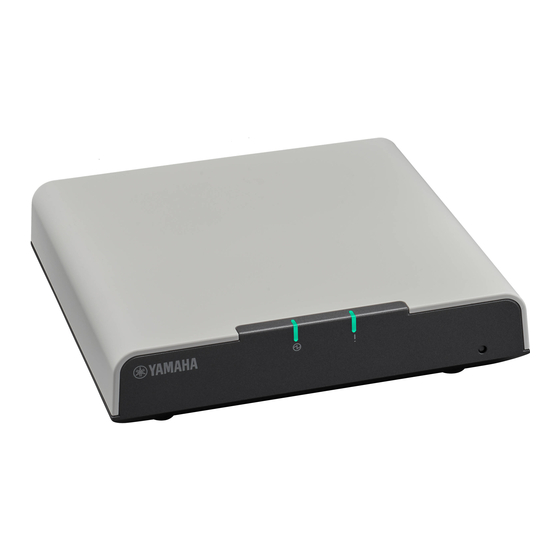

  • Page 6 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 8 ページ 2021年2月5日 金曜日 午後3時28分 INTRODUCTION Thank you for purchasing the Yamaha RM-WAP-16/RM-WAP-8 microphone access point. This unit is a PoE-powered access point. It is compatible with the 1.9 GHz DECT standard and Dante, and can be used in combination with a dedicated wireless microphone. Be sure to read this manual before using the unit.
  • Page 7 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 9 ページ 2021年2月5日 金曜日 午後3時28分 CONTROLS AND FUNCTIONS Front panel (Power) indicator (Status) indicator Indicates the status of this unit using a color and flashing pattern. For details, refer to the Reference Manual. 3 RESET button Use to reset the settings by long-pressing with a fine-tipped object, then releasing it. Long press Status indicator Reset target...
  • Page 8 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 10 ページ 2021年2月5日 金曜日 午後3時28分 Bottom panel 1 Dante/PoE port This is an RJ-45 port to which you can connect an LAN cable (CAT5e or higher) via an IEEE802.3af compliant a PoE injector or the PoE network switch to a Dante unit. For details on injectors, refer to the Reference Manual.
  • Page 9 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 11 ページ 2021年2月5日 金曜日 午後3時28分 INSTALLING ON A WALL OR CEILING This unit can be mounted on a wall or ceiling by using the mounting bracket. Prepare the following. • This unit • Mounting bracket (included) • Commercially available screws × 4 •...
  • Page 10 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 12 ページ 2021年2月5日 金曜日 午後3時28分 Plug the LAN cable into the Dante/PoE port. NOTICE : Use STP (Shielded Twisted Pair) cable to prevent electromagnetic interference. : When disconnecting the LAN cable from the Dante/PoE port, wait at least five seconds before reconnecting the cable. Otherwise, damage or malfunctions may result.
  • Page 11 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 13 ページ 2021年2月5日 金曜日 午後3時28分 Slide this unit to engage the hooks. This completes the installation. For safety, make sure that the unit does not come off the mounting bracket, even when a force is applied to the unit. NOTE : To remove this unit from the mounting bracket, slide the unit in the opposite direction of installation while moving the UNLOCK switch on the rear panel (top edge in the illustration above) in the direction shown below.
  • Page 12 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 14 ページ 2021年2月5日 金曜日 午後3時28分 MAIN SPECIFICATIONS General specifications Dimensions W 171.0 mm × D 172.5 mm × H 43.0 mm Weight 650 g (including mounting bracket) Power requirements PoE (IEEE802.3af), 48 V DC Maximum power consumption 48 V, 0.2 A Temperature 0 °C –...
  • Page 13 50 m (depends on the usage environment) distance Encryption method AES (256-bit) The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file. RM-WAP-16 RM-WAP-8 Owner’s Manual...
  • Page 14 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 16 ページ 2021年2月5日 金曜日 午後3時28分 Dimensional diagram This unit 172.5 43.0 171.0 Units: mm RM-WAP-16 RM-WAP-8 Owner’s Manual...
  • Page 15 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 17 ページ 2021年2月5日 金曜日 午後3時28分 Mounting bracket 135.0 13.2 100.0 Units: mm RM-WAP-16 RM-WAP-8 Owner’s Manual...
  • Page 16 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 18 ページ 2021年2月5日 金曜日 午後3時28分 Information for users on collection and disposal of old equipment: This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation.
  • Page 17 FCC requirements. against harmful interference when the Modifications not expressly approved by equipment is operated in a commercial Yamaha may void your authority, granted environment. This equipment generates, by the FCC, to use the product. uses and can radiate radio frequency energy and, if not installed and used in 2.
  • Page 18: Table Of Contents

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 20 ページ 2021年2月5日 金曜日 午後3時28分 INHALTSVERZEICHNIS VORSICHTSMAßNAHMEN ................. 21 ACHTUNG ......................23 INFORMATION ....................24 EINLEITUNG......................26 Lieferumfang ........................26 Referenzhandbücher ....................... 26 BEDIENUNGSELEMENTE UND DEREN FUNKTION........27 Frontblende ........................27 Rückseite ......................... 27 Unterseite......................... 28 MONTAGE AN EINER WAND ODER DECKE ............ 29 TECHNISCHE DATEN ..................
  • Page 19: Vorsichtsmaßnahmen

    VORSICHTSMAßNAHMEN EMPFOHLENE LEKTÜRE VOR DEM WEITERFAHREN Vorliegendes Handbuch für spätere Nachschlagzwecke sorgfältig aufbewahren. Yamaha haftet weder für Schäden, die auf unsachgemäße Benutzung oder Veränderungen des Geräts zurückzuführen sind, noch für den Verlust oder die Zerstörung von Daten. WARNUNG Beachten Sie stets die nachfolgend aufgeführten Vorsichtsmaßnahmen, um schwere Verletzungen oder tödliche Unfälle durch elektrischen Schlag, Kurzschluss, Brand...
  • Page 20 - Das Gerät erzeugt einen ungewöhnlichen Geruch oder Rauch. - Ein Gegenstand oder Wasser ist in das Gerät eingedrungen. - Das Gerät weist Risse oder andere sichtbare Schäden auf. Das Gerät anschließend von qualifiziertem Yamaha Kundendienstpersonal prüfen oder reparieren lassen. Nicht öffnen •...
  • Page 21: Achtung

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 23 ページ 2021年2月5日 金曜日 午後3時28分 ACHTUNG Beachten Sie folgende Hinweise, um eine Störung bzw. Beschädigung des Geräts, den Verlust von Daten oder andere Sachschäden zu vermeiden. Umgang und Wartung • Personen sollten beim Einsatz des Geräts einem Mindestabstand von 20 cm zum Gerät wahren.
  • Page 22: Information

    • Die in dieser Anleitung erwähnten Firmen- und Produktnamen sind Warenzeichen bzw. eingetragene Warenzeichen der entsprechenden Firmen. • Yamaha verbessert und aktualisiert die in diesem Gerät enthaltene Software kontinuierlich. Sie können die neueste Software von der Yamaha-Website herunterladen. • Warnung: Das unbefugte Kopieren dieses Dokuments, ob ganz oder teilweise, ist untersagt.
  • Page 23 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 25 ページ 2021年2月5日 金曜日 午後3時28分 Bei Übergabe/Entsorgung • Falls Sie dieses Gerät an eine andere Person weitergeben, legen Sie vorliegendes Handbuch und das Zubehör bei. • Bevor Sie dieses Gerät weitergeben oder entsorgen, initialisieren sie es, um die Vorgabeeinstellungen wiederherzustellen. Wird das Gerät ohne Initialisierung weitergegeben oder entsorgt, könnten Ihre personenbezogenen Daten in fremde Hände geraten.
  • Page 24: Einleitung

    EINLEITUNG Vielen Dank für den Kauf eines Mikrofon-Access-Points RM-WAP-16/RM-WAP-8 von Yamaha. Dieser Access Point ist PoE-betrieben. Er unterstützt den 1,9-GHz-DECT- Standard sowie Dante und kann mit einem zugehörigen Drahtlosmikrofon eingesetzt werden. Lesen Sie das vorliegende Handbuch sorgfältig durch, bevor Sie das Gerät einsetzen.
  • Page 25: Bedienungselemente Und Deren Funktion

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 27 ページ 2021年2月5日 金曜日 午後3時28分 BEDIENUNGSELEMENTE UND DEREN FUNKTION Frontblende Betriebsanzeige Statusanzeige Zeigt den Status dieses Geräts durch Farben und Blinkmuster an. Einzelheiten finden sich im Referenzhandbuch. 3 Rückstellknopf RESET Mit einem feinspitzigen Gegenstand gedrückt halten und dann loslassen, um die Geräteeinstellungen zurückzustellen.
  • Page 26: Unterseite

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 28 ページ 2021年2月5日 金曜日 午後3時28分 Unterseite 1 Buchse Dante/PoE An dieser RJ-45-Buchse können Sie ein LAN-Kabel (CAT5e oder höher) über einen IEEE802.3af-kompatiblen PoE-Injektor oder PoE-Netzwerk-Switch mit einem Dante- Gerät verbinden. Einzelheiten finden sich im Referenzhandbuch. ACHTUNG : Verbinden Sie dieses Gerät nicht direkt mit einem öffentlichen WLAN oder Internetdienst.
  • Page 27: Montage An Einer Wand Oder Decke

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 29 ページ 2021年2月5日 金曜日 午後3時28分 MONTAGE AN EINER WAND ODER DECKE Dieses Gerät kann mit der Montagehalterung an einer Wand oder Decke montiert werden. Bereiten Sie Folgendes vor: • vorliegendes Gerät • Montagehalterung (im Lieferumfang enthalten) • handelsübliche Schrauben × 4 •...
  • Page 28 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 30 ページ 2021年2月5日 金曜日 午後3時28分 Verbinden Sie das LAN-Kabel mit der Buchse Dante/PoE. ACHTUNG : Verwenden Sie ein STP (Shielded Twisted Pair)-Kabel, um elektromagnetische Störungen zu verhindern. : Wurde das LAN-Kabel von der Buchse Dante/PoE abgezogen, mindestens fünf Sekunden warten, bevor es wieder eingesteckt wird. Anderenfalls könnte Beschädigung oder Störung verursacht werden.
  • Page 29 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 31 ページ 2021年2月5日 金曜日 午後3時28分 Verschieben Sie das Gerät, sodass die Haken eingreifen. Die Montage ist nun abgeschlossen. Vergewissern Sie sich, dass sich das Gerät auch unter Anwendung von Kraft nicht von der Halterung löst. HINWEIS : Um das Gerät von der Montagehalterung zu lösen, schieben Sie das Gerät in die entgegengesetzte Richtung der Montage;...
  • Page 30: Technische Daten

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 32 ページ 2021年2月5日 金曜日 午後3時28分 TECHNISCHE DATEN Technische Daten – Allgemein Abmessungen B 171,0 mm × T 172,5 mm × H 43,0 mm Gewicht 650 g (einschließlich Montagehalterung) Leistungsanforderungen PoE (IEEE802.3af), 48 VDC Maximale Leistungsaufnahme 48 V, 0,2 A Temperatur 0 °C – 40 °C Im Betrieb Luftfeuchtig- 20% –...
  • Page 31 Der Inhalt dieser Bedienungsanleitung gilt für die neuesten technischen Daten zum Zeitpunkt der Veröffentlichung. Um die neueste Version der Anleitung zu erhalten, rufen Sie die Website von Yamaha auf und laden Sie dann die Datei mit der Bedienungsanleitung herunter. RM-WAP-16 RM-WAP-8 Benutzerhandbuch...
  • Page 32: Maßbild

    RM-WAP-16_RM-WAP-8_om_7multi_A0.book 34 ページ 2021年2月5日 金曜日 午後3時28分 Maßbild Vorliegendes Gerät 172,5 43,0 171,0 Einheit: mm RM-WAP-16 RM-WAP-8 Benutzerhandbuch...
  • Page 33 RM-WAP-16_RM-WAP-8_om_7multi_A0.book 35 ページ 2021年2月5日 金曜日 午後3時28分 Montagehalterung 135,0 13,2 100,0 Einheit: mm RM-WAP-16 RM-WAP-8 Benutzerhandbuch...
