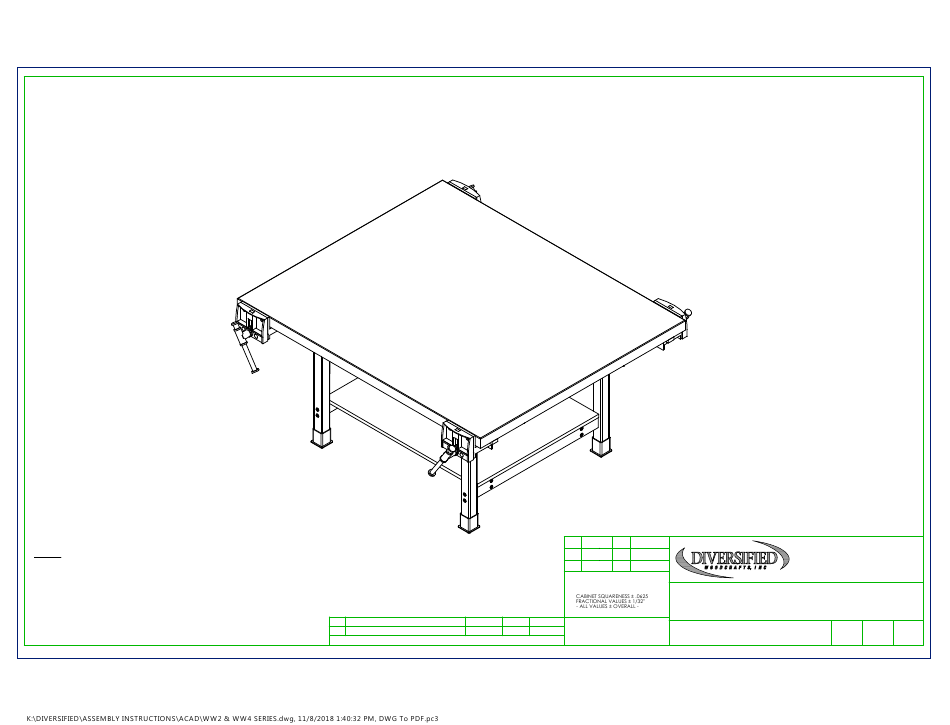

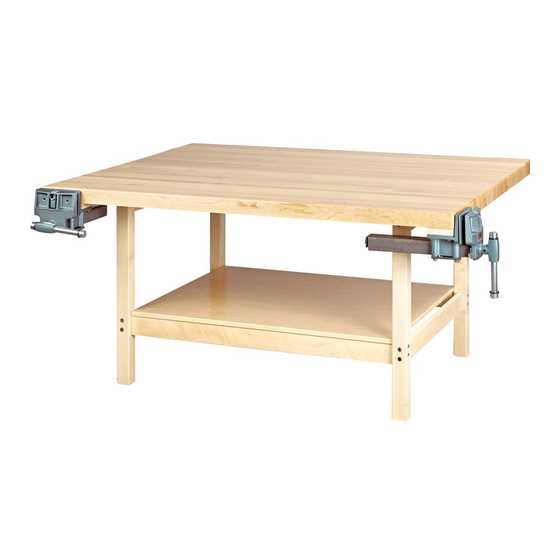

IN HOUSE ASSEMBLY TEMPLATE
OPEN-STYLE WOOD WORKBENCH
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
WW2-0V, WW2-1V, WW2-2V, WW4-0V, WW4-2V, & WW4-4V SERIES
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
REV.
DESCRIPTION
DESCRIPTION
DWN
EMK
BY:
APR
BY:
APR
BY:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
10/27/14
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
DATE
DATE
NAME
NAME
ECN NO.
BE ALTERED OR CHANGED WITHOUT
REVISION LEVEL
PERMISSION
DWN
10/27/14
DATE:
DATE
APR:
DATE
APR:
TITLE:
OPEN-STYLE WOOD WORKBENCH
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
WW2 & WW4
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 15
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS WW2-0V Series
Summary of Contents for DIVERSIFIED WOODCRAFTS WW2-0V Series
- Page 1 IN HOUSE ASSEMBLY TEMPLATE OPEN-STYLE WOOD WORKBENCH WW2-0V, WW2-1V, WW2-2V, WW4-0V, WW4-2V, & WW4-4V SERIES ASSEMBLY INSTRUCTIONS 10/27/14 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED TITLE: DIMENSION ARE IN INCHES...
-
Page 2: Tools Required
IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION 4MM ALLEN WRENCH TOP ASSEMBLY (FACTORY ASSEMBLY) TOP AND APRON ASSEMBLY VARIES " WRENCH " SOCKET AND TORQUE WRENCH - OPTIONAL LEG,MPL 2.25X2.25X28.25 LEGS 501100 DRILL LEG HARDWARE KIT, 4 LEGS LEG HARDWARE 520001-4... - Page 3 IN HOUSE ASSEMBLY TEMPLATE APRON SIDE FACING UP STEP 1: LAY TOP ASSEMBLY ON FLOOR WITH APRON SIDE FACING UP. **NOTE** BE SURE TOP ASSEMBLY IS ON A CLEAN SURFACE TO PREVENT DAMAGE 10/27/14 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174...
- Page 4 IN HOUSE ASSEMBLY TEMPLATE INSERT HANGER BOLT STEP 2: THROUGH HERE WITH LOCK WASHER AND HEX NUT INSERT HANGER BOLT ON ONE LEG THROUGH THE CORNER BRACKET AND INSERT LOCK WASHER AND HEX NUT. SCREW ON NUT USING A " WRENCH OR "...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 3: SLIDE LEG BOOT ONTO LEGS WITH FLARED END TOWARDS BOTTOM OF LEG. SCREW LEG LEVELERS INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG BOOT AND LEVELER ASSEMBLY 10/27/14 DATE: 300 South Krueger Street NOTE:...
- Page 6 IN HOUSE ASSEMBLY TEMPLATE LEG BRACE - TYPICAL STEP 4: ATTACH BRACES TO LEGS. INSERT THE CONFIRMATS INTO ONE LEG AND SCREW INTO BRACE. REPEAT ON OTHER LEGS. MAKE SURE BRACES ARE STRAIGHT AND ALL CONFIRMATS ARE TIGHT. 10/27/14 DATE: 300 South Krueger Street NOTE: DATE...
- Page 7 IN HOUSE ASSEMBLY TEMPLATE STRETCHER - TYPICAL STEP 5: INSERT STRETCHERS IN BETWEEN BRACES. ATTACH STRETCHERS WITH HARDWARE PROVIDED. GO BACK TO STEP 2 AND TIGHTEN UP THE HANGER BOLTS FOR EACH LEG USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS.
- Page 8 IN HOUSE ASSEMBLY TEMPLATE STEP 6: ATTACH STEEL GUSSETS TO LEGS AND TOP WITH HARDWARE PROVIDED. GUSSETS SHOULD BE CENTERED ON LEGS. PRE-DRILL HOLES IN LEGS AND TOP TO PREVENT CRACKING . MAKE SURE SCREWS ARE TIGHT AND GUSSETS ARE SECURE. **NOTE** THE EDGE OF THE GUSSETS WITH THROUGH HOLES SHOULD BE...
- Page 9 IN HOUSE ASSEMBLY TEMPLATE SHELF STEP 7: WITH HELP FROM ANOTHER PERSON, TIP TABLE ON ITS SIDE. ATTACH SHELF TO THE STRETCHERS WITH HARDWARE PROVIDED. **NOTE** ATTACH SHELF BE SURE TOP ASSEMBLY IS THROUGH HERE ON ON A CLEAN SURFACE BOTH STRETCHERS TO PREVENT DAMAGE 10/27/14...
- Page 10 IN HOUSE ASSEMBLY TEMPLATE VISE - TYPICAL STEP 8: TURN TABLE OVER SO TOP IS UP. SET TABLE IN PLACE. ADJUST LEG LEVELERS TO LEVEL TABLE. SLIDE LEG BOOTS DOWN TO FLOOR. ATTACH VISES IF INCLUDED. 10/27/14 DATE: 300 South Krueger Street NOTE: DATE APR:...
-
Page 15: Maintenance And Repair
Butcher Block (Varnished Tops) Maintenance & Repair 796+<*; SPILLS • Be sure any spills are cleaned up immediately. Excessive moisture and certain chemicals allowed [V Z[HUK VU H ÄUPZOLK Z\YMHJL JHU JH\ZL KHTHNL ‹ *SLHU ZWPSSZ VY ZVPSLK HYLHZ ^P[O H KHTW JSV[O HUK KY` [OVYV\NOS` ‹...
