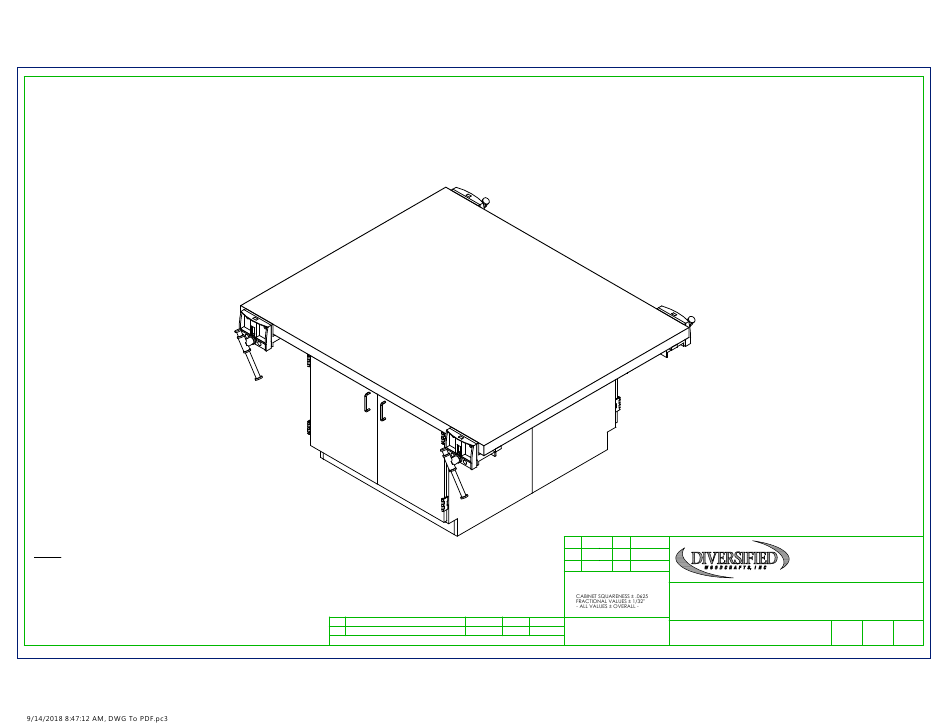

IN HOUSE ASSEMBLY TEMPLATE
WOOD WORKBENCH
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\DIVERSIFIED\ASSEMBLY INSTRUCTIONS\ACAD\WW31, WW32, & WW33 SERIES.dwg,
WW31-0V, WW31-4V, WW32-0V, & WW32-4V, WW33-0V, & WW33-4V SERIES
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
REV.
DESCRIPTION
DESCRIPTION
DWN
EMK
BY:
APR
BY:
APR
BY:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
3/7/14
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
DATE
DATE
NAME
NAME
ECN NO.
BE ALTERED OR CHANGED WITHOUT
REVISION LEVEL
PERMISSION
DWN
3/7/14
DATE:
DATE
APR:
DATE
APR:
TITLE:
WOOD WORKBENCH
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
WW31, WW32, & WW33
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 10
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS WW31-0V SERIES
Summary of Contents for DIVERSIFIED WOODCRAFTS WW31-0V SERIES
- Page 1 IN HOUSE ASSEMBLY TEMPLATE WOOD WORKBENCH WW31-0V, WW31-4V, WW32-0V, & WW32-4V, WW33-0V, & WW33-4V SERIES ASSEMBLY INSTRUCTIONS 3/7/14 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED TITLE: DIMENSION ARE IN INCHES...
-
Page 2: Tools Required
IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION CONTACT CEMENT 16-0052 TOP,MPL,2.25X54X64 DRILL SCREW,#8X1 " QUAD RD WASH HD SCREWS - TOP AND CABINETS 100641 BASE CABINETS BASE CABINETS - SIZE VARIES CORNER,BASE,ASSY,SST,2 CORNERS W/ CORNER BASE ASSEMBLY 206513 SCREWS... - Page 3 IN HOUSE ASSEMBLY TEMPLATE BASE CABINET - TYPICAL STEP 1: POSITION BASE CABINETS IN DESIRED LOCATION. LEVEL CABINETS. ANCHOR CABINETS TO EACH OTHER. **NOTE** CABINETS MUST BE LEVELED OR DOORS AND DRAWERS MAY NOT OPEN OR CLOSE CORRECTLY. 3/7/14 DATE: 300 South Krueger Street NOTE: DATE...
- Page 4 IN HOUSE ASSEMBLY TEMPLATE GUSSET - TYPICAL 12.00 **NOTE** THE EDGE OF THE GUSSETS WITH 12.00 THE THROUGH HOLES SHOULD BE FACING EACH OTHER. STEP 2: 24.00 PLACE GUSSETS 12" TOWARDS FRONT OF WORKBENCH FOR A TOTAL OF 24" IN BETWEEN. TOP EDGE OF GUSSET SHOULD BE FLUSH WITH TOP EDGE OF CABINETS.
- Page 5 IN HOUSE ASSEMBLY TEMPLATE VISES - TYPICAL STEP 3: PLACE TOP ON CABINETS WITH PROPER OVERHANG (CENTERED ON WORKBENCH) AND GRAIN DIRECTION CORRECT WAY. ATTACH TOP TO CABINETS AND GUSSETS WITH HARDWARE PROVIDED. SCREW THROUGH INSIDE OF CABINETS TO THE TOP. PRE-DRILL HOLES IN TOP TO PREVENT CRACKING .
- Page 10 Butcher Block (Varnished Tops) Maintenance & Repair 796+<*; SPILLS • Be sure any spills are cleaned up immediately. Excessive moisture and certain chemicals allowed [V Z[HUK VU H ÄUPZOLK Z\YMHJL JHU JH\ZL KHTHNL ‹ *SLHU ZWPSSZ VY ZVPSLK HYLHZ ^P[O H KHTW JSV[O HUK KY` [OVYV\NOS` ‹...
