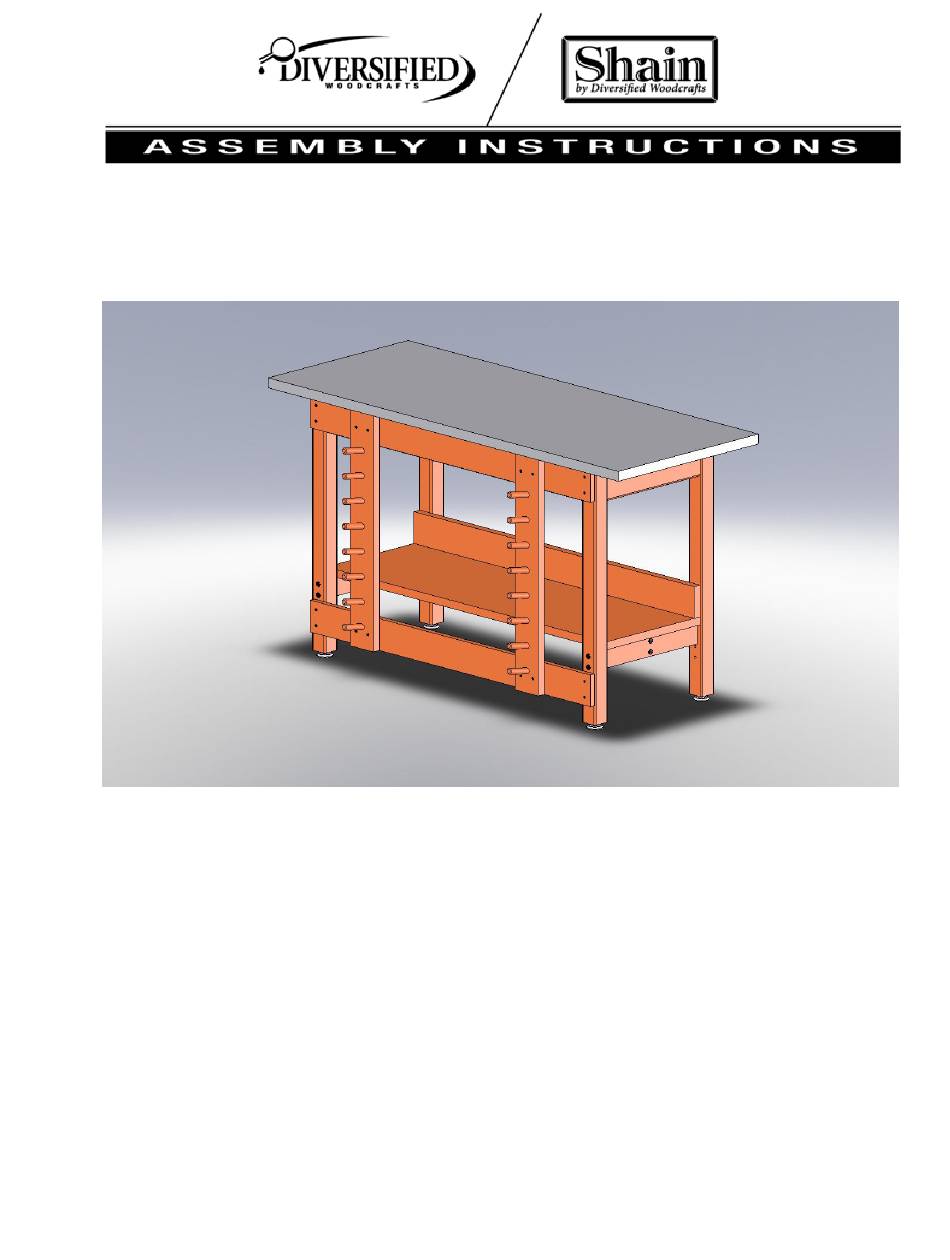

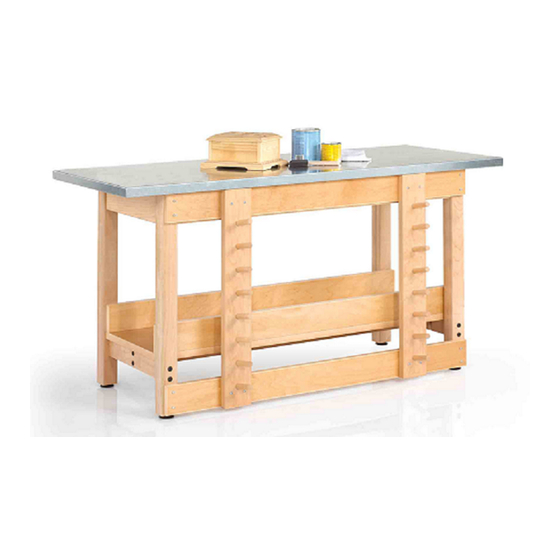

GSB-6024 WORKBENCH
ASSEMBLY INSTRUCTIONS
*Model views may not represent exact model purchased
[1]

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHAIN GSB-6024 and is the answer not in the manual?

Questions and answers

Related Manuals for DIVERSIFIED WOODCRAFTS SHAIN GSB-6024

Summary of Contents for DIVERSIFIED WOODCRAFTS SHAIN GSB-6024

  • Page 1 GSB-6024 WORKBENCH ASSEMBLY INSTRUCTIONS *Model views may not represent exact model purchased...
  • Page 2 TABLE OF CONTENTS ASSEMBLY COMPONENTS_______________________________________3 APRON TO LEG ATTACHMENT___________________________________4 LEG ASSEMBLY_________________________________________________5 LEG BRACES & STRETCHERS_____________________________________5 SHELF & CLAMP FRAME_________________________________________6...

  • Page 3: Assembly Components

    ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART# 1-LEG KIT,TABLE L3035MP-LB 1-APRON ASSY,TABLE 235634MP 1-TOP,TABLE 17-0017 HARDWARE BOX 4-SCREW,7MMX50MM, 228564 8-SCREW,7MMX90MM 227578 23- SCREWS,#8.00X1.5 FSQ 100066 1-SHELF 235384-4800 1-STRETCHER S7000-4550MP 2-BRACES LS7000-16MP 1-CLAMP FRAME 235641MP DESCRIPTION DATE Original Created 3-29-11...
  • Page 4 Assembly Instructions Items not included but needed for assembly: 1. ½” wrench 2. #2 Phillips bit Instructions: 1. Lay the table on the floor with the apron side up. (Be sure to lay the table on a clean surface so you don’t damage the tabletop.) 2.
  • Page 5 4. NOTE: TABLES WITH LEG BRACES AND STRETCHERS SEE FIGURE 8A. FIGURE 8A Stretcher Leg Brace 5. Attach leg braces with: (SCREW,7MMX90MM,CONN,ALLENHEAD,BLACK) Provided...
  • Page 6 6. Attach stretcher with: (SCREW,7MMX50MM,CONN,ALLENHEAD,BLACK) Provided 7. Attach shelf using 7- SCREWS,#8.00X1.5 FSQ SMS TYPE 17 (100066) Clamp frame 8. Attach clamp frame to front of table using 8 - SCREWS,#8.00X1.5 FSQ SMS TYPE 17 (100066) 9. Turn the table over so the top is up. Set your table in place and adjust the leg levelers to level the table.
