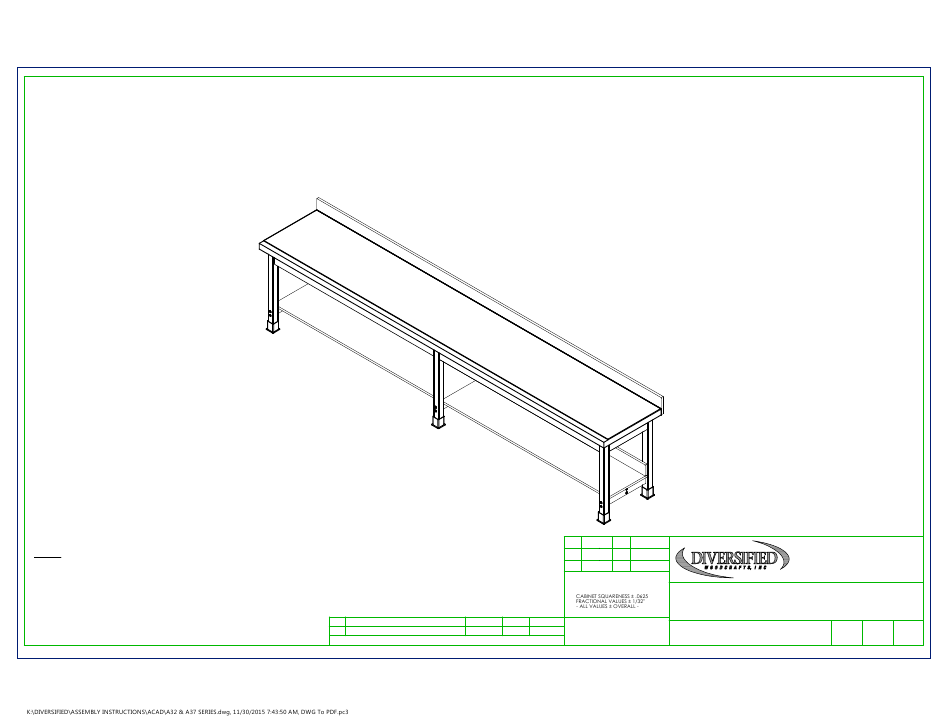

IN HOUSE ASSEMBLY TEMPLATE
AUXILIARY WORKBENCH
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
A32 & A37 SERIES
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
9/11/14
EMK
REV.
DESCRIPTION
DESCRIPTION
DATE
DATE
NAME
NAME
REVISION LEVEL
DWN
DWN
EMK
9/11/14
DATE:
BY:
APR
DATE
BY:
APR:
APR
DATE
BY:
APR:
UNLESS OTHERWISE SPECIFIED
TITLE:
DIMENSION ARE IN INCHES
AUXILIARY WORKBENCH
ASSEMBLY INSTRUCTIONS
-
THIS DRAWING IS THE SOLE PROPERTY OF
DRAWING NUMBER:
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
ECN NO.
BE ALTERED OR CHANGED WITHOUT
A32 & A37 SERIES
PERMISSION
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 6
