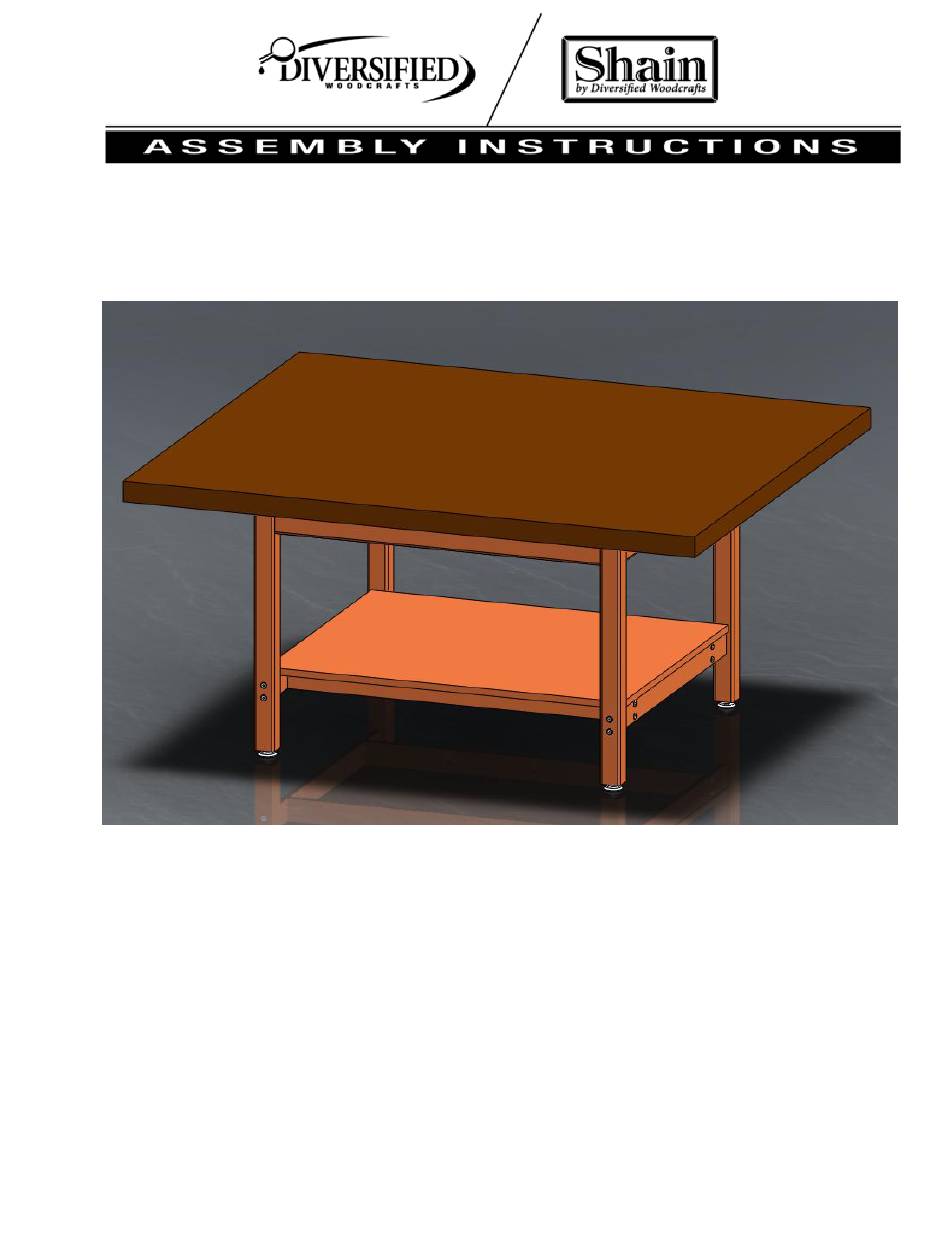

- Page 1 WW4 WORKBENCHS ASSEMBLY INSTRUCTIONS *Model views may not represent exact model purchased...
- Page 2 TABLE OF CONTENTS ASSEMBLY COMPONENTS_______________________________________3 APRON TO LEG ATTACHMENT___________________________________4 LEG ASSEMBLY_________________________________________________5 LEG BRACES & STRETCHERS_____________________________________6...
- Page 3 ASSEMBLY COMPONENTS ITEMS INCLUDED PART # 1-LEG KIT,TABLE L3030 1-APRON ASSY,TABLE 231995 1-TOP,TABLE 0052 2-STRETCHERS, LEG S7000 231996- 1-SHELF,ADJ,MD3,EB4,.75 4000 2-BRACES LS7000 8-SCREW,7MMX90MM 227578 8-SCREW,7MMX50MM, 228564 6- SCREWS,#8.00X1.5 FSQ 100066 12-SCREW,#8X1-3/4 QUAD RD WASH HD 100641 WILTON CORP - 63144 - VISE-78A 0185 OPTIONS WITH VISES...
- Page 4 DESCRIPTION DATE Assembly Instructions Items not included but needed for assembly: 1. ½” wrench Instructions: 1. Lay the top on a clean and level surface, so you don’t damage the tabletop. Place the side of the top with the beveled edge (good side) facing downward. NOTE: You may need additional help with this step, as the top, and or apron assembly will be heavy.
- Page 5 4. Slide leg boots onto the legs with the flared end toward the bottom of the leg. 5. Screw leg levelers into t-nut in the bottom of the leg. 6. NOTE: TABLES WITH LEG BRACES AND STRETCHERS SEE FIGURE 8A. FIGURE 8A...
- Page 6 Leg Brace Stretcher 7. Attach leg braces with: (SCREW,7MMX90MM,CONN,ALLENHEAD,BLACK) Provided 8. Attach stretcher with: (SCREW,7MMX50MM,CONN,ALLENHEAD,BLACK) Provided 9. Attach shelf using 6- SCREWS,#8.00X1.5 FSQ SMS TYPE 17 (100066) 10. Turn the table over so the top is up. Set your table in place and adjust the leg levelers to level the table.
