13 Guía para la IQ y OQ ..........................28 14 Garantía ..............................29 15 Resolución de problemas .........................29 .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 3
13 Guidelines for IQ and OQ .........................55 14 Warranty ..............................55 15 Troubleshooting table ..........................56 .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Es obligatorio el uso de gafas de seguridad o protección facial completa para reali- zar la operación descrita. En el apartado «Accesorios» se indica un modelo aconsejado. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Sistema de vaciado Formado por una bomba de características especiales para vaciar el tubo muestra. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 8
Entrada / Salida a de vapor y Solución fijadora la red de agua sobrante .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
NaOH y Solución fijadora (Ácido Bórico). Conectar cada uno a la manguera indicada con el nombre. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
El equipo puede funcionar sin vigilancia, una vez se ha ajustado el tiempo de destilación. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
- Pulsar para validar el cambio. - Pulsar para salir del modo de configuración. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Fig. 5.2 Pulsador e indicador del modo de Se inicia la destilación y se detiene transcurrido el tiempo programado. funcionamiento. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Verificar, visualmente que la salida del tubo de destilado queda sumergi- da en el ácido Bórico. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Cualquier error en la concentración es un error en el resultado del Nitrógeno detectado y del % de proteínas. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Realizar varios blancos hasta obtener un valor constante. Si este valor se repite siempre, suele restarse al Nitrógeno detectado. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Para evitar el deterioro del equipo por fugas de líquidos, sustituir, lo antes posible, cualquier manguera en la que se observa algún deterioro o fuga. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Durante el transporte, se puede producir el vertido del refrigerante de reactivos y agua al exterior del embalaje. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Utilizar HCl diluido o cualquier limpiador doméstico para eliminar la cal. Rascar con un estropajo. • Montar de nuevo. Limpiar el interior Limpiar .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
11 Servicio técnico Para la reparación o sustitución de piezas deterioradas póngase en contacto con J.P. SELECTA, s.a.u. o con su distribuidor. Ellos le informarán de los servicios técni- cos autorizados de su zona. A continuación se ofrece una lista de recambios para facilitar su adquisición e identificación.
• Periódicamente realizar un ensayo en blanco y restarlo del resultado. (6.25 por defecto) .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Anotar: Peso de acetanilida, Normalidad del HCl, consumo de HCl y recupera- ción obtenida. • Fecha y persona responsable de la instalación. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
El equipo debe validarse adecuadamente antes de ser utilizado en el análi- sis de muestras valiosas para el usuario. No se acepta ninguna devolución sin previa autorización de J.P. SELECTA, s.a.u. 15 Resolución de problemas • No se enciende el indicador verde «ON».
Page 30
INSTRUCTION MANUAL CODE 80188 REV E Jun/2018 (It can be modified without notice) Page: 30 English Version .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 31
Scrubber. 4001611 • Water circulation vacuum pump. 4001612 Digester Scrubber Water circulation vacuum pump .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 32
The use of safety glasses or complete face protection is obligatory to conduct the described operation. In the section «Accessories» an advised model is indicated. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 33
.P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 34
It consists in some pumps and valves to empty the sample tube and the collector once the analysis is finished. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 35
Tanks for NaOH, Remaining Ammonia fixative Inlet / Outlet steam output solution. water tap .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 36
At the left hand side, there is a door to access reagent tanks, NaOH, fixative solu- tion and HCl. Connect each one to the hose indicated with his name. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 37

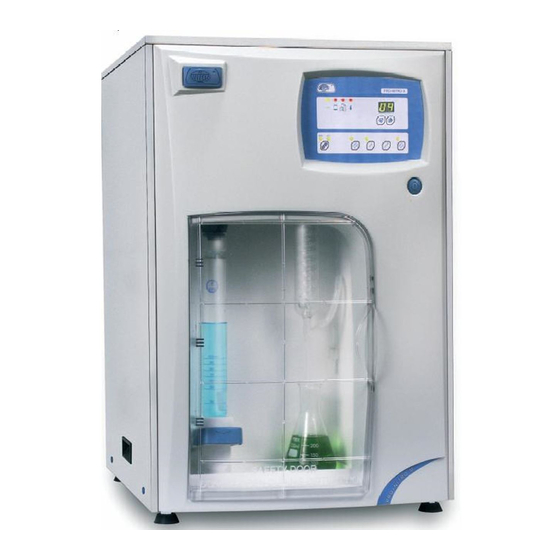

The PRO-NITRO «S» can do this as an automatic sequence ( «AUTOMATIC» mode) or run, separately, each operation (mode «MANUAL»). .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 38
- Press to save and exit from the settings mode. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 39
Boric acid will be added on the Erlenmeyer flask. • Adding NaOH: Press NaOH will be added on the sample tube. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 40
The safety thermostat switching is due to low level of water on the steam genera- tor, probably because the water reservoir is empty or water pump malfunction. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 41
Check, visually that the distilled output tube remains immersed under the level of Boric acid. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 42
P2: Nitrogen (mg). Milk and milky products 6,38 P0: Sample weight (mg). F: Protein factor. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 43
Any error on its preparation has a direct influence on the result. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 44
After the warm-up, the distillation rate is between 30 - 40 ml / minute. Left 5 minutes distilling and then press «STOP» to stop distillation. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 45
Run some blank tests in order to get a constant value of blank. If this value is repeated it could be subtracted from the detected Nitrogen. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 46
99.5%. To get these results you must work with high precision and use reagents with high degree of purity. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 47
Use clamps as is factory assembled. • Once the hose is replaced, it must be checked for leakages. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 48
During transportation, chemicals or water leakages glassware valve could fall outside of the package. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 49
Use diluted HCl or any home cleaner product for calcium deposits. Clean inside • Assemble it again. Clean it .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 51
(Sujetas a modificaciones sin previo aviso) Pag.: 51 11 Technical service For repairing and substitution of deteriorated parts please contact J.P. SELECTA s.a.u. or its distributor. They will inform you about the technical services authorized in your area. Find a spare parts list for easy buying and identifying.
Page 52
11.2 Hydraulic tubing diagram EMPTYING WASTE STEAM WATER WATER REMAINING GENERATOR INPUT OUTLET STEAM .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 53
MANUAL DE INSTRUCCIONES CODIGO 80188 REV E Jun/2018 (Sujetas a modificaciones sin previo aviso) Pag.: 53 11.3 Wiring diagram .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 54
(6.25 default value) • Periodically make a blank test and subtract it from the result. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
Page 55
The warranty does not cover the damages caused for a unit malfunction. The unit must be suitably qualified before to be used for valuable samples processing. Return good are not accepted without previous J.P. SELECTA, s.a.u. approval. .P. SELECTA s.a.u.
Page 56
The cause of the thermostat disconnection is that the steam generator lack of wa- ter. Check the hydraulic wiring to generate water, tank, pump, hoses, level probe. .P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362 e-mail: selecta@jpselecta.es - website: http://www.jpselecta.es...
