Statistics Plot

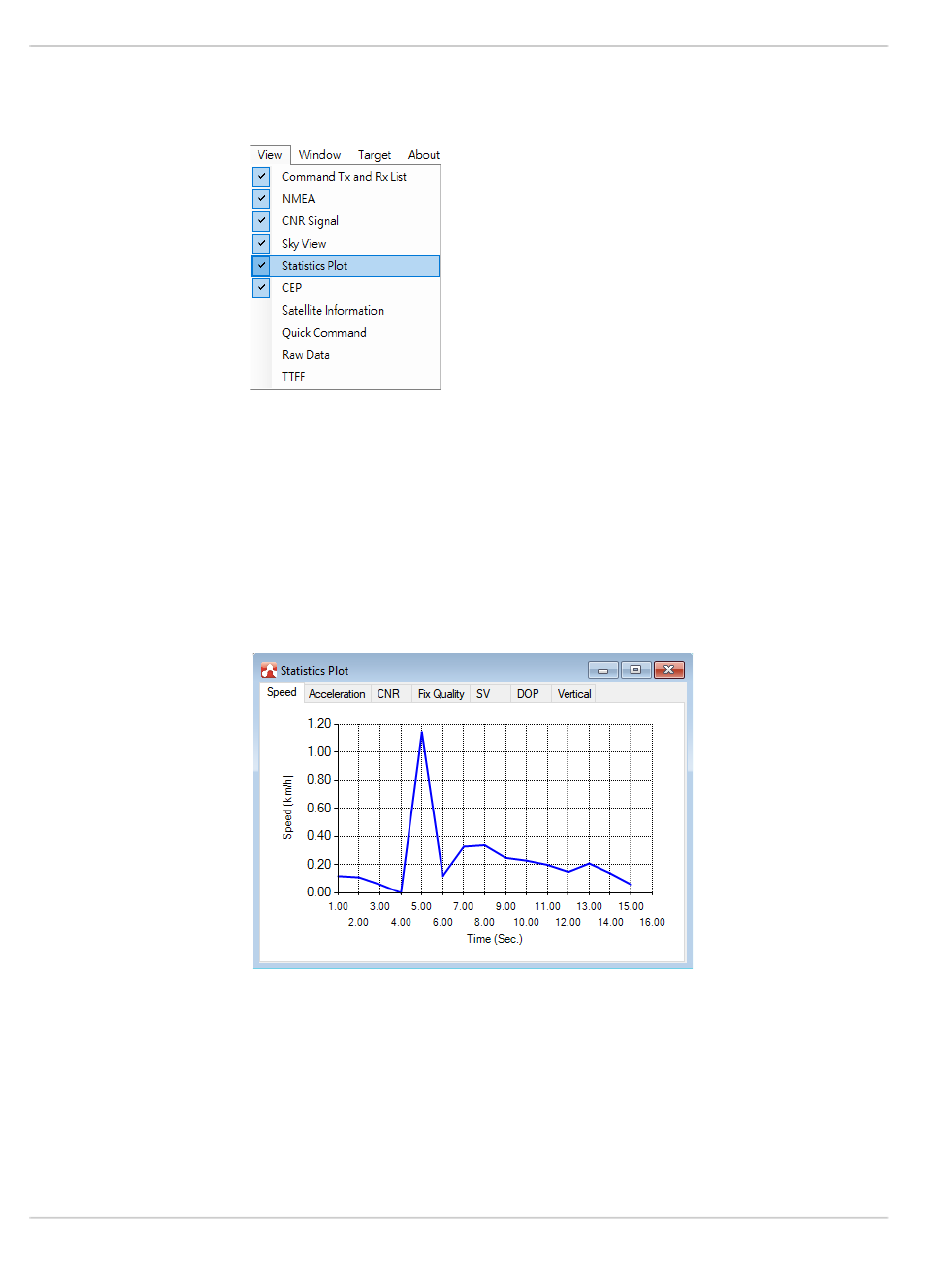

Clicking this menu item displays the Statistics window.
Figure 2-41: Statistics Plot Menu
The Statistics window contains the following eight tabs:
Speed: plots the relation between speed and time.
•
Acceleration: plots the relation between acceleration and time.
•
CNR: plots the relation between maximum CNR and minimum CNR. The blue
•
line represents the maximum CNR and the red line represents the minimum
CNR at that time.
Fix Quality: plots the relation between fix quality and time.
•
SV: plots the number of in-use and in-view space vehicle with time.
•
DOP: plots the relation between PDOP/HDOP/VDOP and time.
•
Vertical: plots the relation between height and time.
•
Figure 2-42: Speed Tab
