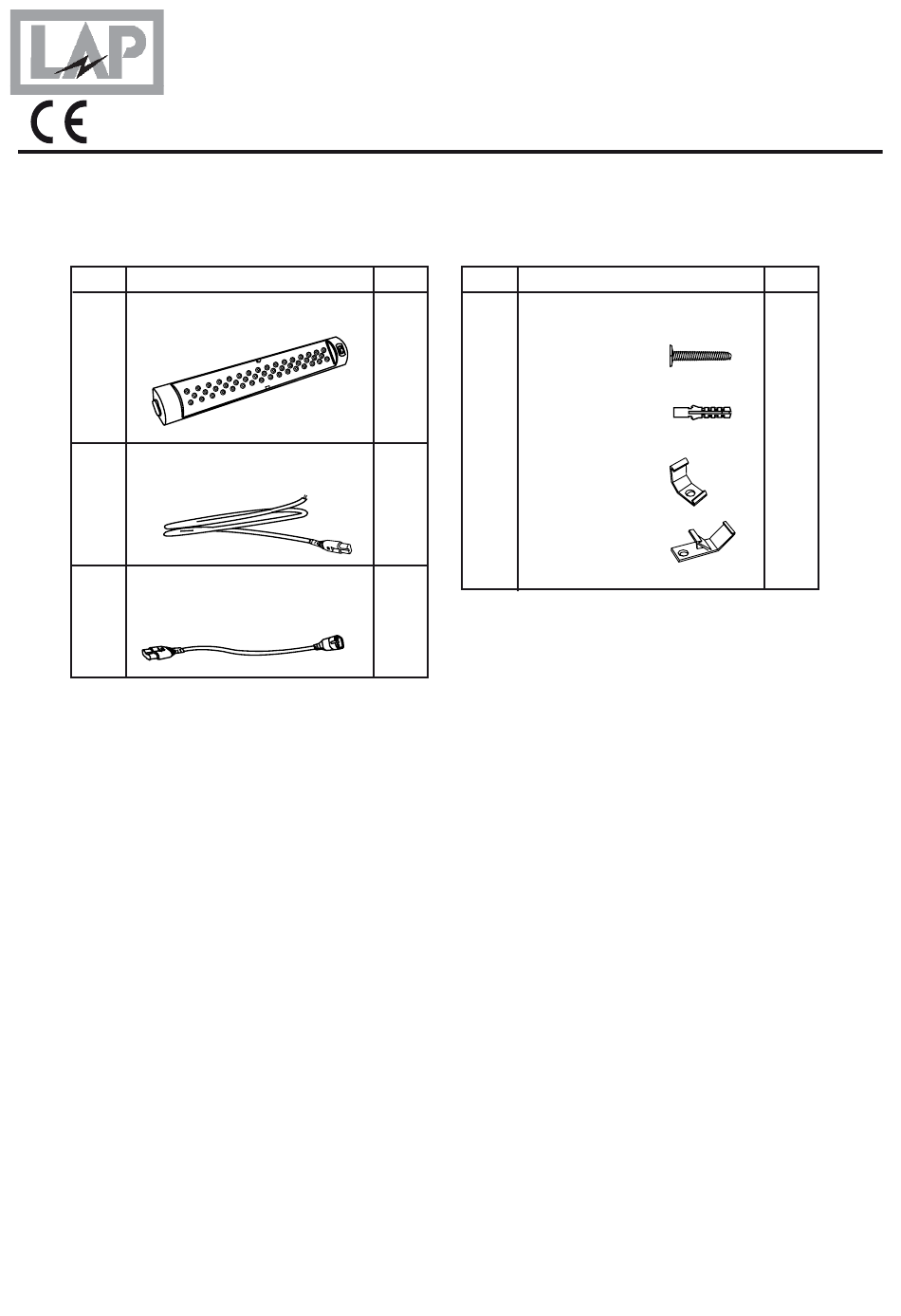

lap 48429 Installation And Safety Instructions

These instructions are for your safety. Please read through them thoroughly
Ref Description Illustration
A Light Fitting
B Power Lead
1 metre
C Connecting Lead
0.5 metre
Tools Required (not supplied)
6mm Cross Headed Screwdriver - Pencil

Before You Start

• Decide on an appropriate location for your product (see siting instructions below).
• If you are in any doubt about installing this product, consult a qualified electrician.

Siting Instructions

1. This product is designed for use under kitchen cupboards, bookshelves, cabinets etc.
Suitable for indoor use only. Not suitable for bathrooms.
2. Do not attach to surfaces which are damp or freshly painted.
3. The chosen location should allow for the product to be securely mounted and safely
connected to the mains supply (240V wall socket or fused outlet socket).
4.
Ensure cables are routed to avoid accidental damage or hazard.

Connection

1. Firstly choose the amount of products you wish to connect together (product length 250mm,
or 550mm or both etc.)
2. When deciding to fix the lights to the surface, choose which orientation the product will be
fixed. Horizontal (mounted directly underneath a kitchen wall unit) or in a corner (between the
wall and underside of the wall unit).
29.09.11
Installation and Safety Instructions
LAP LED Under Cabinet Light
before use and retain for future reference.
Qty Ref Description Illustration
1 Fixings kit
D
Screw
Wall Plug
Corner
1
Bracket (A)
Surface
Bracket (B)
1
250mm 48429
550mm 39006
Qty
2
2
2
2
Page 1 of 2
