Bryan Boilers CLM Series Specification Sheet

Steam & water boilers 1,200,000 to 3,000,000 btuh forced draft gas, oil or dual fuel fired

Hide thumbs Also See for CLM Series:

Table of Contents

See also: Installation, Operation and Service Manual

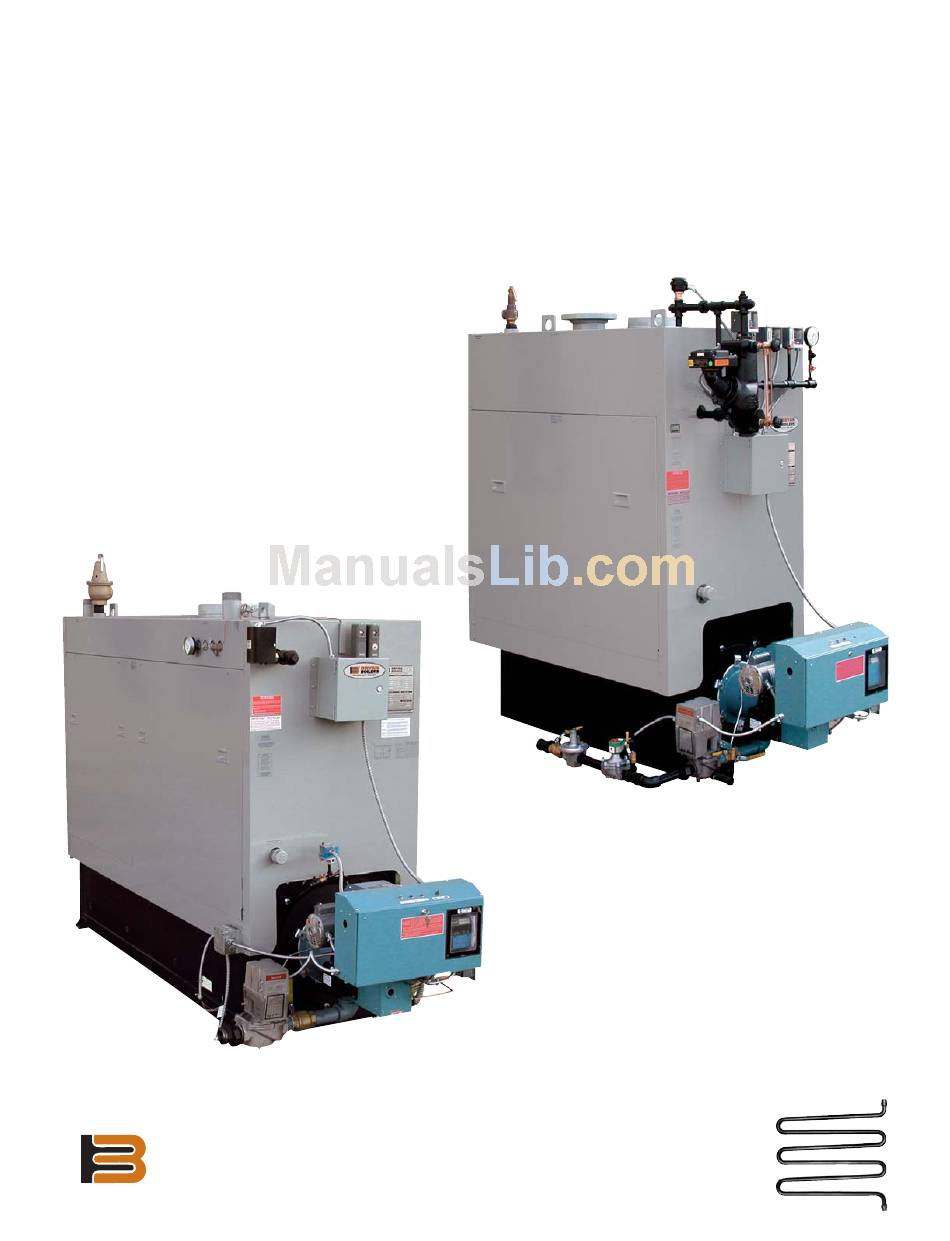

Bryan "Flexible Water Tube"

CLM Series

Steam & Water Boilers

1,200,000 to 3,000,000 BTUH

Forced draft gas, oil or dual fuel fired

BRYAN

CLM-300-W-FDG

BOILERS

Originators of the "Flexible Water Tube" design

Form No. 1930

(04/05)

CLM-180-S150-FDGO

Table of Contents

Need help?

Do you have a question about the CLM Series and is the answer not in the manual?

Page 1 Bryan “Flexible Water Tube” CLM Series Steam & Water Boilers 1,200,000 to 3,000,000 BTUH Forced draft gas, oil or dual fuel fired Water Boiler CLM-300-W-FDG BRYAN BOILERS ® Originators of the “Flexible Water Tube” design Form No. 1930 (04/05) Steam Boiler...
Page 2 (2) Output and horsepower based on boiler industry standard of 80% of input. (3) Output and horsepower based on an average natural gas combustion efficiency of 81.5% for hot water boiler. Actual combustion efficiencies for oil will be higher. (4 )Lbs. steam per hour from and at 212°F.
Page 3 J. Electrical box: all controls installed and connected to terminal strip. K. Water side or steam side interior accessible for cleanout Bryan CLM Series Boilers Standard and Optional Equipment STANDARD EQUIPMENT FURNISHED Water Boiler switch, control panel, all controls in- stalled and wired.
Page 4 Bryan CLM Series Steam & Hot Water Boilers PLAN VIEW Boiler Length Flue Flue Model Location Size Number Jacket CLM-120-S (128.74) (64.37) (25.40) CLM-150-S (151.60) (75.80) (30.48) CLM-180-S (175.57) (87.78) (35.56) CLM-210-S (199.07) (99.53) (35.56) CLM-240-S (223.52) (111.76) (40.64) CLM-270-S (246.38) (123.19) (40.64)
