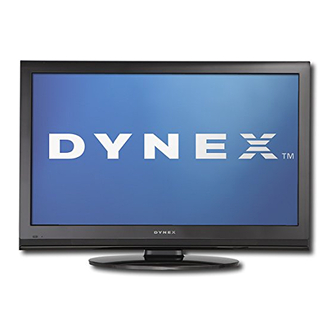

Dynex DX-32L150A11 Service Manual

Chassis: ks chassis

Hide thumbs Also See for DX-32L150A11:

Manual de l'utilisateur (40 pages)

Guía del usuario (40 pages)

User manual (38 pages)

Distributed by Xiamen Overseas Chinese Electronic Co.,LTD (XOCECO)

SERVICE MANUAL

Product Type: LCD TV

Chassis: KS Chassis

Manual Series:

Manual Part#: 9232KS7010

Model Line:

Product Year:

Product Safety Servicing Guidelines....................................................................................1

Remote Control Unit.............................................................................................................2

Main Unit (Front View/Side View/Rear View)........................................................................3

Specifications......................................................................................................................4

Alignment Instructions..........................................................................................................5

Software Upgrade Instructions...........................................................................................11

Working principle analysis of the unit................................................................................15

Block Diagram....................................................................................................................16

Troubleshooting Guides.....................................................................................................17

Wiring Diagram..................................................................................................................22

Schematic Diagram............................................................................................................23

Printed Circuit board layouts..............................................................................................29

Exploded View Parts List....................................................................................................31

CONTENTS

Table of Contents

Need help?

Do you have a question about the DX-32L150A11 and is the answer not in the manual?

Questions and answers

Philip Brink

April 19, 2025

I'm trying to install a new antenna and need to connect to the "antenna in" port. The antenna has a standard threaded plug with a single center pin. This doesn't match the receptacle on the back of the unit! What do I do?

1 comments:

Mr. Anderson

May 10, 2025

To connect a standard threaded antenna plug to the "antenna in" port on a Dynex DX-32L150A11, screw the threaded plug on the end of the antenna cable clockwise onto the "antenna in" port on the back of the TV until it is securely tightened.

This answer is automatically generated

Summary of Contents for Dynex DX-32L150A11

Page 1: Table Of Contents
Distributed by Xiamen Overseas Chinese Electronic Co.,LTD (XOCECO) SERVICE MANUAL Product Type: LCD TV Chassis: KS Chassis Manual Series: Manual Part#: 9232KS7010 Model Line: Product Year: CONTENTS Product Safety Servicing Guidelines..................1 Remote Control Unit......................2 Main Unit (Front View/Side View/Rear View)................3 Specifications........................4 Alignment Instructions......................5 Software Upgrade Instructions...................11...
Page 2: Product Safety Servicing Guidelines
Product Safety Servicing Guidelines ATTENTION: This service manual is only for service personnel to take 6. Should there be smoke, abnormal smell or sound from the module, reference with. Before servicing please read the please shut the power off at once. Likewise, if the screen is not following points carefully.
Page 3: Remote Control Unit
Remote Control Unit Remote control INPUT POWER MENU Press to open the on-screen menu. Press to turn off the sound. Press again to MUTE turn on the sound. Press to increase or decrease the volume. VOL+/VOL– Press to select the input source. VIDEO/HDMI/TV •...
Page 4: Main Unit (Front View/Side View/Rear View)
Main Unit (Front View/Side View/Rear View) AC IN 32” model is used in the main unit for illustration purposes. ANT/ CABLE IN AUDIO OUT S-VIDEO1 DIGITAL OUTPUT HDMI 2 HDMI 1 PC IN COMPONENT IN AV1 IN Connect this jack to a digital sound system to DIGITAL OUTPUT play your TV’s audio through the sound system.
Page 5: Specifications
SPECIFICATIONS Type: LCD TV Panel: 32” (DX-32L150A11) TFT LCD TV system: NTSC-M, ATSC Receiving Channel: VHF 2-13, UHF 14-69, CATV 1-125, CADTV 1-135, DTV 2-69 Audio multiplex: BTSC System Audio out: 8W × 2 Power Requirement: AC 120 V, 60 Hz...
Page 6: Alignment Instructions
ALIGNMENT INSTRUCTIONS 1. Test equipment VG848 (YPbPr, VGA signal generator) VG849 (HDMI signal generator) CA210 (color analyzer) 2. Alignment procedure 2.1 Connect all the boards according to wiring diagram. Connect the power supply and presss “standby” to turn on the TV. 2.1.1 For 32”...
Page 7 ALIGNMENT INSTRUCTIONS 2.2 Alignment flow-chart The alignment flow-chart is shown below (Fig. 1) : Check if DDC, FLASH is written? Make Data Processing Board Mounting alignment (Check if the voltage is 120V) White balance alignment Input test signal, check TV all performance (such as all programs are searched, analog control, etc.).
Page 8 ALIGNMENT INSTRUCTIONS g) After closing the Factory menu, you can press SLEEP to enter the Factory Menu directly if power is still on. h) In Factory Menu, select “On” for “Aging Mode” to turn on aging mode. Press any button on the unit to exit.
Page 9 ALIGNMENT INSTRUCTIONS c) Alignment at YPbPr mode First perform ADC calibration: input 75% color bar plus gray step signal in 480i/60Hz format, (VG848 Timing is 968, PAT is 918), enter Factory Menu select ADC Setting, do ADC AUTO adjustment once. White balance adjustment: From VG848 equipment input 8 gray steps signal in 1920 x 1080i /60Hz format.
Page 10 ALIGNMENT INSTRUCTIONS 4 1920×1080i@59.94/60 Hz 33.75 59.94 74.25 1080i(59.94/60i) 5 1920×1080p@23.98/24 Hz 27.00 23.98/24 74.25 1080p(23.98/24p) 6 1920×1080p@59.94/60 Hz 67.50 60.00 148.50 1080p(59.94/60p) 4.4 Checking VGA jack Input VGA signal (VG848 signal generator)，respectively input all formats of VGA signal which is shown below (Table 9).
Page 11 ALIGNMENT INSTRUCTIONS Only HDMI2 Write with instrument like NA04 5272402002 AT24C02BN10SU-1.8 32”/37”/42”/46” EDID ALL11 models HDMI3 Write with instrument like NA07 5272402002 AT24C02BN10SU-1.8 EDID ALL11 HDMI1 Write with instrument like NA04 5272402002 AT24C02BN10SU-1.8 EDID ALL11 Only 26” model HDMI2 Write with instrument like NA07 5272402002 AT24C02BN10SU-1.8...
Page 12: Software Upgrade Instructions
Part No. Software name DX-19L150A11 9219KS7001 LC19KS70CPT.BIN DX-22L150A11 9222KS7001 LC22KS70CPT.BIN DX-24L150A11 9224KS7001 LC24KS70CMO.BIN DX-26L150A11 9226KS7001 LC26KS70AUO.BIN DX-32L150A11 9232KS7001 LC32KS70AUO.BIN DX-37L150A11 9237KS7001 LC37KS70AUO.BIN DX-40L130A11 SHARP 9240KS7001 LC40KS70SHARP.BIN DX-46L150A11 9246KS7001 LC46KS70AUO.BIN Method 1: 1. Disconnect the AC power, insert USB device into the SERVICE PORT.
Page 13 Software Update Instructions B. Making use of RS232 for upgrade Tips: A PC and the upgrade fixture designed for this KS# chassis are required. Use Mstar on-line writing tool – Mstar ISP Utility, the needed time is longer. 1. Power on the TV, connect the upgrade fixture correctly, open the upgrade software, click “Connect” icon.
Page 14 Software Update Instructions 3. Click “OK” , then click “Device” (see below figure). Mark “WP Pin pull to high during ISP” option. Mark “New Setting Below” option. Mark Bit7，Bit5，Bit4，Bit3，Bit2 from “Status Register” option. That is, the value of “Register Setting Value”...
Page 15 Software Update Instructions 5. Click “Auto” . Mark “Erase Device” option, select “File Area”. Mark “Blank”, “Program”, “Verify”, “Exit ISP” options. Click “Run” button, on the right will appear information of upgrade hints. When “Pass” appears, that means the upgrade is successful. 6.
Page 16: Working Principle Analysis Of The Unit
Working Principle Analysis of The Unit The analog and digital RF signal received by antenna will be sent to integrative tuner TUNER2(DA58GT-13-E, contains HF and IF amplifier circuits), which selects appropriate channel and sends the selected IF signal to the next level by the control of SDA, SCL. The analog RF signal sent to tuner, via high amplify and mixed frequency to get IF signal VIF, then it will be divided into two ways, one way will be sent to acoustic surface-wave ZF3 to IF filter and get better IF characteristics, then it will be sent to NF1(M61111FP) through pin20, 21 to do...
Page 17: Block Diagram
Block Diagram DDR SDRAM SPI FLASH DDR SDRAM SPI FLASH K4T51163QG-HCF7 MX25L3205DM2C-12G POWER K4T51163QG-HCF7 MX25L3205DM2C-12G POWER 12V、5V、3.3V、1.8V、1.2V、STB5.0V 12V、5V、3.3V、1.8V、1.2V、STB5.0V VGA AUDIO VGA AUDIO Panel Panel OTHER AUDIO OTHER AUDIO AUDIO AUDIO SWITCH AUDIO AUDIO SWITCH INPUTS LVDS INPUTS LVDS HEF4052BT HEF4052BT CVBS CVBS ANOLOG DEMO...
Page 18: Troubleshooting Guides
TROUBLESHOOTING GUIDES 1. no picture and no sound Press POWER button Connect the power and Check if the voltage of Is 24V on the power Check the power board on the unit or remote check X601 pin13 on the board normal? control, does indicator...
Page 19 TROUBLESHOOTING GUIDES 2. no picture No picture Can the unit be operated by remote control or Replace main keys on the set? board Is there 24V on the Check the power board Is there any backlight? power board? Replace main Display OSD normally IF X601 pin4/pin5 on board...
Page 20 TROUBLESHOOTING GUIDES Adjust the main board Which channel is no OTHER Replace main again picture? board Measure NF1 pin1, is Replace main there 1-1.5 VPP signal board or noise wave? Check if the output Check TUN2 and its from TUN2 pin12 is peripheric circuit normally? Check NF1 and its...
Page 21 TROUBLESHOOTING GUIDES 3. no sound (take TV as an example) No sound Check if there is wave Check if the voltage of Check NV03 and its inputted NV03 X602 pin4/pin5 peripheric circuit pin12/pin25? normal? Check if there is wave outputted from NV01 Check the power board pin1/ pin7? Check if wave output...
Page 22 TROUBLESHOOTING GUIDES Is there IF 45.75M Check NF1 and its outputtd from peripheric circuit TUNER2 pin12? Check TUNER2 and its peripheric circuit...
Page 23: Wiring Diagram
Wiring Diagram...
Page 24: Schematic Diagram
POWER BOARD FOR 32" MODEL page 1 of 9...
Page 25 POWER BOARD FOR 37" MODEL page 2 of 9...
Page 26 POWER BOARD FOR 40" MODEL page 3 of 9...
Page 27 POWER BOARD FOR 46" MODEL page 4 of 9...
Page 28 IR&KEY&TUNER page5 of 9...
Page 29 INTERFACE CIRCUIT (1) page 6 of 9...
Page 30: Printed Circuit Board Layouts
INTERFACE CIRCUIT (2) page 7 of 9...
Page 31 POWER page 8 of 9...
Page 32 MSD319 page 9 of 9...
Page 35: Exploded View Parts List
Exploded View Parts List...
