Pro Xp Auto
Waterborne AA Spray Gun
Air-assisted spray system for use when electrostatically spraying conductive, waterborne
fluids that meet at least one of the following conditions for non-flammability:
Material does not sustain burning in accordance with the Standard Test Method for
•
Sustained Burning of Liquid Mixtures, ASTM D4206.
Materials which cannot be ignited, in any mixture with air, by an energy source of less
•
than 500 mJ.
For professional use only.
100 psi (0.7 MPa, 7 bar) Maximum Air Inlet Pressure
3000 psi (21 MPa, 210 bar) Maximum Working Fluid Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Table of Contents.
333013B
EN
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Graco 333013B
Summary of Contents for Graco 333013B

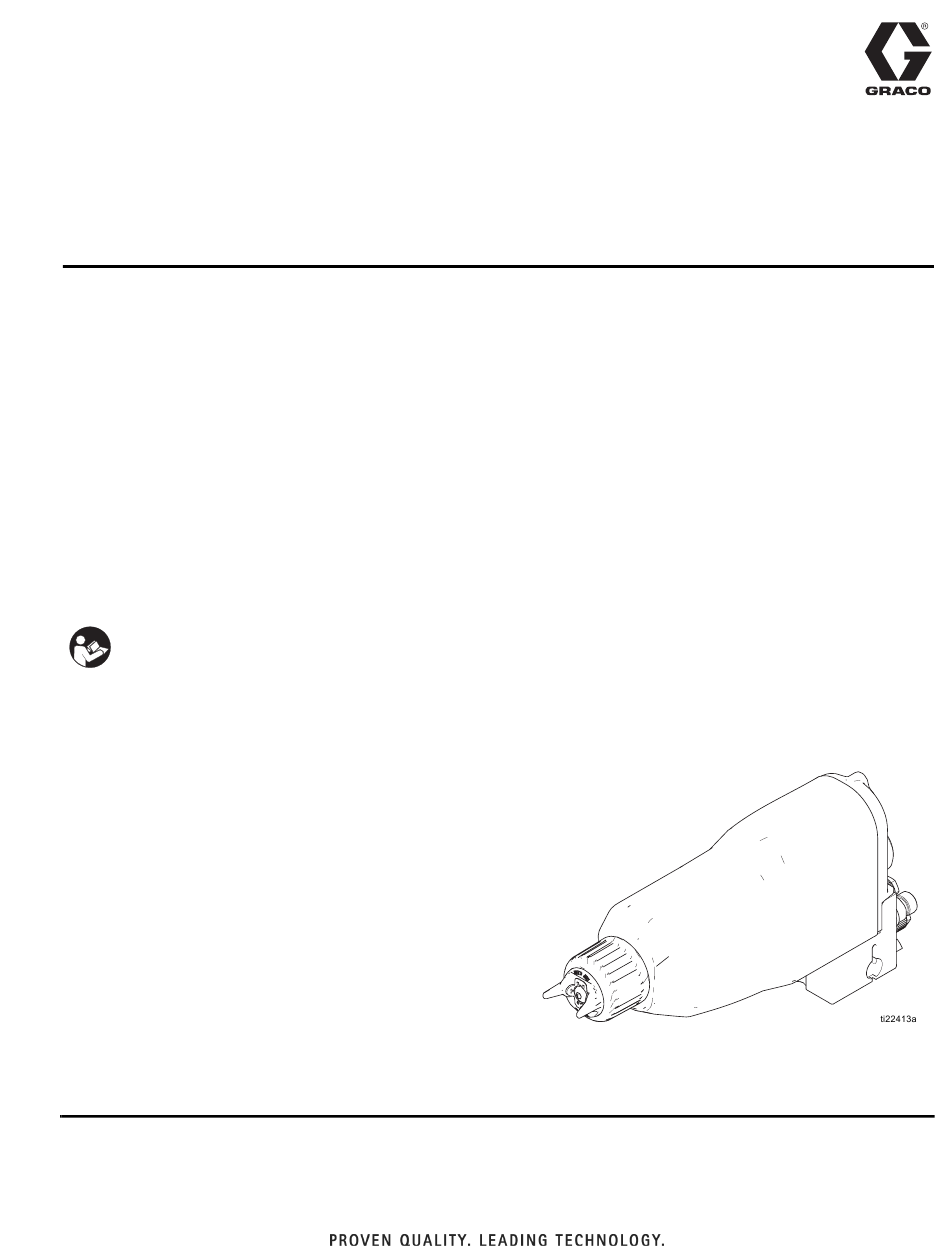

- Page 1 Instructions-Parts Pro Xp Auto 333013B Waterborne AA Spray Gun Air-assisted spray system for use when electrostatically spraying conductive, waterborne fluids that meet at least one of the following conditions for non-flammability: Material does not sustain burning in accordance with the Standard Test Method for •...
-
Page 2: Table Of Contents
Shutdown ........25 Graco Pro Xp Warranty ......62 Maintenance . -
Page 3: List Of Approved Models
FM14ATEX0082 EN 50059 • Materials which cannot be ignited, in any mixture with air, by an Ta 0°C-50°C energy source of less than 500 mJ. 0359 Related Manuals Manual No. Description 332989 Instructions - Pro Xp Auto Control Module 333013B... -
Page 4: Warnings
• Interlock the gun air supply with the voltage isolation system to shut off the air supply anytime the isolation system enclosure is opened. • Only use the red-colored Graco electrically conductive air hose with this gun. Do not use black or gray-colored Graco air hoses. - Page 5 • Do not stop or deflect leaks with your hand, body, glove, or rag. • Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment. • Tighten all fluid connections before operating the equipment. • Check hoses and couplings daily. Replace worn or damaged parts immediately. 333013B...
- Page 6 • Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces. • Do not kink or over bend hoses or use hoses to pull equipment. • Keep children and animals away from work area. • Comply with all applicable safety regulations. 333013B...
-
Page 7: Introduction
Use a PLC to select a spray profile To operate the electrostatics, apply air pressure to the gun manifold’s turbine air fitting (TA) through a Graco See the Pro Xp Auto Control Module manual 332989 for Grounded Turbine Air Hose. The air enters the manifold more information. -
Page 8: Spraying Waterborne Fluids Electrostatically
When connected to a voltage isolation system, all of the NOTE: The Graco warranty and approvals are void if fluid in the spray gun, fluid hose, and isolated fluid sup- the electrostatic spray gun is connected to a non-Graco... -
Page 9: System Overview
1 shows a typical electrostatic waterborne AA spray system. It is not an actual system design. For assistance IGURE in designing a system to suit your particular needs, contact your Graco distributor. Also refer to system pneumatic connections in F 3, page 13. -
Page 10: Gun Overview
Fiber Optic Fitting Transmit Shroud (Operational on Smart models only) Manifold Fiber Optic Fitting Receive Turbine (Operational on Smart models only) Power Supply ES Indicator Light (standard models only) Electrode Turbine Air Inlet Fitting Waterborne Fluid Hose Exhaust Outlet Fitting 333013B... -
Page 11: Installation
Graco Waterborne Fluid Hose Air exhaust velocity of 100 ft/min (31 linear meters/min- Use a Graco Waterborne Fluid Hose between the volt- ute) should be sufficient. age isolation system fluid outlet and the gun fluid inlet. See Accessories on page 57 for available hoses. The hose consists of an inner PTFE tube, a conductive layer covering the PTFE tube, and an outer cover. -
Page 12: Install The Air Line Accessories
The solenoid valves (K) must have a quick exhaust port so trapped air will be relieved between the valve and gun when the solenoids are shut off. 333013B... - Page 13 3 shows a typical electrostatic air-assisted spray system. It is not an actual system design. For assistance in IGURE designing a system to suit your particular needs, contact your Graco distributor. The turbine air supply (TA) must be electrically interlocked with the spray booth ventilation fans to prevent the power supply from operating without ventilating fans on.
-
Page 14: Install The Gun
See the detail in F IGURE 1. Connect the Graco Grounded Turbine Air Hose (B) to the gun's turbine air inlet (TA) and connect the hose ground wire (A) to a true earth ground (N). The... -
Page 15: Manifold Connections
Connect a 5/16 in OD exhaust tube to route the turbine exhaust air. (3 ft. max length) Turbine Air Inlet Fitting Connect the Graco Electrically Conductive Air Hose between this fitting (left-hand thread) and the solenoid. Connect the air hose ground wire to a true earth ground. -
Page 16: Connect The Waterborne Fluid Hose
Hose To reduce the risk of electric shock, the areas of the NOTE: The Graco warranty is void if the spray gun is Graco Waterborne Fluid Hose that are accessible to connected to a non-Graco voltage isolation system or if personnel during normal operation must be covered the gun is operated above 60 kV. -
Page 17: Fiber Optic Cable Connection
Port 6 Port 1 Gun 1 Key for F IGURE PRO Xp Auto Waterborne AA Spray Gun 24 Volt Power Supply Connection Remote I/O Connection Remote Control Module Bulkhead Fiber Optic Cable Gun 2 . 9 . Fiber Optic Schematic 333013B... -
Page 18: Agitator Kit Accessory
Installation Agitator Kit Accessory Grounding To add an agitator to the Graco isolation system, order Part No. 245895. See Agitator Kit 245895, page 56, for the kit parts list. When operating the electrostatic gun, any 1. Discharge the system voltage (see Fluid Voltage ungrounded objects in the spray area (people, Discharge and Grounding Procedure, page 22). -
Page 19: Check Electrical Grounding
Failure to follow this warning could cause fire, explosion, and electric shock and result in serious injury and property damage. Graco Part No. 241079 Megohmmeter is available as an accessory to check that the gun is properly grounded. 1. Have a qualified electrician check the electrical grounding continuity of the spray gun and turbine air hose. -
Page 20: Install The Fabric Cover
Adjust as necessary. Flush Before Using Equipment The equipment was tested in fluid at the factory. To avoid contaminating your fluid, flush the equipment with a compatible solvent before using the equipment. See Flushing, page 26. . 13 . Fabric Cover 333013B... -
Page 21: Operation
See Grounding on page 18. The Graco Waterborne Fluid Hose is in good condition with no cuts or abrasions. Replace hose if damaged. The condition of the gun’s electrical components has been checked as instructed in Electrical Tests on page All fluid hose connections are tight. -
Page 22: Fluid Voltage Discharge And Grounding Procedure
3. Turn off all the air to the spray gun except the cylin- tem component. Contact your Graco distributor to order. der air, which triggers the gun. NOTE: The air shut-off device must bleed the air out of 1. -
Page 23: Install The Spray Tip
To reduce the risk of injury, never exceed the maximum working pressure on the lowest rated 2. Follow the Pressure Relief Procedure, page 22. system component. Maximum working pressure of this equipment is 3000 psi (21 MPa, 210 bar). 3. Open the isolated enclosure door. 333013B... -
Page 24: Adjust The Electrostatics
Hose Length for full voltage ft (m) psi (bar, MPa) 15 (4.6) 54 (3.8, 0.38) 25 (7.6) 55 (3.85, 0.38) 36 (11) 56 (3.9, 0.39) 50 (15.3) 57 (4.0, 0.40) 75 (22.9) 59 (4.1, 0.41) 100 (30.5) 61 (4.3, 0.43) 333013B... -
Page 25: Spraying
26. If any fluid leakage from the gun is detected, stop spraying immediately. Fluid leakage into the gun shroud could cause fire or explosion and result in serious injury and property damage. See Check for Fluid Leakage, page 28. 333013B... -
Page 26: Maintenance
Discharge and Grounding Procedure, page 22. 3. Follow the Pressure Relief Procedure, page 22. 4. Remove and clean the air cap and spray tip. 5. Change the fluid source to non-flammable solvent. 6. Trigger the gun to flush the fluid passages clean. 333013B... -
Page 27: Clean Outside Of Gun
6. Clean the retaining ring (24), air cap/tip guard performing the Fluid Voltage Discharge and assembly (25), and spray tip (3) with a soft brush Grounding Procedure, page 22. daily, minimum. Replace any damaged parts. Be careful not to damage the electrode (25a). 333013B... -
Page 28: Check For Fluid Leakage
Apply sili- cone-free grease to the threads when necessary. • Visually inspect the ground strip (240) for damage. Replace if needed. Measure the resistance weekly. See Test Ground Strip Resistance, page 30. 333013B... -
Page 29: Electrical Tests
37 for other possible causes of • Or all spraying devices in the hazardous area are poor performance, or contact your Graco distributor. turned off, ventilation fans in the hazardous area are operating, and there are no flammable vapors 6. -
Page 30: Test Ground Strip Resistance
(209) to the ground • Do not replace the conductive ring with anything lug (214). Resistance must be less than 100 ohms. If but a genuine Graco part. greater than 100 ohms, replace the grounding cylinder (227). -
Page 31: Troubleshooting
• Dielectric breakdown of hoses, seals, or connec- tem, since all of the system components are electrically tions connected through the conductive, waterborne fluid. • Isolators not functioning properly 333013B... - Page 32 Fluid hose: check for leakage or any bulges in 7. Check that the voltage isolation system's enclosure the outer cover, which may indicate an internal door is closed and that any safety interlocks are leak. engaged and working properly. • Internal voltage isolation system components 333013B...
- Page 33 10. Turn the turbine air to the gun on. Measure the volt- age at the gun electrode with a voltage probe and meter. 11. If the meter reading is 55-60 kV, the gun power sup- ply is okay, and there is probably a dielectric break- 333013B...
-
Page 34: Spray Pattern Troubleshooting
Atomization air pressure too low. Increase atomization air pressure. Fluid pressure too low. Increase. Fluid buildup on air cap/tip guard. Atomization air pressure too high. Decrease. Fluid pressure too low. Increase. Plugged or damaged air cap hole Clean, see page 27. 333013B... -
Page 35: Gun Operation Troubleshooting
Replacement page 39. Loose spray tip. Tighten retaining ring (24); see Air Cap/Tip Guard, Spray Tip, and Fluid Seat Housing Replacement page 39. Damaged tip seal (3a). Replace; see Air Cap/Tip Guard, Spray Tip, and Fluid Seat Housing Replacement page 39. 333013B... - Page 36 Replace needle; Fluid Needle Replacement, page 40 Piston sticking Clean or replace o-rings. See Piston Repair, page 41 Excessive paint wrap back to opera- Poor grounding See Grounding, page 18 Incorrect distance from gun to part Should be 8-12 in. (200-300 mm). 333013B...
-
Page 37: Electrical Troubleshooting
ES indicator light is red (standard Turbine speed is too high Decrease air pressure until indicator models only) is green Pro Xp Auto Control Module displays See manual 332989 for Event Code event code (smart models only) Troubleshooting. 333013B... -
Page 38: Repair
Waterborne Fluid Hose, page 16. • Only use genuine Graco parts. Do not mix or use parts from other PRO Gun models. 4. Tighten strain relief screws. • Air Seal Repair Kit 24W396 is available. The kit must be purchased separately. -
Page 39: Air Cap/Tip Guard, Spray Tip, And Fluid Seat Housing Replacement
• Never operate the gun without the conductive ring in place. • Do not replace the conductive ring with anything but a genuine Graco part. . 26 Remove Air Cap 5. Remove the fluid seat housing (4) using the multi-tool (48). -
Page 40: Electrode Replacement
To avoid damaging the seat housing and gun barrel, never overtighten the seat housing. Overtightening may result in improper fluid shutoff. 11. Install the seat housing and air cap, page 39. 12. Test Gun Resistance, page 29. ti19524 . 30 Spring Cap and Springs 333013B... -
Page 41: Piston Repair
8. Align the two stems (11c) with the holes in the gun body and press the piston assembly into the back of the gun until it bottoms. Install piston cap (13) and spring (12). 9. Install and adjust the actuator arm, page 42. 333013B... -
Page 42: Adjust The Actuator Arm
5. Install the gun shroud (26) and air cap/tip guard assembly (25), page 39. 6. Install the gun onto the manifold. See page 38. 0.125 in. (3 mm) gap 16b 11b . 34 . Actuator Arm Adjustment . 35 . Barrel Removal 333013B... -
Page 43: Barrel Installation
3–wire ribbon cable (PC) upward and back, so the bend faces the power supply and the connector is at the top. 7. Connect the 3-wire ribbon connector (PC) to the power supply. Smart models only: connect the 6–pin flexible cir- cuit (30) to the power supply. 333013B... -
Page 44: Turbine Removal And Replacement
(7a) are in place. Replace gas- ket (9) if damaged. Assemble the barrel (1) to the gun body (10). See Barrel Installation, page 42. 10. See Test Gun Resistance, page 29. . 39 . Fan Orientation ◆ . 38 . Power Supply 333013B... - Page 45 See Power Supply 10. Install the new bottom bearing (8b1.) on the long Removal and Replacement, page 43. end of the shaft (S). The flatter side of the bearing Slot 8f◆ ◆ ◆ ◆ ◆ ◆ . 41 . Turbine 333013B...
-
Page 46: Parts
Parts Parts Standard Pro Xp Auto Waterborne AA Gun Models HA1T18, Rear Manifold Torque to 20 in-lbs (2 N•m) 333013B... - Page 47 Included in air seal repair kit 24W390 (purchase Auto (pack of 2) separately) 24W411 FITTING, Adapter, M12 TO 1/4, ◆ Included in Turbine Assembly 24N664 (pur- LH, XP chase separately). See Turbine Assembly, 24N644 RING, retainer, assy; includes 24a page 51. 333013B...
-
Page 48: Smart Pro Xp Auto Waterborne Aa Gun Models
Parts Smart Pro Xp Auto Waterborne AA Gun Models HA1M18, Rear Manifold Torque to 20 in-lbs (2 N•m) 333013B... - Page 49 24N793 RING, retainer, assy; includes 24a separately) ■ 198307 PACKING, u-cup; UHMWPE ◆ Included in Turbine Assembly 24N664 (pur- See Air Cap Assembly, page 50 chase separately). See Turbine Assembly, page 51. 24N643 ELECTRODE, package of 5 24W388 COVER, shroud, Auto XP 333013B...
-
Page 50: Air Cap Assembly
24N643 ELECTRODE, package of 5 24N734 O-RING; PTFE; package of 5 (also available in package of 10; order 24E459) ------ AIR CAP 24N726 GUARD, tip, orange Ref. Part No. Description HOSE, 25 ft (7.6m) 600a FITTING, connector, barrel, WB 333013B... -
Page 51: Turbine Assembly
These parts are included in Air Seal Repair Kit ◆ ------ FAN; part of item 8b 24W390 (purchase separately). 8f◆ ------ CAP, housing; part of item 8d ◆ These parts are included in Bearing Kit 24N706 (purchase separately). Parts labeled ------ are not available separately 333013B... -
Page 52: Wb 3000 Isolation Enclosure
Parts WB 3000 Isolation Enclosure Part No. 24N550 Waterborne Isolation Enclosure; includes items 201-206 333013B... - Page 53 116990 BOX, control 113983 RING, retaining; 1/2 in. (13 mm) 237933 METER, 0–90 kV 113336 ADAPTER; 1/4 npt ------ SCREW, pan hd; 10–32 x 5/8 in. (16 ------ SCREW, pan hd; 10–32 x 1/4 in. (6 mm) 1 ------ HOLDER, tie 333013B...
-
Page 54: Tubing And Wiring
Parts Tubing and Wiring Detail Views of Control Box A1 A2 C2, C9 C3, C4, C5 Detail View of Door Interlock Switch 333013B... - Page 55 10 gauge wire from meter 8 (204) green/yellow 14 gauge wire from inter- (+) to internal box ground lug nal box ground lug to cylinder cap 4 (102) 3/8 OD tube, bulkhead to manifold 333013B...
-
Page 56: Agitator Kit 245895
405 197298 COVER, pail; 5 gal. (19 liter) 406 224571 AGITATOR; see manual 306565 407 purchase TUBE, nylon; 1/4 in. (6 mm) OD; 4 ft locally (1.22 m) 408 110272 SCREW, set, socket hd; 1/4–20 x 1/4 in. (6 mm) 333013B... -
Page 57: Accessories
Fiber Optic Cable, 50 ft (15 m) 186118 English Warning Sign. Available at no charge 24X005 Fiber Optic Cable, 100 ft (30.5 m) from Graco. Fiber Optic Cable Repair Kit 24W875 Parts necessary to replace damaged ends on Test Equipment one cable assembly. -
Page 58: Dimensions
Accessories Dimensions Rear Inlet Manifold 2.6 in (66 mm) 11.0 in (279 mm) 2.5 in (63 mm 10.4 in (265 mm) 8.2 in (208 mm) 0.53in (13.5 mm) 2x 1/4-20 UNC 333013B... -
Page 59: Spray Tip Selection Chart
* Tips are tested in water. Fluid output (Q) at other pressures (P) can be calculated by this formula: Q = (0.041) (QT) where QT = fluid output (fl oz/min) at 600 psi from the above table for the selected orifice size. 333013B... -
Page 60: Aef Fine Finish Pre-Orifice Spray Tips
* Tips are tested in water. Fluid output (Q) at other pressures (P) can be calculated by this formula: Q = (0.041) (QT) where QT = fluid output (fl oz/min) at 600 psi from the above table for the selected orifice size. 333013B... -
Page 61: Technical Data
5/32 in. OD nylon tube Fluid inlet fitting Waterborne Hose Fitting Materials of Construction Wetted Parts Stainless Steel; Nylon, Acetal, Ultra-High Molecular Weight Poly- ethylene, Fluoroelastomer, PEEK, Tungsten Carbide, Polyethylene Notes Loctite ® is a registered trademark of the Loctite Corporation. 333013B... -
Page 62: Graco Pro Xp Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
