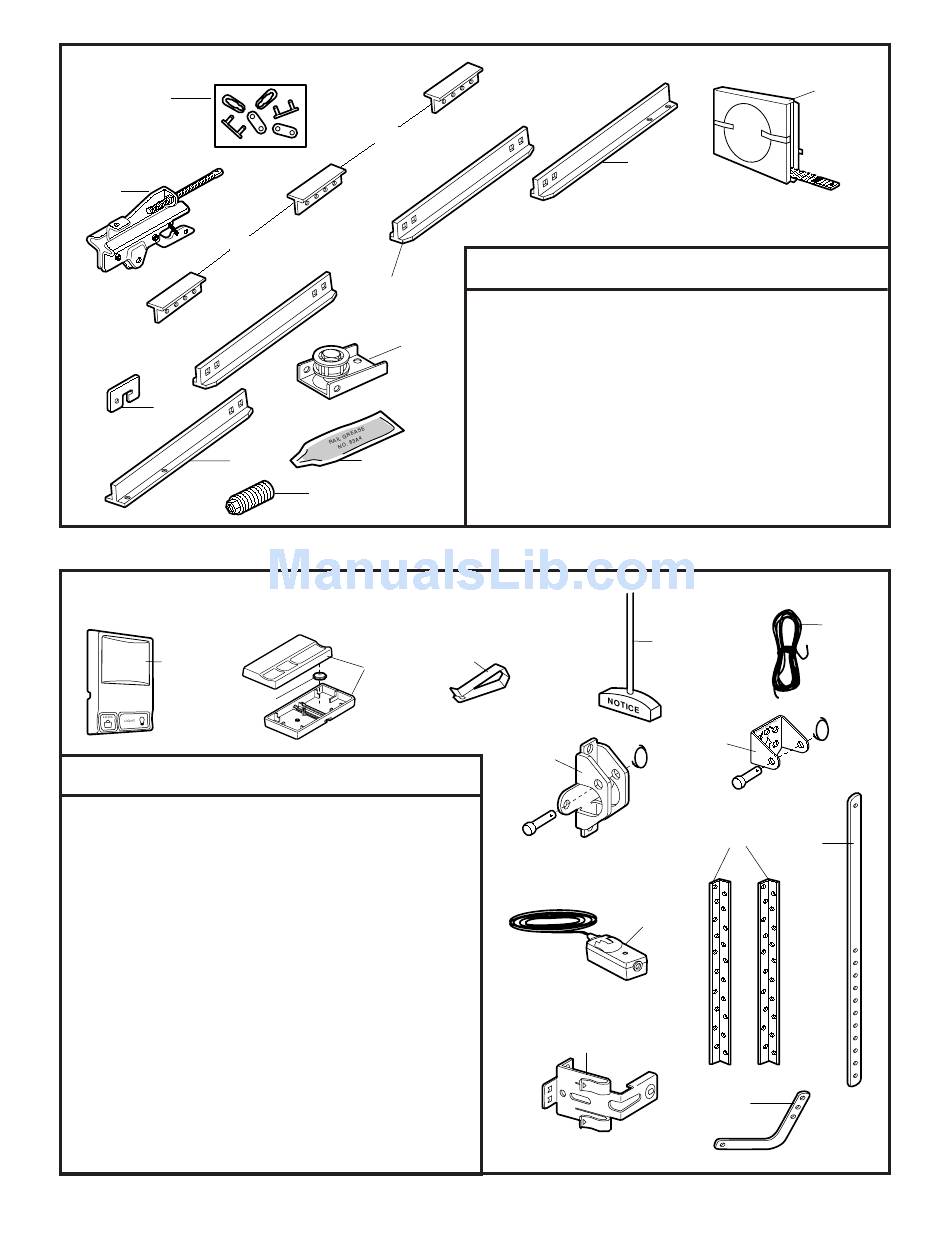

Rail Assembly Parts

1
2
3
10
5

Installation Parts

1
KEY PART
NO. NO. DESCRIPTION
1 41A5273-8 Multi-function door control panel
2 41A5056- Multi-function remote control
3CGI housing only (no circuit board)
3 10A20 3V2032 Lithium battery
4 29B137 Transmitter visor clip
5 41A2828 Manual release rope & handle assembly
6 217A238 2-conductor bell wire – white & white/red
7 41A5047-1 Door bracket w/clevis pin & fastener
8 41A4353-1 Header bracket w/clevis pin & fastener
9 178B34 Straight door arm section
10 12B350 Hanging brackets
11 41A5034 Safety sensor kit
(receiving and sending eyes)
with 3' 2-conductor bell wire attached
12 41A5266-1 Safety sensor brackets (2)
13 178B35 Curved door arm section
NOT SHOWN
41A4437-10 Installation hardware bag (see page 7).
114A2486 Owner's manual
Repair Parts
3
4
7
8
9
2
3
5
KEY PART
NO. NO. DESCRIPTION
1 1A995 Master link kit
2 41B3869-1 Complete trolley assembly
3 183B112 Rail braces (each)
4 183B111 T-rail – center sections (each)
5 183B113 T-rail – end sections (each)
6 41A3589-12 Full belt assembly
7 41A3588-1 Belt pulley bracket
8 83A4 Rail grease
9 41B4103 Tension assembly (Spring/Trolley Nut)
10 109B33 Trolley Clip
NOT SHOWN
41A2848 Rail assembly hardware kit (see page 7).
4
7
11
12
36
6
6
5
8
10
9
13
