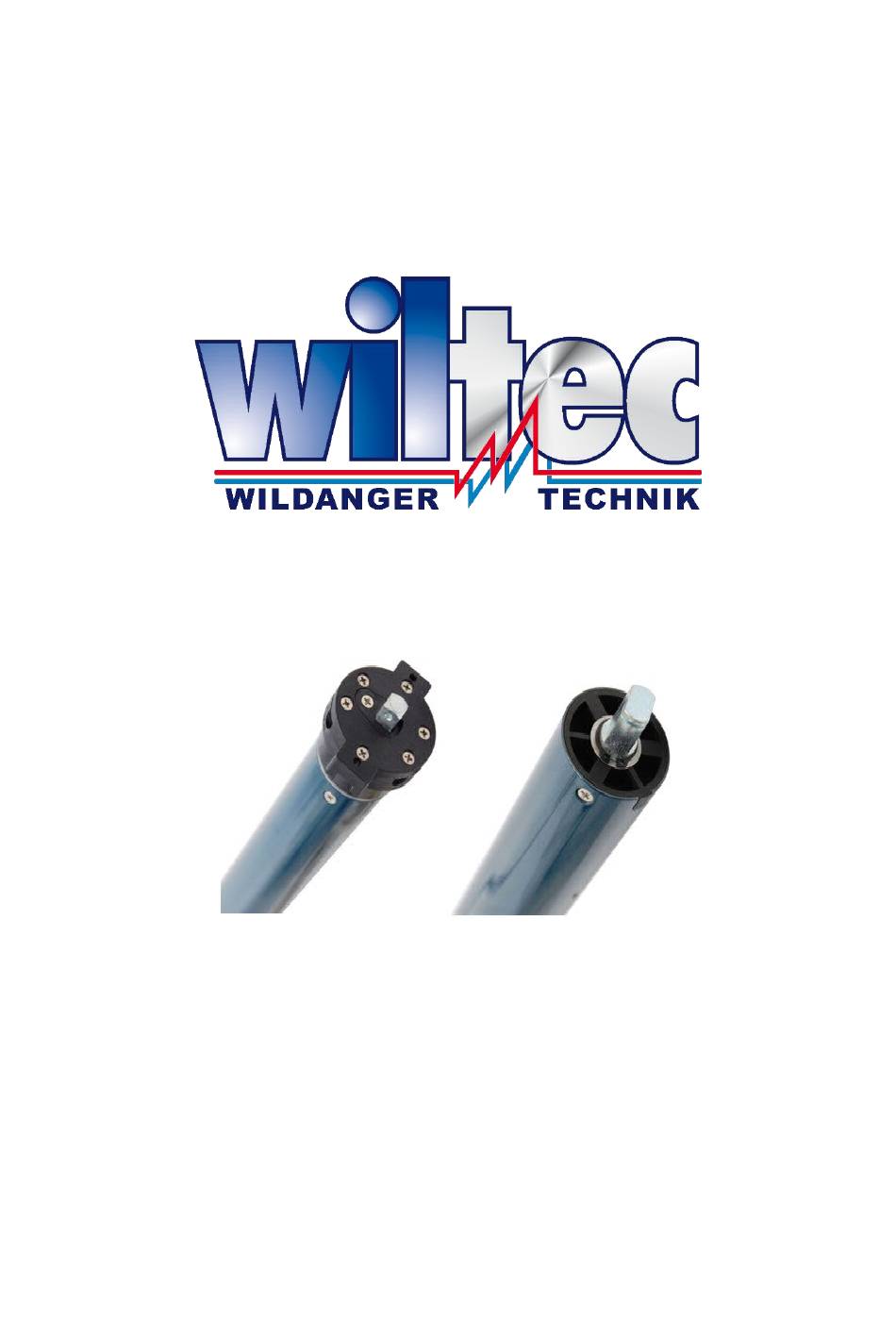

Operation Manual
Roller Shutter Motor
62455-62460
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62455 and is the answer not in the manual?

Questions and answers

Summary of Contents for WilTec 62455

  • Page 1 Operation Manual Roller Shutter Motor 62455-62460 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignific - antly.
  • Page 2 All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
  • Page 3: Technical Specifications

    Rated speed 15 rpm 17 rpm 15 rpm 15 rpm Tube diameter Ø45 mm Ø35 mm Ø45 mm Ø45 mm Protection class IP44 IP44 IP44 IP44 © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 3 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
  • Page 4: Mounting Instructions

    Make sure that the roller shutter shaft with the motor inside is installed within a horizontal posi-  tion and placed directly above the door or window that is supposed to be covered with the rol- ler shutter (Fig. 7) © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 4 http://www.WilTec.de http://www.aoyue.eu...
  • Page 5 When installing the motor above win- dows or doors, it can either be placed on the right or the left side. © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 5 http://www.WilTec.de...
  • Page 6  Then use the controls to bring the roller shaft (5) into its lowest position (the one where the shutter would be completely unwound). This sets the lower end position. © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 6 http://www.WilTec.de...
  • Page 7 If the combination of the blue and brown cable is activated, the motor will cause the drive adapter to rotate clockwise, while the combination of the blue and black cable will cause the drive adapter to ro - tate counter-clockwise. © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 7 http://www.WilTec.de...
  • Page 8: Additional Information

    Make sure that moving parts are lot of noise while being or pieces of the installation not obstructed and shorten the lowered. may be obstructed. shaft if necessary and possible. © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 8 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
  • Page 9 Code Addition Note: A maximum of 20 codes can be saved. Transmitter A = Code aligned Transmitter B = Code unaligned © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 9 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
  • Page 10 1.5 seconds. This will cause the shutter to be completely raised or lowered after shortly tapping one of the buttons. The operation of the motor will thereby proceed until it either reaches a set limit or the “Stop” button is pressed. © by WilTec Wildanger Technik GmbH Artikel 62455-62460 Seite 10 http://www.WilTec.de...
  • Page 11: Disposal Regulations

    All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.
