GENERAL DIESEL ENGINE C178F/C178FD
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Technik GmbH
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de
Operation Manual
C186F/C186FD
C188F/C188FD
Seite 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the C178F and is the answer not in the manual?

Questions and answers

patrick houben
March 6, 2025

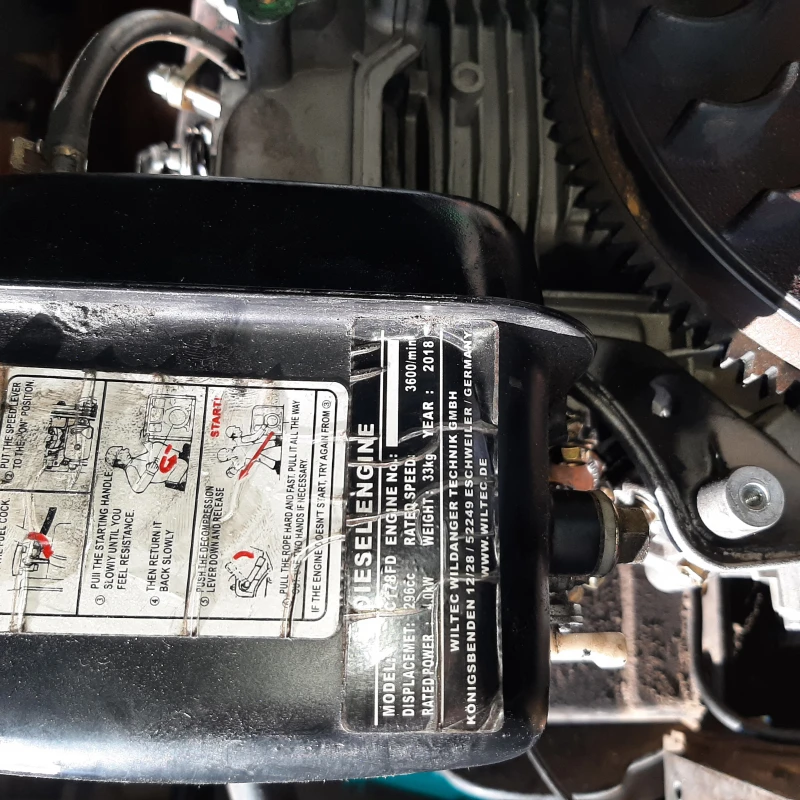

Hij start niet meer

User image 67c9b3ab54896
1 comments:
Mr. Anderson
March 6, 2025

The WilTec C178F may not start for several reasons:

1. Electric Start Issues – If the accumulator liquid level is too low, the electric motor may not receive enough current to operate.
2. Engine Run Time – If the motor has been used for too long, the accumulator voltage may drop, preventing the engine from starting.
3. Winter Conditions – In cold weather, the engine may be difficult to start. Adding 2 cc of machine oil after removing the rubber seal plug can help.
4. Key Switch Position – The key switch must be in the "ON" position while the engine is running.
5. Fuel Issues – If there is insufficient fuel or the fuel quality is poor, the engine may not start.
6. Oil Level – If the oil level is too low, the engine may fail to operate properly.

Checking these factors can help diagnose and resolve the starting issue.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for WilTec C178F

  • Page 1 Due to further developments, illustrations, functioning steps and technical data can differ insignificantly. Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us. © by WilTec Wildanger Technik GmbH Seite 1 http://www.WilTec.de http://www.aoyue.eu...
  • Page 2 The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of WilTec Wil- danger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram.
  • Page 3 If you have any questions or suggestions about this manual, please contact us or dealer. User should pay attention to that with the improvement of our products the description in this manual may differ from practical products. © by WilTec Wildanger Technik GmbH Seite 3 http://www.WilTec.de http://www.aoyue.eu...
  • Page 4 ●Keep the engine at least 3 feet(1 meter) away from build- ings or other structures. ●Keep the engine away from flammables and other haz- ardous materials(trash, rags, lubricants, explosives). © by WilTec Wildanger Technik GmbH Seite 4 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 5 Take care not to overfill the tank. ●Wear snug fitting working clothes when operating the engine. ●Loose aprons, towels, belt, etc., may be caught in the engine or driving train causing a dangerous situation. © by WilTec Wildanger Technik GmbH Seite 5 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 6 Ignition system Compaction Power output mode Vertical power shaft Start Model Electric /Manual Output direction of power Counterclockwise shaft 397×440×473 411×468×505 Dimensions(L×W×H) (mm) ≤33 ≤48 ≤50 Dry weight (kg) © by WilTec Wildanger Technik GmbH Seite 6 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 7 If the belt is fixed too tight, the engine will be overloaded while starting, the belt will be drawn longer, and the engine may be damaged. If the belt is fixed too loose, the belt will slip at high speed and high load. © by WilTec Wildanger Technik GmbH Seite 7 http://www.WilTec.de http://www.aoyue.eu...
  • Page 8 Table 1-2 Model C178F/C178FD C186F/C186FD C188F/C188FD Item Type belt Qty. Min. diameter of pulley ≤70mm 1-2-4 Crank shaft (Original type) driving angle must be than 120°, see Fig 1-1 Fig.1-1 © by WilTec Wildanger Technik GmbH Seite 8 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 9 Table 1-4 Unit: AH C178F/ C178FD 24∼36 C186F/ C186FD 36∼45 C188F/C188FD 36∼45 1-3 Connecting Sizes 1-3.1 Sizes of output shaft MODEL Spline shaft Taper shaft C178F/ C178FD C186F/ C186FD C188F/C188FD © by WilTec Wildanger Technik GmbH Seite 9 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 10 1-5.1 Valve open and close phase (see table 1-5) Table 1-5 Unit: CA MODLE PHASE ITEM C178F/C178FD C186F/C186FD C188F/C188FD Intake valve open BTDC 18° BTDC 13° BTDC 16° Intake valve close ATDC 46° ATDC 52° ATDC 44° © by WilTec Wildanger Technik GmbH Seite 10 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 11 Flywheel nut(N·m) 100∼120 130∼150 130∼150 Retighten Nozzle retainer nut(N·m) 10∼12 up after Tighten bolt of rocker support( test period 25∼30 N·m) Standard M8 bolt(N·m) 18∼20 Standard M6 bolt(N·m) 10∼12 © by WilTec Wildanger Technik GmbH Seite 11 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 12 Stop Power of engine is not good or the color of exhaust is abnormal, change the core. Do not operate the engine without the core of fil- Start/Ru ter. © by WilTec Wildanger Technik GmbH Seite 12 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 13 When checking oil level, put the oil scale into the inlet lightly. Do not turn the oil scale. Model C178F/C178FD C186F/C186FD C188F/C188FD Capacity 1.65 Liter British Gal (0.24) (0.36) © by WilTec Wildanger Technik GmbH Seite 13 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 14 Change machine oil once every twenty hours or at the end of first month at primary running time and then once every three months or 100 hours About one month 20 Every 3 months or 100 hours hours Interval of Changing Machine Oil © by WilTec Wildanger Technik GmbH Seite 14 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 15 2-3 Start of the diesel engine 2-3.1 Recoil start NOTE: WHEN THE ENGINE IS RUNNING, DO NOT PULL THE RECOIL HANDLE OTHERWISE THE ENGINE MAY BE DAMAGED. © by WilTec Wildanger Technik GmbH Seite 15 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 16 © by WilTec Wildanger Technik GmbH Seite 16 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 17 So, keep the liquid level between upper and low limit marks. The liquid will splash on near parts (which will be spoiled) if it is too much in the ac- cumulator. © by WilTec Wildanger Technik GmbH Seite 17 http://www.WilTec.de http://www.aoyue.eu...
  • Page 18 Do not pull out the plug unless filling oil. If plug is not at its correct position, rain, dust or other impurity may be sucked into the engine to cause serious failure or to damage engine parts. © by WilTec Wildanger Technik GmbH Seite 18 http://www.WilTec.de http://www.aoyue.eu...
  • Page 19 (2) Set the speed governor lever at “stop” position. Decrease the load gradually when stopping the engine. Sudden stop of engine will cause abnormal increasement of temperature. Do not stop engine with dcompression lever. © by WilTec Wildanger Technik GmbH Seite 19 http://www.WilTec.de http://www.aoyue.eu...
  • Page 20 NOTE: Only when stopping the engine can you pull the recoil handle, otherwise the engine may be damaged. © by WilTec Wildanger Technik GmbH Seite 20 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 21 (First time) Grind valve holder of inlet and ex- haust Change piston ring Check accumulator liquid Each month (Clean)every Clean the core of air filter month or 50 Hrs © by WilTec Wildanger Technik GmbH Seite 21 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 22 500 Hrs or when main- taining Model C178F/C178FD(1D70) C186F/C186FD(1D100) C188F/C188FD(1D100) Capacity 1.10 1.65 (Liter Change Operating period First First month or after 20 Hrs. Second and la- Every 30 months or 1000 Hrs. © by WilTec Wildanger Technik GmbH Seite 22 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 23 (6) Clean out machine oil and dirt from the engine, and to put the engine at a dry place. © by WilTec Wildanger Technik GmbH Seite 23 http://www.WilTec.de http://www.aoyue.eu...
  • Page 24 CHAPTER4 PARTS LIST OF DIESEL ENGINE ASSEMBLY DIAGRM © by WilTec Wildanger Technik GmbH Seite 24 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 25 15123 26117 Back spring slide sheath GB/T290 Roller bearing 26232 wrest spring 26290 Bearing HK081410 11115 Drain plug 11114 Gasket, crankcase 11116 Washer 13113 Timing driving gear 11100 Crankcase © by WilTec Wildanger Technik GmbH Seite 25 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 26 Heat insulation sheath 31120 Rotor assembly 各1 28712 Sprinkling machine adjust washer 19316 Clip 28700 Sprinkling machine assembly GB/T5789 Bolt M6×8 28711 Sprinkling machine seasaw GB/T819.1 Bolt M6×12 拨叉调整垫片 14416 26113 © by WilTec Wildanger Technik GmbH Seite 26 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 27 Grind the gas valves, if the vestige is too deep, please send it to factory for temedy. The valve stem is clipped on Disassemble the gas valve and clean the stem guide pipe. and guide pipe. © by WilTec Wildanger Technik GmbH Seite 27 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 28 Or change the nozzle if it is damaged. Air is not enough or leaky. Clean the air filter, check the cause of leakage and remedy. © by WilTec Wildanger Technik GmbH Seite 28 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 29 Check each motional part carefully. Exhaust with black smoke suddenly. Check fuel system, especially nozzle. There is metal knocking sound rhythmi- The fuel delivery angle is too big. Adjust cally in the cylinder. © by WilTec Wildanger Technik GmbH Seite 29 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 30 CHAPTER6 WIRING DIAGRAM © by WilTec Wildanger Technik GmbH Seite 30 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
