- Page 1 RG-EW1200G PRO 1300M Dual-band Wireless Router Confidentiality: D Document attribution: Product Management Department Target users: All RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router V1.1 Ruijie Networks Co., Ltd. All rights reserved...
- Page 2 RG-EW1200G PRO 1300M Dual-band Wireless Router R e v i s i o n R e c o r d Revision date Version Revised Details Author section 2020/4/24 First draft Lei Lin 2020/7/22 Second draft(Logo change, delete unavailable content such as reyee app, wechat function, etc)
- Page 3 RG-EW1200G PRO 1300M Dual-band Wireless Router P r e f a c e This document includes the product pictures, overview, features, technical specifications, typical applications and ordering information of RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router (Enhanced Edition) for marketing purpose. Note：...
-
Page 4: Table Of Contents
RG-EW1200G PRO 1300M Dual-band Wireless Router C o n t e n t s Product Photo ..............................1 Product Overview .............................. 2 Product Features ..............................3 Hardware Specifications ............................ 5 Software Specifications ............................. 6 Typical Applications ............................7 Ordering Information ......................错误!未定义书签。... -
Page 5: Product Photo

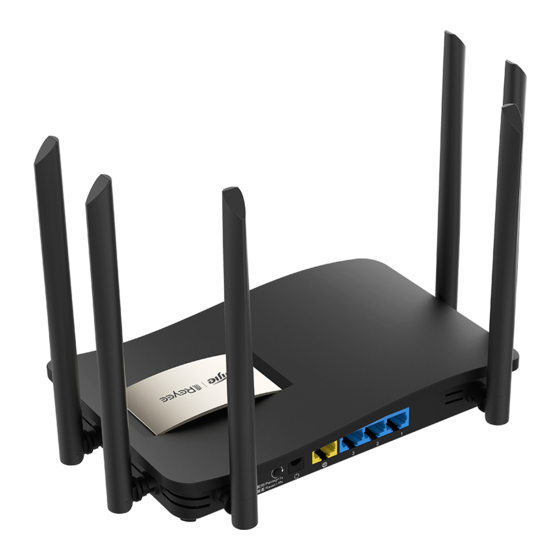

RG-EW1200G PRO 1300M Dual-band Wireless Router Product Photo RG-EW1200G PRO... -
Page 6: Product Overview
RG-EW1200G PRO 1300M Dual-band Wireless Router Product Overview Ruijie Reyee RG-EW1200G PRO is a Gigabit dual-band wireless consumer router designed for one-story homes, villas, small shops, SOHO and other scenarios. The device can meet the needs of Gigabit Internet access with its excellent performance, while providing strong signals and coverage. -
Page 7: Product Features
40 to 50M, which is unlikely to reach 100M. RG-EW1200G PRO provides both 2.4GHz and 5GHz wireless frequency bands at the same time. The 2.4GHz frequency band offers good penetration, long transmission and wide coverage, providing good basic signal coverage. - Page 8 RG-EW1200G PRO 1300M Dual-band Wireless Router Wi-Fi terminal, such as false signal and terminal signal unable to transmit back to the router. In addition, the external omnidirectional antennas also further ensure the Wi-Fi signal coverage. Exclusive Easy Link Technology Enables Zero-configuration Networking for Multiple Devices Easy-Link is a networking technology self-developed by Ruijie for multiple wireless routers’...
-
Page 9: Hardware Specifications
RG-EW1200G PRO 1300M Dual-band Wireless Router Hardware Specifications 2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps Antenna: External 6dBi non-removable omnidirectional antennas Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency Wireless integration... -
Page 10: Software Specifications
RG-EW1200G PRO 1300M Dual-band Wireless Router Software Specifications Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay Obtain PPPoE account from the old router Wi-Fi dual-band separation/ integration Guest Wi-Fi; smart home Wi-Fi; wireless network isolation... -
Page 11: Typical Applications
RG-EW1200G PRO 1300M Dual-band Wireless Router Typical Applications RG-EW1200G PRO is an ideal choice for wireless network deployment in one-story houses, villas, small shops, and SOHO. RG-EW1200G PRO can realize flexible networking and seamless roaming for multi-device via the Easy Link Technology, providing stable and high-speed wireless experience. - Page 12 Installation Guide For better use of Reyee products, please read this guide before installation Appearance System Status Indicator pairing/Reset Button press >10s to reset press <1s to pair Power WAN Port/ndicator LAN1-3 Port/ndicator Packing List Router *1 Power Adapter *1 Quick Installation Guide *1 Warranty card *1 Quick Installation...
- Page 13 ❷ Access the Internet Connect to the SSID “@Ruijie-sxxxx” or “@Ruijie-mxxxx” (xxxx is the last 4 digits of MAC address) by mobile phone or PC. The configuration page will be displayed automatically, or you can visit 192.168.110.1 by browser. WLAN Browser *If you can not connect to the SSID or visit the website, please scan the QR-code on the back of package for online support.
- Page 14 settings. If they are configured before, restore the factory settings first (see the FAQ for how to restore the factory settings). Do not connect the network cable to the routers. Power on the routers within 2 meters of the main router, and their indicators will start to blink quickly.
- Page 15 Indicator Instruction Indicator Status Description The router is powered off Steady On The router is running normally Restoring factory System Status Indicator Fast Blinking settings/Rebooting Reyee Mesh is being paired or Slow Blinking repeater stops The port is not connected or the cable disconnects Port Indicator Steady On...
- Page 16 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 17 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
