- Page 1 Ruijie Networks – Innovation Beyond Networks Ruijie RG-MTFI Implementation Cookbook (V1.0)
- Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
-
Page 3: Preface
Ruijie RG-MTFI Implementation Cookbook (V1.0) Preface 1 Preface Audience Network Engineers Network Administrator Obtain Technical Assistance Ruijie Networks Websites: http://www.ruijienetworks.com Ruijie Service Portal: http://case.ruijienetworks.com Welcome to report error and give advice in any Ruijie manual to Ruijie Service Portal Related Documents ... -
Page 4: Table Of Contents
Ruijie RG-MTFI Implementation Cookbook (V1.0) Contents 2 Contents Preface ..............................1-1 Contents ..............................2-2 Product Introduction ..........................3-3 Product Overview ........................3-3 Quick Start.............................. 4-4 Hardware Installation ....................... 4-4 4.1.1 Installing the Host ....................... 4-5 4.1.2 Installing the Antenna ......................4-6 4.1.3... -
Page 5: Product Introduction

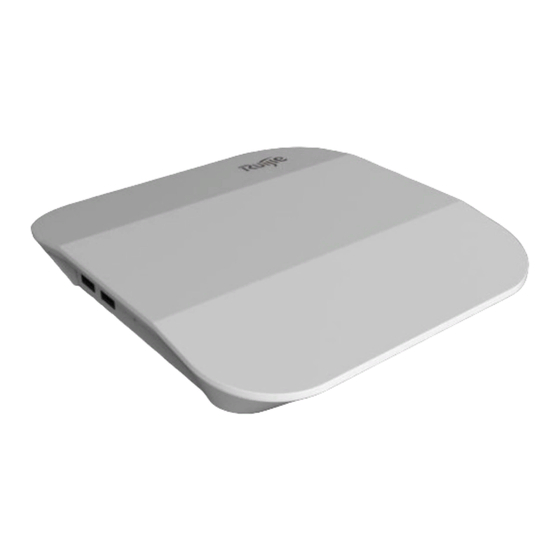

3 Product Introduction 3.1 Product Overview Ruijie RG-MTFi-M520 exclusively offers you an in-vehicle wireless system and entertainment hub - all in one easy-to-use platform. Onboard with simultaneous dual-SIM link aggregation, the RG-MTFi-M520 transforms 3G/4G to wireless connectivity with ease. The device implements the latestLTE solution supporting advanced communication systems such as TD-LTE, FDD-LTE, TD-SCDMA and WCDMA for streamlined LTE applications on the ride. -
Page 6: Quick Start
Temperature and humidity requirements for the device are met. The power supply is properly deployed and power requirements are met. There is sufficient space for installing the device. Install RG-MTFi-M520 to a mounting bracket. The following figure shows the installation procedure. -
Page 7: Installing The Host
Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start Insert the SIM card Install the anti-theft panel Install the antenna Install the power cable Install RG-MTFi-M520 in a specified position using a bracket Check RG-MTFi- M520 after power-on Verify the installation 4.1.1 Installing the Host Installation using a mounting bracket: Install the host in a specified position using the mounting bracket, and fasten the host using M5 screws and nuts, as shown in the following figure. -
Page 8: Installing The Antenna
For RG-MTFi-M520 with a single 3G/4G module, insert the SIM card into SIM Card-1 slot with adapter. For RG-MTFi-M520 with dual 3G/4G modules, insert the SIM cards into SIM Card-1 slot and SIM Card-2 slot with adapters. To prevent SIM card from missing, fasten the anti-theft panel to the front panel using four M3 hexagon socket-head screws after the SIM card is inserted. -
Page 9: Power-On And Begin To Use
Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start The following figure shows the power cable of RG-MTFi-M520 with two types of vehicle-mounted connector terminals. Select a connector terminal according to actual requirements, remove the stopple of the terminal, and properly connect the terminal to a matched terminal in the vehicle (VCC/yellow, ACC/red, and GND/black should be correspondingly connected). - Page 10 Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start Power off RG-MTFi-M520 before maintenance to avoid damage to the SIM card, the hard disk, and the radio frequency (RF) module. After RG-MTFi-M520 is powered on, if PWR is steady on green, it indicates that RG-MTFi-M520 runs properly.
-
Page 11: Configuration
Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start Figure 4-8 Dual 3G/4G Modules and Seven External Antennas For more detals about the device installation, please refer to RG-MTFI-M520 Installation Guide. 4.2 Configuration 4.2.1 Device Configuration After powering up the device, use default wired connection IP 192.168.1.1:8888 or default wireless connection IP 192.168.0.1:8888 to access the device configuration web page. - Page 12 Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start After login into the configuration website, you are able to check the device current operating status in the home page. Please check if the SIM cards are dialing up successfully. If the SIM cards keep dialing up failed, please check if the SIM card data service can work normally in a cell phone or if all the necessary antennas are connected properly with the device.
-
Page 13: Macc Configuration
Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start Besides the SIM APN configuration, you are also able to configure the network interfaces, wireless network etc. at Network section, configure speed limit per user, ACL, static routing etc. at Advanced section, and configure system time, password, upgrade etc. - Page 14 Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start 3. Create SSID for this group if needed, and click Save&Next. 4. Add bus assets, SIM card information, AP into this group if necessary, and click Save&Next. 4-12...
- Page 15 Ruijie RG-MTFI Implementation Cookbook (V1.0) Quick Start 5. Click Save&Next to finish the process. And follow the same steps as above to create sub-group. 6. Choose “Monitoring->Devices->Access PointsAdd” to add the device’s SN 7. The status will be “online” after you successfully adding the Device.
-
Page 16: Features
Ruijie RG-MTFI Implementation Cookbook (V1.0) Features 5 Features 5.1 Radio Setting Choose CONFIGURATION RF PLANING to set the MTFI’s Radio. 5-14... -
Page 17: Local Authentication
Ruijie RG-MTFI Implementation Cookbook (V1.0) Features 5.2 Local Authentication The Local Authentication function is enabled by default. After the STA connecting to the SSID, the following authentication page will pop up: Users need to click the “Click here to Free Internet access” button to get access to the Internet. -
Page 18: Web Url Blocking
Ruijie RG-MTFI Implementation Cookbook (V1.0) Features Correspondingly, we may use the command “client-auth-conf --auth-mode off” to turn it off. 5.3 Web URL Blocking 1. URL blocking will take effect only if the local authentication or social media authentication is enabled. -
Page 19: Rate Limit
Ruijie RG-MTFI Implementation Cookbook (V1.0) Features After adding the Blcaklist, users won’t be able to access the related websites. 5.4 Rate Limit The download speed rate of MTFI is limited at 50KBps by default, and the default upload speed rate is unlimited. -
Page 20: Date Threshold Alarm
Ruijie RG-MTFI Implementation Cookbook (V1.0) Features 5.5 Date Threshold Alarm We can set a Data Threshold for a SIM card. An alarm will be triggered when the data usage hit the threshold. 1. Add SIM cards on devices list and set data threshold (SIM info could be found on the homepage of... -
Page 21: Firmware Upgrade
Ruijie RG-MTFI Implementation Cookbook (V1.0) Maintaince 2. Enable the alarm setting 6 Maintaince 6.1 Firmware Upgrade 1. Choose “MAINTENANCE Upload Firmware” to upload the MTFi’s UPGRADE Firmware firmware to MACC 6-19... - Page 22 Ruijie RG-MTFI Implementation Cookbook (V1.0) Maintaince 2. Choose “MAINTENANCE UPGRADE Upgrade” and select a device to upgrade the firmware. 6.2 Local Content Update Some models of MTFi supports using USB flash to update local content. The USB flash should be formatted into FAT, NTFS or EXT file system.
- Page 23 Ruijie RG-MTFI Implementation Cookbook (V1.0) Maintaince 2. Create a file named ‘web.conf’ in the USB flash drive first partition root directory, input the local media resource file folder name in web.conf, which is ‘web’ in this example. 3. Save all files, input USB flash drive into MTFi, starts updating. The updating is finished after the system LED stop flashing quickly.
