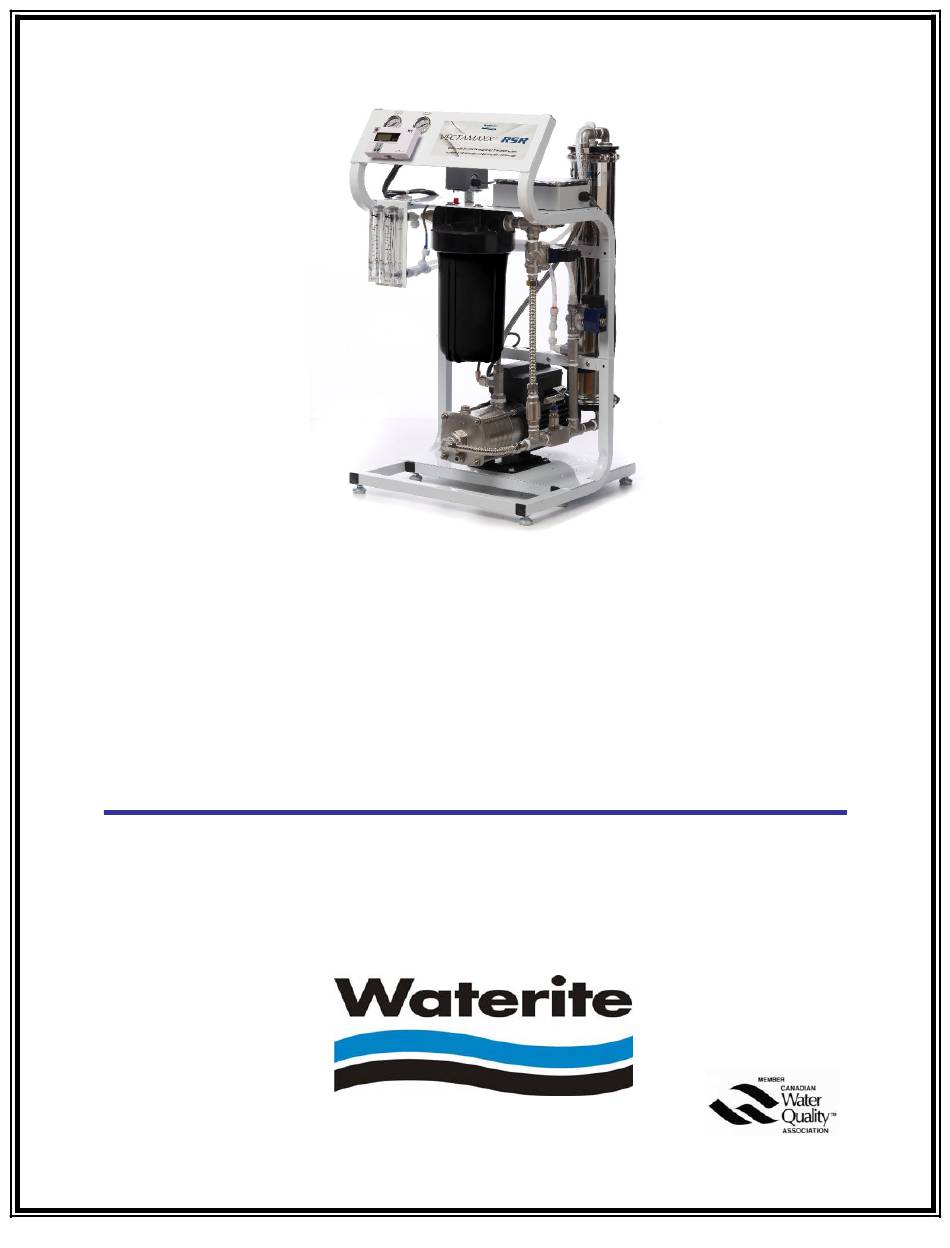

VECTAMAXX™ RSR
Advanced Reverse Osmosis System
OPERATOR'S MANUAL
FOR ALL VECTAMAXX™ RSR COMMERCIAL RO SYSTEMS
THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR REFERENCE
PURPOSES AND TECHNICAL GUIDANCE. IT IS STRONGLY RECOMMENDED THAT
QUALIFIED DEALER SERVICE PERSONNEL BE CONTACTED IN THE EVENT OF AN
UNKNOWN INTERRUPTION OF SERVICE OR APPARENT PRODUCT MALFUNCTION. AN
ANNUAL PREVENTATIVE MAINTENANCE INSPECTION BY A WATER PROFESSIONAL IS
RECOMMENDED TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION.
www.waterite.com
R8
Waterite, Inc. ■ Winnipeg, MB Canada

Advertisement

Table of Contents
loading

Related Manuals for Waterite VECTAMAXX RSR

Summary of Contents for Waterite VECTAMAXX RSR

  • Page 1 QUALIFIED DEALER SERVICE PERSONNEL BE CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR APPARENT PRODUCT MALFUNCTION. AN ANNUAL PREVENTATIVE MAINTENANCE INSPECTION BY A WATER PROFESSIONAL IS RECOMMENDED TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION. www.waterite.com Waterite, Inc. ■ Winnipeg, MB Canada...

  • Page 2: Section 1. Frequently Asked Questions

    Section 1. Frequently Asked Questions Before getting started, take the time to familiarize yourself with your new Waterite system by reading some FAQs listed below. Call us or ask your dealer if you have any other questions about your system’s operation.
  • Page 3 Please contact your dealer or Waterite for information on special application or nanofiltration membranes. 4. TDS: The higher the Total Dissolved Solids in the raw water, the lower the rate of output of product...

  • Page 4: Section 2. Designing Your Installation

    Q: How much water does the VectaMaxx™ RSR system produce? VectaMaxx™ RSR systems use membranes each nominally rated for 1200 or 2400GPD. Actual output will be dependent upon the factors explained above. In optimal applications (low feed water TDS, feed water =25°C, you may expect 700-1000 (RSR1200) and 1600-2100 (RSR 2400) USG from each membrane to be available over 24 hours.
  • Page 5 precipitate. Concentrations in excess of .05 ppm must be pre-treated with an iron remover (concentrations > 2 ppm) or combination softener (for iron concentrations < 2 ppm); otherwise premature membrane and system equipment failure through iron deposit fouling will result. Manganese: Manganese is a commonly occurring mineral found in ground water.
  • Page 6 corrosion on metallic parts or scaling internal components upstream from the membrane, and likely the membrane itself. Keep in mind that reverse osmosis lowers the pH of the feed water, by up to 1.0, depending on the water chemistry. This will be a consideration for the end use of product water and for the vessels and plumbing system that will be used to store and control it.
  • Page 7 Pre-Treatment Summary Chart Recommended Potential Waterite Pre-Treatment Solution Feed Water Range Effect Models Reduced production rate Contact Waterite/ Replace RSL HP < 2000 ppm Increased salt passage water source T. Hardness Scaling of membrane surface < 6 grains/gal Automatic Softener Fusion²...
  • Page 8 PROCEDURE ALSO APPLIES TO NEW RESIN BED INSTALLATIONS. COLOUR THROW FROM NEW RESIN BEDS MAY DAMAGE OR FOUL RO MEMBRANES. WATERITE DOES NOT RECOMMEND THE USE OF A GRANULAR CARBON CARTRIDGE IN THE PRE-TREATMENT FILTER HOUSINGS SUPPLIED, FOR THE PRIMARY REDUCTION OF CHLORINE.

  • Page 9: Section 3. Installation

    RO unit’s switchbox. Do not break the current at the pump motor, as this will cause the inlet solenoid to remain activated and open when the machine is shut down. Waterite offers an optional factory-installed permeate high pressure cut-off (Waterite P/N RSRPSO) for this application.
  • Page 10 Pressure Gauges RO Controller TDS monitor (optional) Low pressure switch Membrane housing Waste and permeate Inlet solenoid flow meters Pre-filter housing Auto flush solenoid (optional) Drain line flow control Drive pump (DLFC) Levelling feet Figure 1. A Note on Fittings Your RO system has been equipped with quality compression and push on fittings throughout.
  • Page 11 3. Plumb a connection from the COLD water supply line, ensuring that the feed line is at least 1/2” in diameter. Install a shut off valve on the connection, so that the RO system can by isolated from the main water supply. Note that the inlet connection to your RO system is 1/2”. We recommend that you also install a pipe union near the RO to allow easy disconnection should it be required for maintenance.
  • Page 12 3.5. Complete the Electrical Connection VectaMaxx RSR systems operate using a 120V 20A service and a grounded receptacle. Assure that the power source is rated to the necessary amperage (see page 8) and that the connection meets the local electrical code.

  • Page 13: Section 4: System Set-Up

    Section 4: System Set-Up Set-up of your RO system will be dependent upon the TDS of your feed water. Make sure that you specify the TDS of your feed water at the time the unit is ordered. The system has been shipped with a waste control orifice that will be intended for feed water of less than TDS of 1000.
  • Page 14 2. RO Controller Interface Standby/ON Switch Capacitive touch switch. Tank Full LED turns Red to confirm button contact. To use switch to switch states, hold for 1-2 seconds. DIP Switch Settings • RO Program Settings Switch 1 Switch 2 Program...
  • Page 15 3. RO Controller Programming The controller has 2 separate user-selectable sets of settings for configuring the RO. The factory default settings are shown below. The settings are identical except for variations in the flush behavior. Program 1, No Flush (Standard) Program 2, High Pressure Flush (Optional) See “DIP Switch Settings”...
  • Page 16 4.0 Once the pump is primed, connect the power plug to the electrical source. The system will start in the ON position. Let the system operate for about 5 minutes with the valve fully open. The system is now flushing and clearing any dust or debris from the lines. There should be little or no water production from the machine during this process.

  • Page 17: Section 5: System Maintenance

    To change the cartridge, turn off the system’s power and as a safety precaution, close the water supply to the unit. Repeat Step 7 (1) from the installation instructions above. Thoroughly flush and clean the filter housings while they are disassembled. Always use Waterite factory cartridges as replacements.
  • Page 18 It is the purchaser’s responsibility to immediately notify Waterite in the event that defects are detected. Seller shall not be liable for any special, incidental or consequential damages and will at its option repair or replace any defective components.

  • Page 19: Section 6: Trouble Shooting Guide

    Section 6: Trouble Shooting Guide Problem Possible Cause Solution Low or Declining Water supply valve closed. Open valve. Permeate Production Crimped poly product line Repair or replace tube Raw water TDS too high Consult dealer – may need pre-treatment. Membranes fouled. Clean or replace membrane.

  • Page 20: Section 7: Common Replacement Parts

    Section 7: Common Replacement Parts Part Description Part Number Excelpure 10” BB 5 Micron PP Spun Cartridge PP10B05 Excelpure 10” BB 1 Micron PP Spun Cartridge PP10B01 1/2” Inlet Solenoid ROSD110 Low Pressure Cut-off Switch FRG22 1½” Pressure Gauge, 0-200 psi AG06 Pre-filter Housing Wrench HAN13W...

  • Page 21: Section 9: Vectamaxx Rsr Performance Log

    Section 9: VectaMaxx RSR Performance Log Date Line System Permeate Feed Water Pre-Filter Fast Permeate Waste Pressure Pressure Change Flush Flow Meter Flow Meter...
  • Page 22 Date Line System Permeate Feed Water Pre-Filter Fast Permeate Waste Pressure Pressure Change Flush Flow Meter Flow Meter...
  • Page 23 VECTAMAXX™ RSR Electrical Wiring Schematic 120VAC 60Hz All Models 15A. 230VAC 60Hz All Models 8A.
  • Page 24 WATERITE, INC. Winnipeg, Manitoba Canada Ph. 204.786.1604 Fax: 204.7863.1599 waterite@waterite.com www.waterite.com VectaMaxx RSL Feed Water Quality Owner: Contact: Installation Date: Serial # Dealer: Model # CATIONS ANIONS Barium Bromide Calcium Chloride Iron Fluoride Potassium Bicarbonate Magnesium Sulphate Manganese Nitrate Sodium...
  • Page 25 THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY REGISTER YOUR PRODUCT ONLINE AT WATERITE.COM OR FILL OUT THE INCLUDED PRE-PAID, SELF ADDRESSED POSTCARD.
  • Page 26 THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY REGISTER YOUR PRODUCT ONLINE AT WATERITE.COM OR FILL OUT THE INCLUDED PRE-PAID, SELF ADDRESSED POSTCARD.
  • Page 27 THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY REGISTER YOUR PRODUCT ONLINE AT WATERITE.COM OR FILL OUT THE INCLUDED PRE-PAID, SELF ADDRESSED POSTCARD.
  • Page 28 Waterite, Inc. Winnipeg, Manitoba www.waterite.com...
