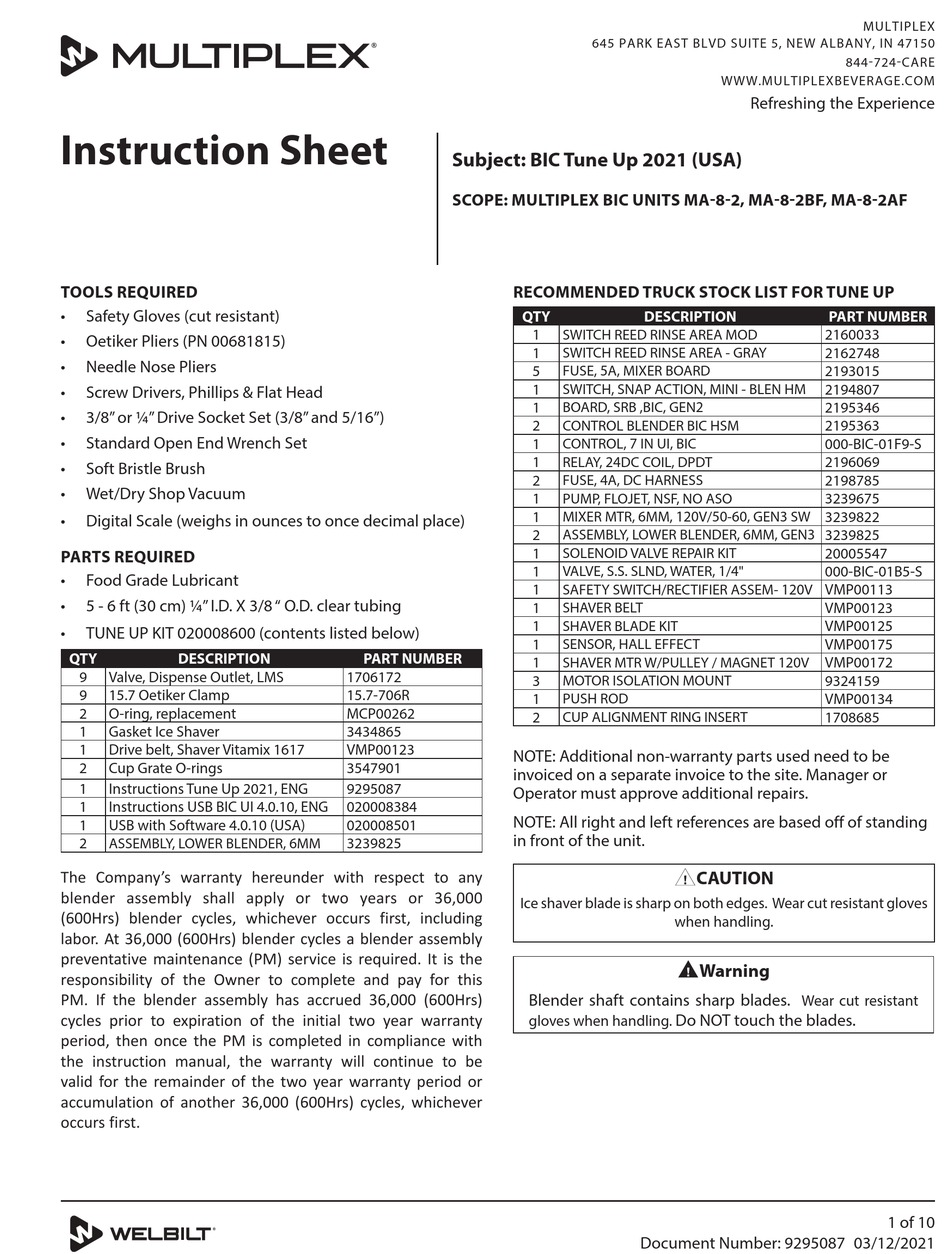

Welbilt Multiplex BIC MA-8-2 Instruction Sheet

Instruction Sheet
TOOLS REQUIRED
• Safety Gloves (cut resistant)
• Oetiker Pliers (PN 00681815)
• Needle Nose Pliers
• Screw Drivers, Phillips & Flat Head
• 3/8" or ¼" Drive Socket Set (3/8" and 5/16")
• Standard Open End Wrench Set
• Soft Bristle Brush
• Wet/Dry Shop Vacuum
• Digital Scale (weighs in ounces to once decimal place)
PARTS REQUIRED
• Food Grade Lubricant
• 5 - 6 ft (30 cm) ¼" I.D. X 3/8 " O.D. clear tubing
• TUNE UP KIT 020008600 (contents listed below)
QTY DESCRIPTION
9 Valve, Dispense Outlet, LMS
9 15.7 Oetiker Clamp
2 O-ring, replacement
1 Gasket Ice Shaver
1 Drive belt, Shaver Vitamix 1617
2 Cup Grate O-rings
1 Instructions Tune Up 2021, ENG
1 Instructions USB BIC UI 4.0.10, ENG
1 USB with Software 4.0.10 (USA)
2 ASSEMBLY, LOWER BLENDER, 6MM
The Company's warranty hereunder with respect to any
blender assembly shall apply or two years or 36,000
(600Hrs) blender cycles, whichever occurs first, including
labor. At 36,000 (600Hrs) blender cycles a blender assembly
preventative maintenance (PM) service is required. It is the
responsibility of the Owner to complete and pay for this
PM. If the blender assembly has accrued 36,000 (600Hrs)
cycles prior to expiration of the initial two year warranty
period, then once the PM is completed in compliance with
the instruction manual, the warranty will continue to be
valid for the remainder of the two year warranty period or
accumulation of another 36,000 (600Hrs) cycles, whichever
occurs first.
Subject: BIC Tune Up 2021 (USA)
SCOPE: MULTIPLEX BIC UNITS MA-8-2, MA-8-2BF, MA-8-2AF
RECOMMENDED TRUCK STOCK LIST FOR TUNE UP
QTY
PART NUMBER
1706172
15.7-706R
MCP00262
3434865
VMP00123
NOTE: Additional non-warranty parts used need to be
3547901
invoiced on a separate invoice to the site. Manager or
9295087
Operator must approve additional repairs.
020008384
NOTE: All right and left references are based off of standing
020008501
in front of the unit.
3239825
Ice shaver blade is sharp on both edges. Wear cut resistant gloves
645 PARK EAST BLVD SUITE 5, NEW ALBANY, IN 47150
DESCRIPTION
1 SWITCH REED RINSE AREA MOD
1 SWITCH REED RINSE AREA - GRAY
5 FUSE, 5A, MIXER BOARD
1 SWITCH, SNAP ACTION, MINI - BLEN HM
1 BOARD, SRB ,BIC, GEN2
2 CONTROL BLENDER BIC HSM
1 CONTROL, 7 IN UI, BIC
1 RELAY, 24DC COIL, DPDT
2 FUSE, 4A, DC HARNESS
1 PUMP, FLOJET, NSF, NO ASO
1 MIXER MTR, 6MM, 120V/50-60, GEN3 SW 3239822
2 ASSEMBLY, LOWER BLENDER, 6MM, GEN3 3239825
1 SOLENOID VALVE REPAIR KIT
1 VALVE, S.S. SLND, WATER, 1/4"
1 SAFETY SWITCH/RECTIFIER ASSEM- 120V VMP00113
1
SHAVER BELT
1 SHAVER BLADE KIT
1 SENSOR, HALL EFFECT
1 SHAVER MTR W/PULLEY / MAGNET 120V
3 MOTOR ISOLATION MOUNT
1 PUSH ROD
2 CUP ALIGNMENT RING INSERT
CAUTION
,
when handling.
Warning
n
Blender shaft contains sharp blades.
Do NOT touch the blades.
gloves when handling.
Document Number: 9295087 03/12/2021
MULTIPLEX
844-724-CARE
WWW.MULTIPLEXBEVERAGE.COM
Refreshing the Experience
PART NUMBER
2160033
2162748
2193015
2194807
2195346
2195363
000-BIC-01F9-S
2196069
2198785
3239675
20005547
000-BIC-01B5-S
VMP00123
VMP00125
VMP00175
VMP00172
9324159
VMP00134
1708685
Wear cut resistant
1 of 10
