Cast Iron Radiator with footed end sections
Please read these instructions and terms and conditions carefully prior to installation.
Failure to do so may invalidate the warranty.

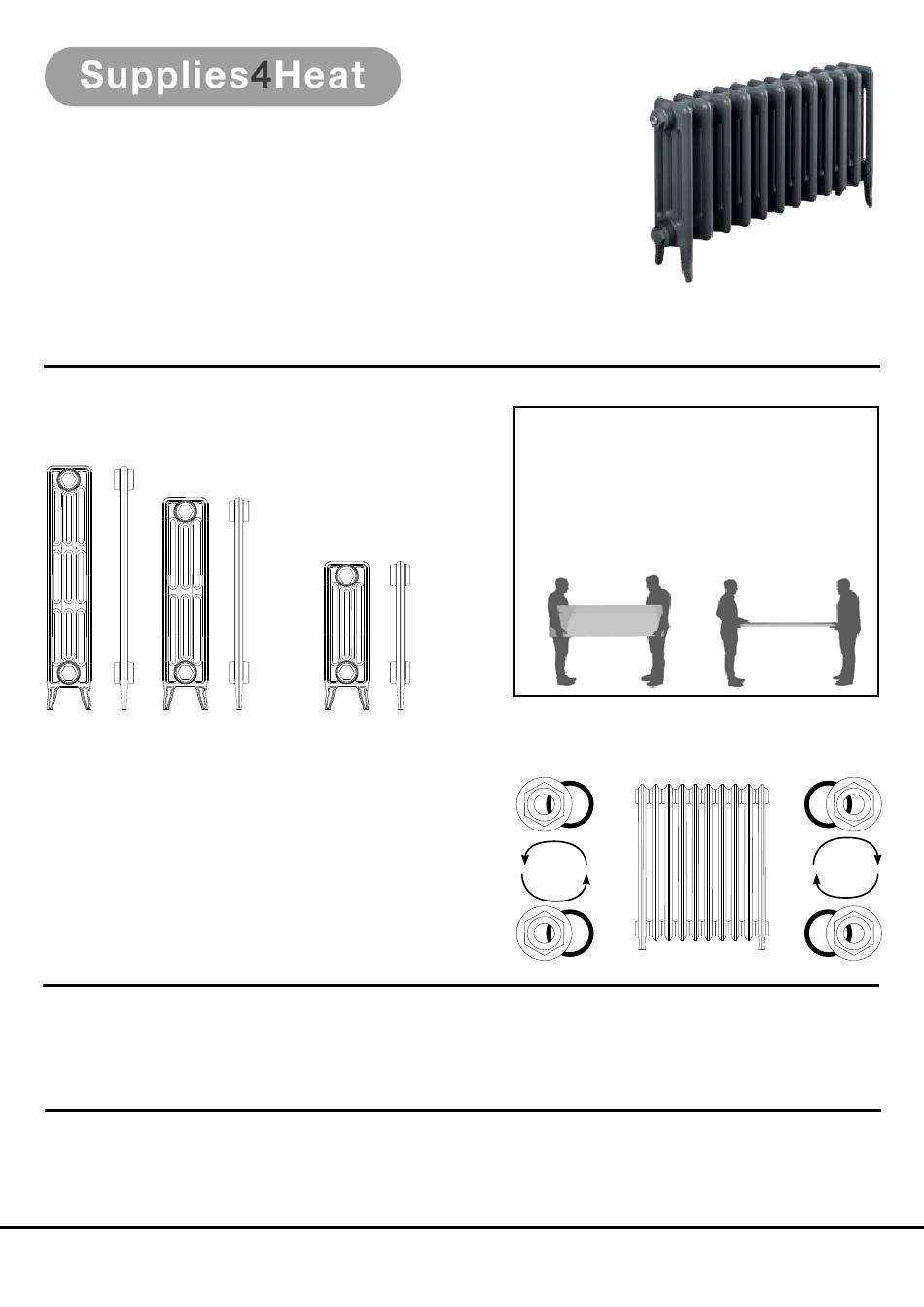

Drawings
750 High
142mm
650 High
142mm
Sections = 61mm wide
Bush Configurations
The Sherwood has specific left and right hand threaded bushes and these can
be easily damaged if forced or incorrectly fitted (this will inevitably cause leaks).
Bushes require a dry fit connection only; you must not use any Compound
materials (e.g. Jet Blue) or Plumbers Hemp. PTFE tape may be required
depending on the valve tail type (not suitable with BELSAY TRV's), if you
choose you may use up to 4 turns of PTFE tape to help seal the threads (the
tape should be applied in the direction of the thread and no more than this
amount should be used as this may cause leaks to occur).
Pipe Centres
Pipe centres left to right =
1. Unpack & Inspect
This product should have reached you in perfect condition. Please carefully unpack and inspect this radiator and all fittings. Your point of purchase
must be notified of any shortages or damage within 28 days of delivery. For further information please see terms and conditions on reverse
www.supplies4heat.co.uk
SHER_IR_1.0
455 High
142mm
Sections = 60.5mm wide
width of radiator plus valves
CAUTION HEAVY
This radiator is very heavy, and we advise that the radiator is
lifted by two people.
This radiator needs to be carried in an upright position.
Carrying the radiator in a horizontal position may cause
cracks and permanent damage to the radiator which will
invalidate the warranty. ✓
L
Tighten 'L'
Anti Cloclwise
L
Pipe centres from skirting board = 72mm
01342 306880
X
R
Tighten 'R'
Cloclwise
R
.
