Use and Configuration Manual
41002 - 41005
Due Fili Plus audio, audio/video units

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 41002 and is the answer not in the manual?

Questions and answers

Related Manuals for Vimar 41002

Summary of Contents for Vimar 41002

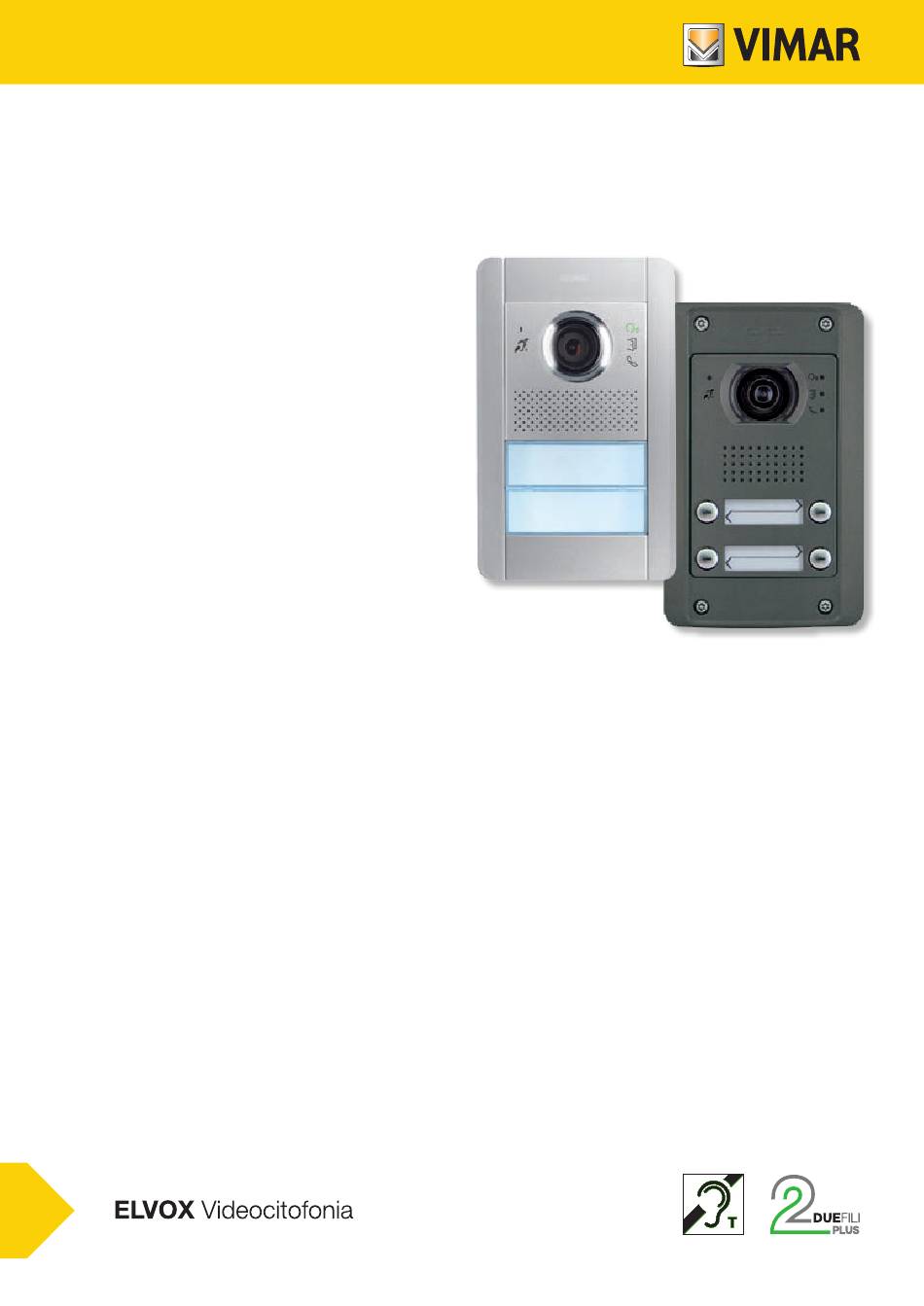

  • Page 1 Use and Configuration Manual 41002 - 41005 Due Fili Plus audio, audio/video units...
  • Page 2 41002 - 41005...
  • Page 3 Set talk time Setting the audio level Reset factory settings/Restart/Reset internal memory Reset factory settings Restart entire system External memory reset Setting push button behaviour according to the call button Camera enabling (only 41002) Common locks Advanced configuration with SaveProg software...

  • Page 4: General Information

    41002 - 41005 General information Description Audio electronic unit with input for CCTV type external camera (41002) and audio/video electronic unit, wide-angle teleloop (41005) for Pixel Series, Outdoor Stations, for use in systems with Due Fili Plus technology. Both are equipped with: •...

  • Page 5: Warnings And Advice

    41002 - 41005 2,6 m (104°) (41005) 2,6 m (104°) (41005) 1.8 m (83°) 1.8 m (41005) (83°) (41005) 1,20 m 1,65m 1,20 m 1,65m Warnings and advice Audio frequency function for hearing aids (Teleloop) The electronic unit can be used by people wearing hearing aids.
  • Page 6 41002 - 41005 Keys and status LEDs The TAB 7559 video entryphone can be operated using the touch keys described below. LED for light signals, see Status LEDs Mini USB connector for configuration via PC and specific software Call buttons and Configuration...

  • Page 7: Status Leds

    41002 - 41005 Status LEDs Some of the LEDs illustrated below only come on in certain conditions. DESCRIPTION When on, communication is active, when flashing the call is under way When on, it signals the Bus is busy, when flashing communication was unsuccessful...

  • Page 8: Operation

    Operation N.B.: from this paragraph onwards, only the audio/video electronic unit 41005 will be illustrated; however, the functions described also apply for the Audio electronic unit 41002, except where specified. Calls to Indoor Stations the audio/video electronic unit 41005 can manage up to 4 calls to Indoor Stations, using four traditional push buttons in two rows (2+2) and, in combination with additional push button modules 41010 (41011), up to a maximum of 84 button calls.
  • Page 9 41002 - 41005 Functions Pan/Zoom function (only for 41005) This function of the Electronic Unit allows an Indoor Station with specific characteristics to zoom the image recorded by the camera. Please refer to for configuration details. SaveProg Example of the pan/zoom function with Indoor Station Tab7549...

  • Page 10: Picture Control

    Can be selected with SaveProg. Teleloop and control voice synthesis function Electronic units 41002 and 41005 are ideal for people who are physically challenged, wear a hearing aid or are partially sighted. Enable the hearing aid, referring to its instruction manual.
  • Page 11 When combined with display module 41018, certain parameters can be configured using the programming menu on the same, in the Outdoor Station section. N.B.: If modules 41002 and 41005 are connected to a display 41018, configuration using the 4 push buttons is not enabled.

  • Page 12: Installer Menu

    41002 - 41005 Installer menu To select the items to configure, browse the menu using only the 4 basic push buttons, whereas the position inside the menu is provided by the number and position of the LEDs that are on.
  • Page 13 41002 - 41005 LEDs and menu structure Automatic Automatic Selecting order Push button procedure for procedure for of push button Lock time remapping assigning IDs to assigning IDs to modules Indoor Stations Outdoor Stations ID assignment for non secondary Outdoor...
  • Page 14 This procedure allows you to assign the order of the additional push button modules connected to the Electronic unit. The order of the modules determines the numbering of the push buttons, the 4 push buttons of the electronic unit (41002-41005) are automatically put in first place. Press to choose how to...
  • Page 15 41002 - 41005 MODULE 1 MODULE 2 MODULE 1 MODULE 2 MODULE 3 MODULE 4 MODULE 5 MODULE 3 MODULE 4 MODULE 5 When the position of a module has been The push button at the top left of the first...
  • Page 16 41002 - 41005 Push button remapping By default each push button of the Outdoor Station calls an Indoor Station according to its sequential position. This correspondence can be modified using this procedure Press to select the function Press to change the...
  • Page 17 41002 - 41005 Automatic procedure for assigning IDs to Indoor Stations This procedure allows the automatic routing of Indoor Station IDs. N.B.: the Electronic unit from which this configuration is performed, if vertical, must be Master. Whereas if it is horizontal, it must function as Master via appropriate programming of one or more routers Art. 69RS.
  • Page 18 41002 - 41005 Automatic procedure for assigning IDs to Outdoor Stations This procedure allows the automatic routing of Outdoor Station IDs (only Outdoor Stations that support automatic ID assigning). Press repeatedly, until the Press to confirm LEDs light up as in the previous section, to select the function.
  • Page 19 41002 - 41005 Set lock time In this section, you can set the lock activation time. The settable values by the Electronic unit are 1 second (default) or 5 seconds. Other values can be set (from 0/disabled to 254 seconds) using SaveProg.

  • Page 20: Set Talk Time

    41002 - 41005 Set talk time In this section, you can set the talk time. The settable values by the Electronic unit are 2 minutes (default) or 5 minutes. Other values can be set (from 10 a 2540 seconds) using SaveProg.

  • Page 21: Setting The Audio Level

    41002 - 41005 Setting the audio level In this section, you can set one of the 4 audio levels. Press repeatedly, until the Press to view the setting LEDs light up as in the status and if necessary previous section, to select amend it the function.
  • Page 22 41002 - 41005 Reset factory settings/Restart/Reset internal memory In this section you can Reset the Electronic unit to its factory settings, restart the entire system reset the internal memory Press repeatedly, until the Press to confirm LEDs light up as in the previous section, to select the function.

  • Page 23: Reset Factory Settings

    41002 - 41005 Reset factory settings This procedure resets all the settings of the Electronic unit to the factory values. beep 8 seconds Press to start the procedure The Electronic unit emits a continuous tone for 8 seconds, press the push button 3 times before...
  • Page 24 41002 - 41005 Restart entire system Using this procedure, the Electronic unit sends a restart command to all the devices in the system in which it is installed, then it restarts itself too. It is the functional equivalent to pressing the reset push button on previous generation Master Outdoor Stations.
  • Page 25 41002 - 41005 Setting push button behaviour according to the call button In this section, you can define the behaviour of the Electronic unit push buttons according to the type of button installed. Another 3 modes are possible: • 2 push buttons side-by-side are used to call 1 Indoor Station (default) using a single axial button 41110: •...
  • Page 26 41002 - 41005 The lit LED indicates the current setting Setting for single rocker Setting for single axial Setting for double axial button 41111 button 41110 (default) button 41112 Press to select the Press to select the next previous option...
  • Page 27 41002 - 41005 Camera enabling (only 41002) In this section, you can enable/disable the additional camera connected to module 41002 Press repeatedly, until the Press to confirm LEDs light up as in the previous section, to select the function. The lit LED indicates the current setting...
  • Page 28 41002 - 41005 Common locks In this section, you can configure the release of the lock (from a secondary outdoor station) in common with one or more main outdoor stations. N.B.: The function is available from firmware version 1.81 (also after update).
  • Page 29 41002 - 41005 beep < 3m During configuration, the Press to start the common Press the lock button on any push button LEDs flash lock assignment procedure indoor station called previously. beep The saving of the main external unit on the secondary one, i.e. the...
  • Page 30 41002 - 41005 Advanced configuration with SaveProg software Using SaveProg, you can configure the electronic unit in an advanced manner. SaveProg is PC software designed for advanced configuration of Due Fili Plus Systems.
  • Page 31 41002 - 41005...
  • Page 32 Viale Vicenza 14 36063 Marostica VI - Italy 494041265C0_MU_EN 01 2106 www.vimar.com...
