The means of the fields are:
If the field "Enable" is checked, the
Modbus request is enabled;
In the field "Slave IP Address" the IP
address of the Modbus TCP device to
read is defined;
In the field "Port" the TCP port used
for the communication is defined;
In the field "Slave ID" the address of
the Modbus device that you have to
write is defined;
In the field "Type" the data type of the register to write is defined. It is possible to choose between the following:
Coil Status;
o
Holding Register.
o
In the field "Address" the start address of the register to be written is defined;
In the field "NPoint" the number of consecutive registers to be written is defined;
In the field "Poll Time" the delay time to make the request is defined;
If the field "On Change" is checked, the converter sends the writing request when the data from LoRaWAN side change value;
If the field "On CMD" is checked, the converter sends the writing request when the data from LoRaWAN is received;
In the field "Max Error" the number of consecutive errors that the converter waits before suspending the request is defined;
In the field "Position" the address of the internal array where taking the information is defined;
In the field "Start Bit" the starting bit of the first byte of the field "Position" is defined;
If the field "Swap" is checked, the data written the Modbus registers are swapped;
If the field "Swap Word" is checked, the Modbus words are swapped;
In the field "Mnemonic" the description for the request is defined.
ADFweb.com S.r.l.
User Manual LoRaWAN / Modbus TCP Master
Document code: MN67D03_ENG Revision 1.000

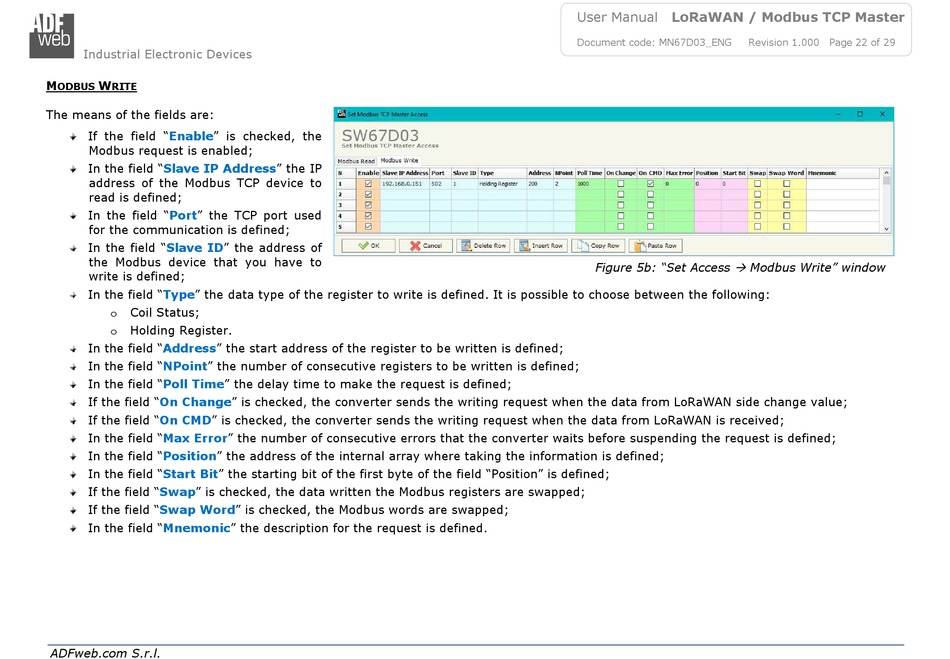

Figure 5b: "Set Access  Modbus Write" window
