MVP Patriot PAT-CCP-LS-0590 Component Manual

Chop check fluid section
Hide thumbs

Advertisement

Quick Links

Download this manual

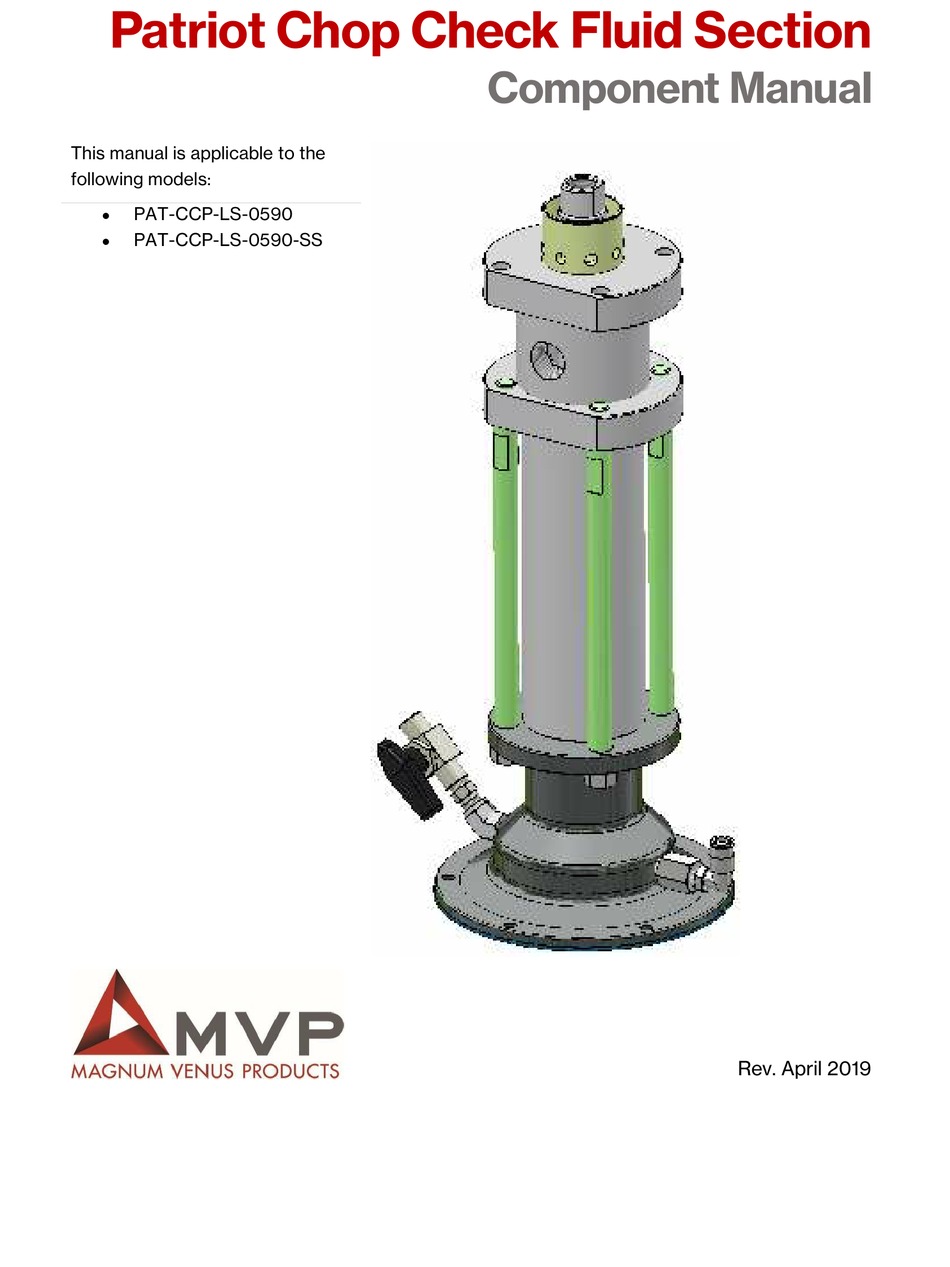

Patriot Chop Check Fluid Section
This manual is applicable to the
following models:
PAT-CCP-LS-0590
PAT-CCP-LS-0590-SS
Component Manual
Rev. April 2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the Patriot PAT-CCP-LS-0590 and is the answer not in the manual?

Questions and answers

Related Manuals for MVP Patriot PAT-CCP-LS-0590

Summary of Contents for MVP Patriot PAT-CCP-LS-0590

  • Page 1 Patriot Chop Check Fluid Section Component Manual This manual is applicable to the following models:  PAT-CCP-LS-0590  PAT-CCP-LS-0590-SS Rev. April 2019...
  • Page 2 1862 Ives Ave, Kent, WA 98032 · USA · Tel (253) 854-2660 · Fax (253) 854-1666 E-mail: info@mvpind.com For a list of international distributors, visit our website at : www.mvpind.com/mvp-international Use of this product confirms that Magnum Venus Products, Inc.’s standard terms and conditions of sale apply. Page | 2...

  • Page 3: Table Of Contents

    Patriot Chop Check Fluid Section Manual Table of Contents Section Page  Table of Contents  Safety & Warning Information  Introduction  Removing Fluid Section  Disassembling Fluid Section  Reassembling Fluid Section  Specifications  Parts Drawings Page | 3...

  • Page 4: Safety & Warning Information

    MVP assumes no responsibility for loss, damage, expense or claims for bodily injury or property damage, direct or consequential, arising from the use of such chemical components.
  • Page 5 Patriot Chop Check Fluid Section Manual Safety Precautions  Avoid skin contact and inhalation of all chemicals.  Review Material Safety Data Sheet (MSDS) to promote the safe handling of chemicals in use.  Restrict the use of all chemicals to designated areas with good ventilation. ...
  • Page 6 An improperly loaded drum may lead to an imbalance, causing a unit to tip over Personal Protective Equipment (PPE)  MVP recommends the use of personal safety equipment with all products in our catalog.  Wear safety goggles, hearing protection, a respirator, and chemical resistant gloves.
  • Page 7 Patriot Chop Check Fluid Section Manual Symbol Definitions Indicates the risk of Indicates the risk of contact with chemicals contact with voltage / that are hazardous, which amperage that may lead may lead to injury or to serious injury or death death.
  • Page 8 Patriot Chop Check Fluid Section Manual Polymer Matrix Materials: Advanced Composites Potential health hazards associated with the use of advanced composites can be controlled through the implementation of an effective industrial hygiene and safety program. https://www.osha.gov/dts/osta/otm/otm_iii/otm_iii_1.html#t iii:1_1 Resins Composite Component Organ System Target Known (Possible) Health Effect (Possible Target)
  • Page 9 Patriot Chop Check Fluid Section Manual Catalyst - Methyl Ethyl Ketone Peroxide (MEKP) MEKP is among the more hazardous materials found in commercial channels. The safe handling of the “unstable (reactive)” chemicals presents a definite challenge to the plastics industry. The highly reactive property which makes MEKP valuable to the plastics industry in producing the curing reaction of polyester resins also produces the hazards which require great care and caution in its storage, transportation, handling, processing and disposal.
  • Page 10 Patriot Chop Check Fluid Section Manual  Never add MEKP to anything that is hot, since explosive decomposition may result.  Avoid contact with skin, eyes, and clothing. Protective equipment should be worn at all times. During clean-up of spilled MEKP, personal safety equipment, gloves, and eye protection must be worn.
  • Page 11 Patriot Chop Check Fluid Section Manual  The reaction is unpredictable. Prior use of an HHC solvent without incident (corrosion or explosion) does NOT mean that such use is safe. These solvents can be dangerous alone (as a clean-up or flushing agent) or when used as a component or a coating material. There is no known inhibitor that is effective under all circumstances.
  • Page 12 Patriot Chop Check Fluid Section Manual Catalyst Diluents Magnum Venus Products spray-up and gel-coat systems currently produced are designed so that catalyst diluents are not required. Magnum Venus Products therefore recommends that diluents not be used to avoid possible contamination which could lead to an explosion due to the handling and mixing of MEKP and diluents.
  • Page 13 Patriot Chop Check Fluid Section Manual Toxicity of Chemicals  Magnum Venus Products recommends that you consult OSHA Sections 1910.94, 1910.106, 1910.107 and NFPA No.33, Chapter 14, and NFPA No.91.  Contact your chemical supplier(s) and determine the toxicity of the various chemicals used as well as the best methods to prevent injury, irritation and danger to personnel.
  • Page 14 Patriot Chop Check Fluid Section Manual Precautions include: 1. Know precisely what chemicals you are using and obtain information from your chemical supplier on what to do in the event the chemical gets onto your skin or into the eyes, or if swallowed.

  • Page 15: Introduction

    7-7 titled “Spray Application of Flammable and Combustible Materials”. Introduction This manual provides information for the operation, maintenance, and simple repair of the MVP Patriot Chop Check Fluid Section. The following procedures are included:  Step-by-step assembly and disassembly Please read this manual carefully and retain for future reference.
  • Page 16 Throughout this manual, directions are given for lubricating various parts of the fluid section. These are the lubricants used:  If the part contacts resin, use MVP Red Grease  If the part is located where it will contact air, use Lubriplate®...

  • Page 17: Removing Fluid Section

    Patriot Chop Check Fluid Section Manual system. Contact your catalyst manufacturer for additional material handling information. Removing Fluid Section 1. Remove the ram and pump from the material. 2. Place a piece of plastic or paper under the ram and pump to catch any dripping material. 3.

  • Page 18: Reassembling Fluid Section

    Patriot Chop Check Fluid Section Manual 9. Remove the loose intake valve, spacer, and valve stop out of the end of the cylinder. 10. Remove the piston bushing and piston seal assembly out of the other end of the cylinder. 11.
  • Page 19 Patriot Chop Check Fluid Section Manual Assemble Pump 7. Apply a light coat of the appropriate grease to the rod seal assemblies and install them into the top of the outlet body with the open side (side with O-ring) down. 8.
  • Page 20 Patriot Chop Check Fluid Section Manual 14. Install the cylinder into the outlet body. 15. Apply a light coat of the appropriate grease onto the fluid rod assembly and carefully push into the cylinder, piston seal, and rod seal assemblies from the bottom and then up through the packing nut.

  • Page 21: Specifications

    Patriot Chop Check Fluid Section Manual 19. Install the intake bushing into the valve nut. 20. Thread the valve nut into the intake valve. 21. Apply a light coat of the appropriate grease to the priming rod and then slide the intake valve assembly into the priming rod, twisting as needed.

  • Page 22: Parts Drawings

    Patriot Chop Check Fluid Section Manual Pump Assemblies Part Number Description Components PAT-CCP-PA-1300 13:1 Pump Assembly PAT-PH-3250 & PAT-CCP-LS-0590 PAT-CCP-PA-2300 23:1 Pump Assembly PAT-PH-4250 & PAT-CCP-LS-0590 PAT-CCP-PA-2300-55S 23:1 Pump Assembly PAT-PH-4250 & PAT-CCP-LS-0590-SS PAT-CCP-PA-1300-SS 13:1 Pump Assembly PAT-PH-3250 & PAT-CCP-LS-0590-SS Pump Displacement Information Fluid Section Stroke Length...
  • Page 23 Patriot Chop Check Fluid Section Manual Page | 23...
  • Page 24 Patriot Chop Check Fluid Section Manual Page | 24...
  • Page 25 Patriot Chop Check Fluid Section Manual Page | 25...
  • Page 26 Patriot Chop Check Fluid Section Manual Page | 26...
  • Page 27 Patriot Chop Check Fluid Section Manual Page | 27...
  • Page 28 Patriot Chop Check Fluid Section Manual Page | 28...
  • Page 29 Patriot Chop Check Fluid Section Manual Page | 29...
  • Page 30 Patriot Chop Check Fluid Section Manual Page | 30...
  • Page 31 Patriot Chop Check Fluid Section Manual Page | 31...
  • Page 32 Patriot Chop Check Fluid Section Manual Page | 32...
  • Page 33 Patriot Chop Check Fluid Section Manual Page | 33...
  • Page 34 Patriot Chop Check Fluid Section Manual Page | 34...
  • Page 35 Patriot Chop Check Fluid Section Manual Page | 35...
  • Page 36 642 Barbrow Ln, Knoxville, TN 37932 · USA · Tel: (865) 684-4416 ECHNOLOGY ENTER AND ANUFACTURING 1862 Ives Ave, Kent, WA 98032 · USA · Tel (253) 854-2660 · Fax (253) 854-1666 E-mail: info@mvpind.com For a list of international distributors, visit our website at : www.mvpind.com/mvp-international Page | 36...

This manual is also suitable for:

Patriot pat-ccp-ls-0590-ss
