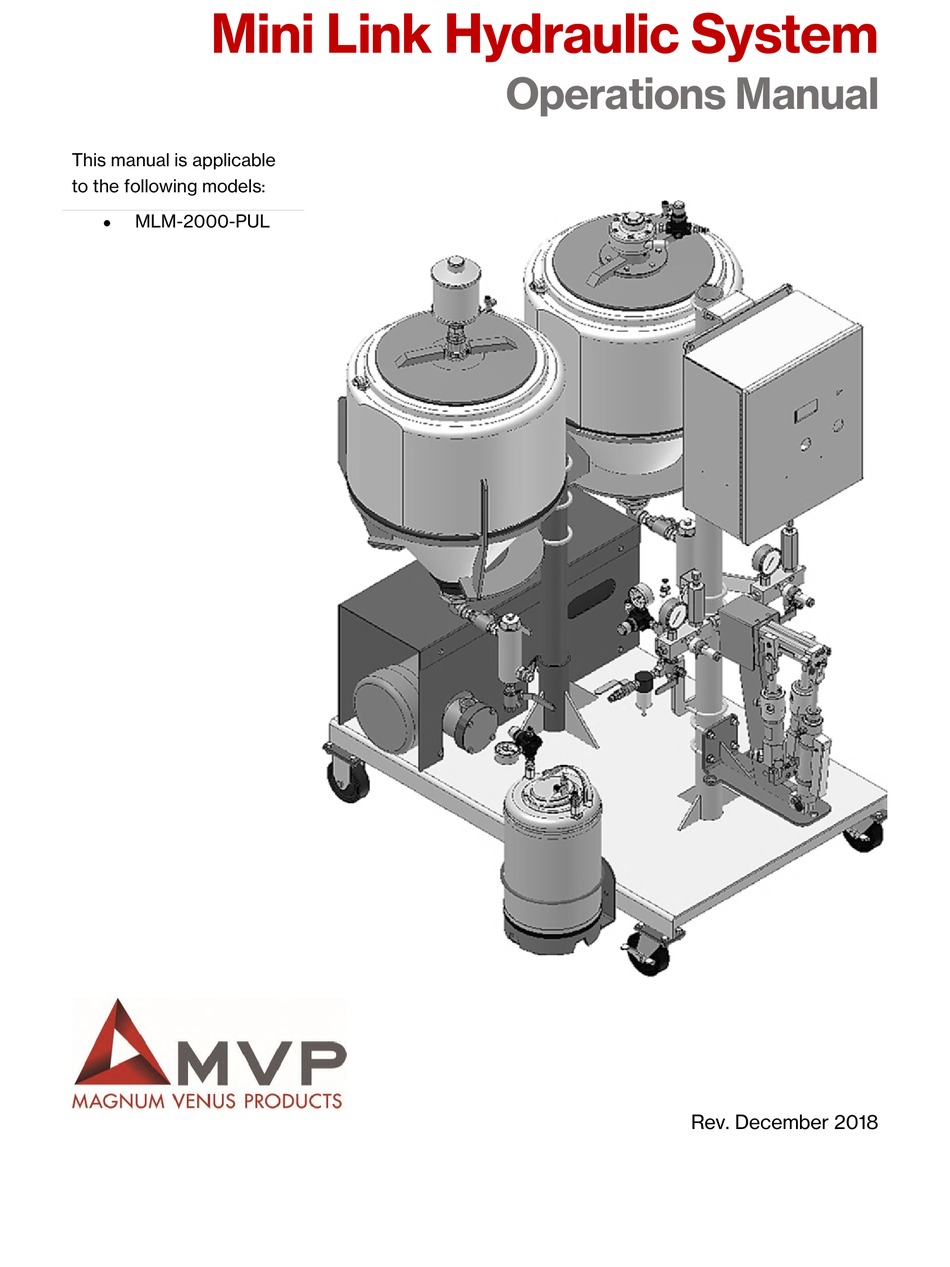

Mini Link Hydraulic System
Operations Manual
This manual is applicable
to the following models:
MLM-2000-PUL
Rev. December 2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the MLM-2000-PUL and is the answer not in the manual?

Questions and answers

Summary of Contents for MVP MLM-2000-PUL

  • Page 1 Mini Link Hydraulic System Operations Manual This manual is applicable to the following models:  MLM-2000-PUL Rev. December 2018...
  • Page 2 1862 Ives Ave, Kent, WA 98032 · USA · Tel (253) 854-2660 · Fax (253) 854-1666 E-mail: info@mvpind.com For a list of international distributors, visit our website at : www.mvpind.com/mvp-international Use of this product confirms that Magnum Venus Products, Inc.’s standard terms and conditions of sale apply. Page | 2...
  • Page 3: Table Of Contents

    Mini Link Hydraulic System Operations Manual Table of Contents Section Page  Table of Contents  Safety & Warning Information  Introduction  Setting Up the Unit  Setting Pump Ratio  Performing Daily Tasks  Setting Pump Sensors Page | 3...
  • Page 4: Safety & Warning Information

    MVP assumes no responsibility for loss, damage, expense or claims for bodily injury or property damage, direct or consequential, arising from the use of such chemical components.
  • Page 5 Mini Link Hydraulic System Operations Manual Safety Precautions  Avoid skin contact and inhalation of all chemicals.  Review Material Safety Data Sheet (MSDS) to promote the safe handling of chemicals in use.  Restrict the use of all chemicals to designated areas with good ventilation. ...
  • Page 6 An improperly loaded drum may lead to an imbalance, causing a unit to tip over Personal Protective Equipment (PPE)  MVP recommends the use of personal safety equipment with all products in our catalog.  Wear safety goggles, hearing protection, a respirator, and chemical resistant gloves.
  • Page 7 Mini Link Hydraulic System Operations Manual Symbol Definitions Indicates the risk of Indicates the risk of contact with chemicals contact with voltage / that are hazardous, which amperage that may lead may lead to injury or to serious injury or death death.
  • Page 8 Mini Link Hydraulic System Operations Manual Polymer Matrix Materials: Advanced Composites Potential health hazards associated with the use of advanced composites can be controlled through the implementation of an effective industrial hygiene and safety program. https://www.osha.gov/dts/osta/otm/otm_iii/otm_iii_1.html#t iii:1_1 Resins Composite Component Organ System Target Known (Possible) Health Effect (Possible Target)
  • Page 9 Mini Link Hydraulic System Operations Manual Catalyst - Methyl Ethyl Ketone Peroxide (MEKP) MEKP is among the more hazardous materials found in commercial channels. The safe handling of the “unstable (reactive)” chemicals presents a definite challenge to the plastics industry. The highly reactive property which makes MEKP valuable to the plastics industry in producing the curing reaction of polyester resins also produces the hazards which require great care and caution in its storage, transportation, handling, processing and disposal.
  • Page 10 Mini Link Hydraulic System Operations Manual  Never add MEKP to anything that is hot, since explosive decomposition may result.  Avoid contact with skin, eyes, and clothing. Protective equipment should be worn at all times. During clean-up of spilled MEKP, personal safety equipment, gloves, and eye protection must be worn.
  • Page 11 Mini Link Hydraulic System Operations Manual  The reaction is unpredictable. Prior use of an HHC solvent without incident (corrosion or explosion) does NOT mean that such use is safe. These solvents can be dangerous alone (as a clean-up or flushing agent) or when used as a component or a coating material. There is no known inhibitor that is effective under all circumstances.
  • Page 12 Mini Link Hydraulic System Operations Manual Catalyst Diluents Magnum Venus Products spray-up and gel-coat systems currently produced are designed so that catalyst diluents are not required. Magnum Venus Products therefore recommends that diluents not be used to avoid possible contamination which could lead to an explosion due to the handling and mixing of MEKP and diluents.
  • Page 13 Mini Link Hydraulic System Operations Manual Toxicity of Chemicals  Magnum Venus Products recommends that you consult OSHA Sections 1910.94, 1910.106, 1910.107 and NFPA No.33, Chapter 14, and NFPA No.91.  Contact your chemical supplier(s) and determine the toxicity of the various chemicals used as well as the best methods to prevent injury, irritation and danger to personnel.
  • Page 14 Mini Link Hydraulic System Operations Manual Precautions include: 1. Know precisely what chemicals you are using and obtain information from your chemical supplier on what to do in the event the chemical gets onto your skin or into the eyes, or if swallowed.
  • Page 15: Introduction

    Component Assemblies MVP’s Mini Link Hydraulic System consists of a combination a dispense gun and two metering pumps (either one or a combination of the following: ...
  • Page 16 Mini Link Hydraulic System Operations Manual Ratio Ranges Mini Link Ratio Chart Fixed Fluid Variable Material Ratio Range Output Section Fluid Section High VHPC-1200 1 : 1 4.6 : 1 0.53 – 0.87 GPM (2.0 -2.9 liter) VHPC-1200 VHPC-2200 1.3 : 1 5.8 : 1 0.51 - 0.78 GPM (1.93 -2.38 liter) VHPC-1200...
  • Page 17 Mini Link Hydraulic System Operations Manual Unit Overview – Control Box Control Box Number Description Function Control box main power switch; turns on and off power the Power On/Off Control control box and hydraulic pump/motor Selects between the recirculation and gun mode. In recirculation Mode Selector mode the material is returned to the containers and in gun mode the material is ready to be dispensed through the gun...
  • Page 18: Setting Up The Unit

    Mini Link Hydraulic System Operations Manual Unit Overview – Material Manifold Controls Material Fluid Pressure Gauge – Accumulator Displays the fluid pressure for each of the two components. These are located at the material manifold for each material Safety Relief Valve – Automatically opens to prevent excess fluid pressure.
  • Page 19 Mini Link Hydraulic System Operations Manual 3. Check the hydraulic oil level (pre-filled at the factory) and top off as needed. 4. Connect a power supply. Note The unit is set to either 120 Volt 22 amps or 220 single phase 13.7 amps, according to customer preference.
  • Page 20 Mini Link Hydraulic System Operations Manual 19. Install the ratio block onto the gun head to keep the two materials separate for priming and avoid material waste. 20. Set both pumps for the longest pump stroke for priming. Note If either tank or pump completely runs out of material, never re-prime fluid section with static mixer attached.
  • Page 21: Setting Pump Ratio

    Mini Link Hydraulic System Operations Manual 32. Set the Start/Stop Switch to the START position to start the hydraulic pump and motor. Note By connecting a couple of fittings and some poly tubing via the ratio block to the front of the dispense gun, the two components can be returned to the tanks or source without the risk of contamination.
  • Page 22 Mini Link Hydraulic System Operations Manual Note Some material manufacturers may only give a volumetric ratio rather than weight. In this case if setting the ratio by weight measurement is preferred, you will need the specific gravity of each material to convert the weight to volume in cubic centimeters (cc’s).
  • Page 23: Performing Daily Tasks

    Mini Link Hydraulic System Operations Manual as both needles come off their stops when gravity feeding, proper ball seating should occur. Performing Daily Tasks Daily Start Up 1. Inspect levels of resin, hardener, and solvent to make sure you have enough to begin production;...
  • Page 24 Mini Link Hydraulic System Operations Manual Maintenance 20. Inspect the water trap daily; drain water from the trap as needed. 21. Inspect pump piston shafts daily for material build-up and clean as needed. 22. Check inline filters weekly and clean as needed. 23.
  • Page 25: Setting Pump Sensors

    Mini Link Hydraulic System Operations Manual Setting Pump Sensors The hydraulic cylinder sensor switches have already been set at the factory. In the event that they need to be re-set to factory recommendation, follow these steps: Upper Cap Screw 1. Remove the sensor cover by loosening the two machine screws.
