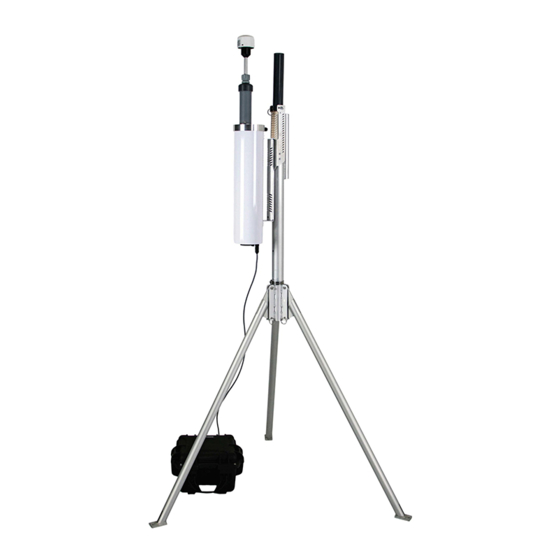

Met One Instruments ES-412 Operation Manual

Particulate profiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Met One Instruments, Inc.
1600 NW Washington Blvd.
Grants Pass, Oregon 97526
Telephone 541-471-7111
Facsimile 541-471-7116
ES-412 Particulate Profiler Operation Manual - © Copyright 2021 Met One Instruments, Inc. All rights reserved
worldwide. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any other language in any form without the written permission of Met One Instruments, Inc.
ES-412
P
ARTICULATE
O
PERATION
R
EVISION
ES-412-9800 Manual Rev A
P
ROFILER
M
ANUAL
A
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-412 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Met One Instruments ES-412

Summary of Contents for Met One Instruments ES-412

  • Page 1 Telephone 541-471-7111 Facsimile 541-471-7116 ES-412 Particulate Profiler Operation Manual - © Copyright 2021 Met One Instruments, Inc. All rights reserved worldwide. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language in any form without the written permission of Met One Instruments, Inc.
  • Page 2 ES-412-9800 Manual Rev A Page 2...

  • Page 3: Table Of Contents

    ES-412 Specifications ........................... 7 ES-412 SETUP and STARTUP ..................8 Standard and Optional Accessories ....................8 Mounting Options ........................... 8 Setting Up the ES-412 ........................10 Electrical Connections ........................11 Power-Up and Starting Operation ..................... 11 DOWNLOADING and VIEWING DATA.................12 Web Interface ............................12 3.1.1...
  • Page 4 Suggested Periodic Maintenance Intervals ..................23 Flow Calibration ........................... 23 Filter Change ............................23 TSP Inlet Cleaning ..........................23 Factory Service Interval ........................23 PARTS and ACCESSORIES...................24 Consumables, Replacement Parts, and Accessories ..............24 ES-412-9800 Manual Rev A Page 4...

  • Page 5: Introduction

    This document is organized with the most important information grouped together for easy reference by the user. All ES-412 owners and operators should read and understand the sections on installation, setup, and field calibrations. Other sections that provide in-depth information on subjects such as theory, diagnostics, accessories, and alternate settings provide valuable information which should be consulted as needed.

  • Page 6: About The Es-412

    Laser Light Scatter System Sample air is drawn into the ES-412 detector chamber and subjected to an intense laser beam located at right angles to the flow. Particles pass through the laser beam and scatter light that is collected by a photodiode detector.

  • Page 7: 412 Specifications

    Always power down the system whenever service or repair work is being performed inside the instrument enclosure. Only trained technicians should attempt to repair the ES-412. Routine maintenance does not require removing the instrument from its weatherproof enclosure. 1.5 ES-412 Specifications...

  • Page 8: 412 Setup And Startup

    2 ES-412 SETUP and STARTUP The ES-412 is designed for rapid deployment and easy setup by a single person in less than 15 minutes in most applications. This section describes the basic assembly, setup, and start-up of the instrument. 2.1 Standard and Optional Accessories When unpacking a new ES-412, verify that the contents are undamaged.
  • Page 9 Make sure the erected tripod is rigid and stable. Detent Pins 2. Lift the ES-412 assembly and slide the slot on the handle of the ES-412 over the tab on the top of the tripod. Insert the supplied ¼-20 bolt through the hole in the body of the tripod into the hole on the bottom of the ES-412 handle.

  • Page 10: Setting Up The Es-412

    1. Install Inlet Tube: Connect the heater power harness to the mating connector coming out of the top of the ES-412. Slip the inlet tube and heater assembly onto the top of the ES-412. Make sure that the inner aluminum inlet tube is seated fully into the receiver inside the top.

  • Page 11: Electrical Connections

    2.5 Power-Up and Starting Operation As soon as power is applied to the ES-412, the unit will automatically begin to sample and report data to the Cloud at the proper interval (15 minutes in the USA standard, 5 minute optional, 60 minutes Global version, 15 minute rate optional).

  • Page 12: Downloading And Viewing Data

    3 DOWNLOADING and VIEWING DATA Currently, Met One offers two options for downloading and viewing the data from an ES-412 system; a web interface and a windows application. This section will cover both options. 3.1 Web Interface The first method for downloading and viewing the data is through the web portal. Each customer will be sent a private link to a custom dashboard in which users can view, chart, and download/export their data.

  • Page 13: Data Retention

    3.2 Comet Software The ES-412 is compatible with the free copy of the Comet™ program. Comet is a simple, Windows- based, communications terminal program developed by Met One Instruments, Inc. Comet allows the user to connect to the cloud and download the data from each cloud service webpage.

  • Page 14: Comet Installation

    Download the Comet software onto a PC and run the Windows Installer Package. Follow the on- screen instructions until Comet is successfully installed, then run it from the Programs directory. Create a new station for the ES-412 and use it to retrieve the data from the monitor. 3.2.2 Setting up a Cloud Station The first time the Comet program is opened it prompts the user to create a new station for your Cloud site.
  • Page 15 Select the Met One Cloud Product Type and click next. Enter a Station ID, API key, and Serial Number for the ES-412. Note: Customers will receive an API on the provided configuration sheet; a digital copy can be obtained from the Met One Instruments Service department.

  • Page 16: Data Plans And Renewals

    When Comet downloads the data, a CSV file is created in the users My Documents folder. 4 DATA PLANS AND RENEWALS The ES-412 includes three years of cellular data and website hosting at no extra charge. The cloud service can be renewed by contacting the Met One Service department at service@metone.com 541-471-7111.

  • Page 17: Serial Communications

    Pressing <Esc>, X<cr> or Q<cr> will exit user mode Note: After a few minutes, the ES-412 will stop waiting for a command and you will have to send another series of three carriage returns to reestablish the command prompt connection.

  • Page 18: Checksum Computation

    RO 11 = Flow, Temperature, RH Request last reading. Get product information. Get/Set serial baud rate. 3=2400, 4=4800, 5=9600, 6=19200, 7=38400,8=57600,9=115200. Set PM K Factors. K Factor range is 0.1-20.0. PM2.5=1, PM10=2 RH Setpoint to turn inlet heater on. ES-412-9800 Manual Rev A Page 18...

  • Page 19: Serial Command Explanations

    This is used to set the K factors for each PM size. PM2.5=1, PM10=2. It is entered as SK (PM#) (K factor). A typical command and response for each PM size is as follows. *SK 1 2.70 SK 2,2.70,PM2.5 *SK 2 2.16 SK 2,2.16,PM10 ES-412-9800 Manual Rev A Page 19...

  • Page 20: 412 Measurement Method

    Sample air is drawn into the ES-412 by an internal pump. Flow rate is controlled with a flow sensor to maintain constant 1 LPM flow on the inlet nozzle. Additional air is added around the sample flow to contain the particles.

  • Page 21: Sample Rh Control For Light Scatter Mass

    24-hour data. Calculate the K-Factor for each particulate size fraction as the reference concentration divided by the ES-412 light scatter concentration over the same time period. For example, if the reference total concentration was 51 μg/m and the ES-412 total concentration was 38 μg/m , then the K-Factor would be 51 divided by 38 or 1.342.

  • Page 22: Maintenance And Troubleshooting

    The ES-412 Particle Profiler should be calibrated on a 24-month basis. Basic Problem and Cause/Solution Table The following table contains information on some of the more common ES-412 problems which may be encountered, and some steps to identify and remedy the problems. Met One welcomes customer suggestions for new items to include in this section of future manual revisions.

  • Page 23: Suggested Periodic Maintenance Intervals

    7.6 Factory Service Interval The ES-412 needs to be periodically returned to the factory for service and recalibration. The recommended period is 24 months during continuous use. However, some users establish their own interval depending on the harshness of the sampling conditions, particulate levels, and data scrutiny.

  • Page 24: Parts And Accessories

    Weatherproof USB Cable, Type A to Mini B Male 500787 Solar Power Kit, 160W, 3.7 minimum PSH 730139 Solar Power Kit, 240W, 2.5 minimum PSH 730140 ES-412 Factory Service and Recalibration Call Met One ES-412-9800 Manual Rev A Page 24...
