- Page 1 Met Station One Quick Reference Guide Rev B Met One Instruments, Inc 1600 NW Washington Blvd. Grants Pass, OR 97526 Telephone: (541) 471-7111 Facsimile: (541) 471-7116 www.metone.com...

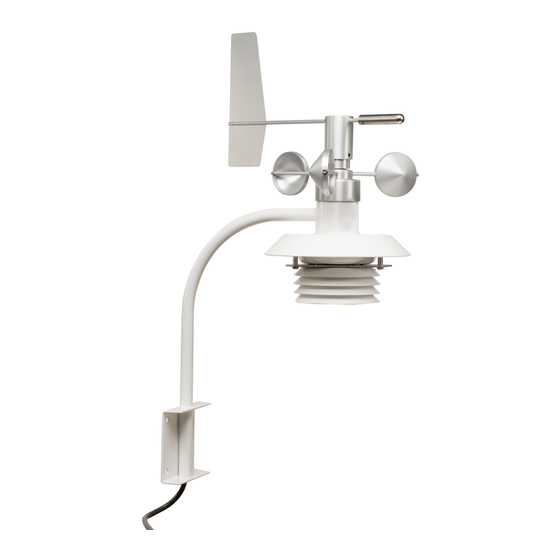

- Page 2 Measurements Wind Speed and Wind Direction The Met Station One (MSO) uses a three cup anemometer and lightweight vane tail to accurately measure the speed and direction of the wind. The rotation of the cups and vane are converted to electrical signals which are directly proportional to Wind Speed and Direction.
- Page 3 Met Station One Easy Installation Siting • Find suitable location within cable length of recording electronics / display. • Locate true north. Mounting • Use quick mount u-bolts to install on vertical or horizontal mast, pole or pipe. • Tighten nuts, keeping sensor level. Direction Alignment •...
- Page 4 Run cable to recorder or computer and connect using the following wiring: Wiring • +10 TO +36 VOLTS DC, 7mA@12V typical • POWER COMMON • RS-232 TX (MSO-232) OR RS-485+ (MSO-485) • RS-232 RX (MSO-232) OR RS-485- (MSO-485) • SIGNAL COMMON • SDI-12 •...
