Non-Ferrous Sensing Prox
Non-Ferrous Detecting Proximity
Sensor with Separate, Teaching
Amplifier Features Simple Setup for
Accurate, Reliable Sensing
Detects only non-ferrous metals like
H
aluminum, copper and brass
Three teaching modes and one
H
automatic mode for easy setup
Three sensor heads to fit most
H
mounting requirements
Sensitivity can be easily monitored
H
using indicators on amplifier
Ordering Information
J SENSOR HEADS
Appearance
Shielded
M5
8 dia.
Flat model
Specifications
J RATINGS/CHARACTERISTICS
Sensor Heads
Part number
Target object
Standard target object
Stable sensing distance
Response frequency
Ambient temperature
Influence of temperature on
sensing distance (at 23°C)
g
(
)
R
Stable sensing distance
Part number
E2CY-X1R5A
1.5 mm
2.0 mm
E2CY-C2A
E2CY-V3A
3.0 mm
E2CY-X1R5A
Non-ferrous metal
Aluminum: 8 x 8 x 1 mm
0 to 1.5 mm
40 Hz min. (with Amplifier Unit fine-tuned), 100 Hz min. (with Amplifier Unit set to
NORM mode)
Operating
- -10°C to 55°C (14°F to 131°F) with no icing
- -10°C to 55°C
±15% max.
(14°F to 131°F)
0°C to 40°C
±10% max.
(32°F to 104°F)
(This table continues on the next page.)
J AMPLIFIER UNIT
Part number
E2CY-T11
E2CY-C2A
E2CY-V3A
Aluminum: 8 x 8 x 1 mm
Aluminum: 12 x 12 x 1 mm
0 to 2.0 mm
0 to 3.0 mm
±10% max.
±15% max.
±10% max.
E2CY
Advertisement
Table of Contents
Related Manuals for Omron E2CY
Summary of Contents for Omron E2CY

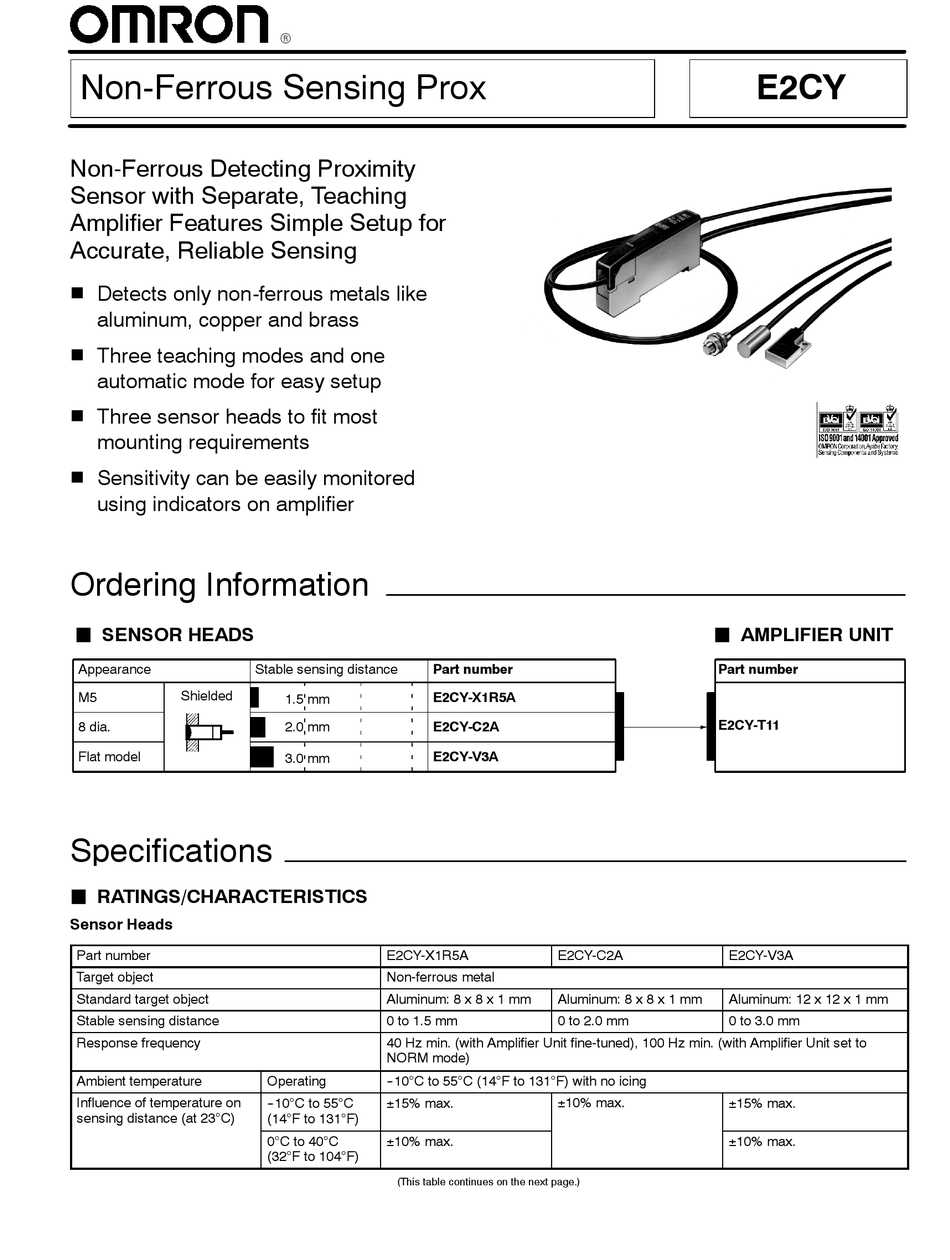

- Page 1 Non-Ferrous Sensing Prox E2CY Non-Ferrous Detecting Proximity Sensor with Separate, Teaching Amplifier Features Simple Setup for Accurate, Reliable Sensing Detects only non-ferrous metals like aluminum, copper and brass Three teaching modes and one automatic mode for easy setup Three sensor heads to fit most...
-
Page 2: Amplifier Unit
E2CY E2CY Specifications Table - - continued from previous page Part number E2CY-X1R5A E2CY-C2A E2CY-V3A Ambient humidity Operating 35% to 95% Vibration resistance Destruction: 10 to 500 Hz, 2.0-mm double amplitude or 150 m/s (approx. 15G) for 2 hours each in X, Y, and Z directions... -
Page 3: Operation
The E2CY is used as a normal proximity sensor. Teaching with or without the sensing • The E2CY is used for detecting the difference in target object level. object • The E2CY is used for discriminating types of target objects. - Page 4 Head. Note: After the E2CY is set to RUN mode, approximately 1.5 s will be required until the sensitivity is set from the moment the first target object passes the sensing position. Therefore, move the next target object so that it passes through the sensing position 1.5 s after the first target object passes the sensing position.
- Page 5 E2CY E2CY Teaching With and Without Target Object (Level Difference Detection) Status of target object Control panel Indicators Step 1 (Excess gain level indicators) Set the operation Sensor Sensor Head Head side mode selector to T. Press the TEACH button after locating...
- Page 6 E2CY E2CY Teaching With and Without Target Object (Located within Certain Range) Status of target object Control panel Indicators Step 1 (Excess gain level indicators) Set the operation Sensor Head side mode selector to T. Sensor Head Press the TEACH...
- Page 7 No good Note: If the operation mode selector is set to AUTO when the E2CY is turned ON, the E2CY will make sensitivity adjustments automati- cally. To maintain the sensitivity after adjustment, be sure to set the operation mode selector to RUN.
-
Page 8: Engineering Data
E2CY E2CY Engineering Data J OPERATING RANGE (TYPICAL) E2CY-X1R5A E2CY-C2A Target object: Target object: Aluminum 8 x 8 x 1 mm Aluminum 8 x 8 x 1 mm Sensing distance (vari- Sensing distance (vari- able): 0.15 to 1.5 mm able): 0.2 to 2.0 mm... - Page 9 E2CY E2CY J SENSING DISTANCE VS. SENSING OBJECT SIZE AND MATERIAL (TYPICAL) E2CY-X1R5A E2CY-C2A Aluminum, Aluminum, brass, and brass, and copper copper Stainless Stainless steel (SUS304) steel (SUS304) Target object size d (mm) Target object size d (mm) E2CY-V3A Aluminum,...
- Page 10 E2CY E2CY E2CY-V3A Sensitivity adjustment: 120% Sensitivity adjustment: 100% Ambient temperature (°C) Dimensions Unit: mm (inch) J SENSOR HEADS E2CY-X1R5A Vinyl-insulated round coaxial cable with (0.71) 2.5 dia. (28/0.08) with a single conductor Standard length: 3 m (0.59) (0.31) Two, nuts...
- Page 11 The self-diagnostic output will turn ON if excessive current flows to the load due to load wire short-circuiting. 4. Internal memory error When the E2CY is turned ON in RUN or TEACH mode, the self-diagnostic output will turn ON if the teaching status of the E2CY is not stored properly in the internal memory.
-
Page 12: Installation
E2CY E2CY J INDICATORS Operation Indicator (Orange) The operating indicator will turn ON when the control output is ON. Excess Gain Level Indicators (Green and Orange) The excess gain level indicators will be ON according to the distance of the target object as shown below. -
Page 13: Incorrect Wiring
Load Short-circuit Do not short-circuit the load. Brown Load The load short-circuit protection function is triggered provided Blue Sensor that power within the rated voltage range is supplied to the E2CY without a mistake in polarity. Black Brown Load Black Sensor... - Page 14 J SELF-DIAGNOSTIC OUTPUT AND INDICATORS If one of the following errors result, the user can find the errors using the self-diagnostic output and indicators of the E2CY. If the self-diagnostic output line is short-circuited, however, self-diagnostic output will not be available.
- Page 15 1. Place the front part of the Amplifier Unit on the mounting J PROCESSING THE SENSOR CABLE bracket provided with the E2CY or the DIN track so that the ENDS front part will engage with the mounting bracket or DIN track.
- Page 16 NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4. OMRON ON- -LINE OMRON ELECTRONICS LLC OMRON CANADA, INC. One East Commerce Drive 885 Milner Avenue Global - - http://www.omron.com Schaumburg, IL 60173 Scarborough, Ontario M1B 5V8 USA - - http://www.omron.com/oei 1-800-55-OMRON 416-286-6465 Canada - - http://www.omron.com/oci...
